Starter Relay: Eclipse

For starter relay location and testing, see Fig 1 .

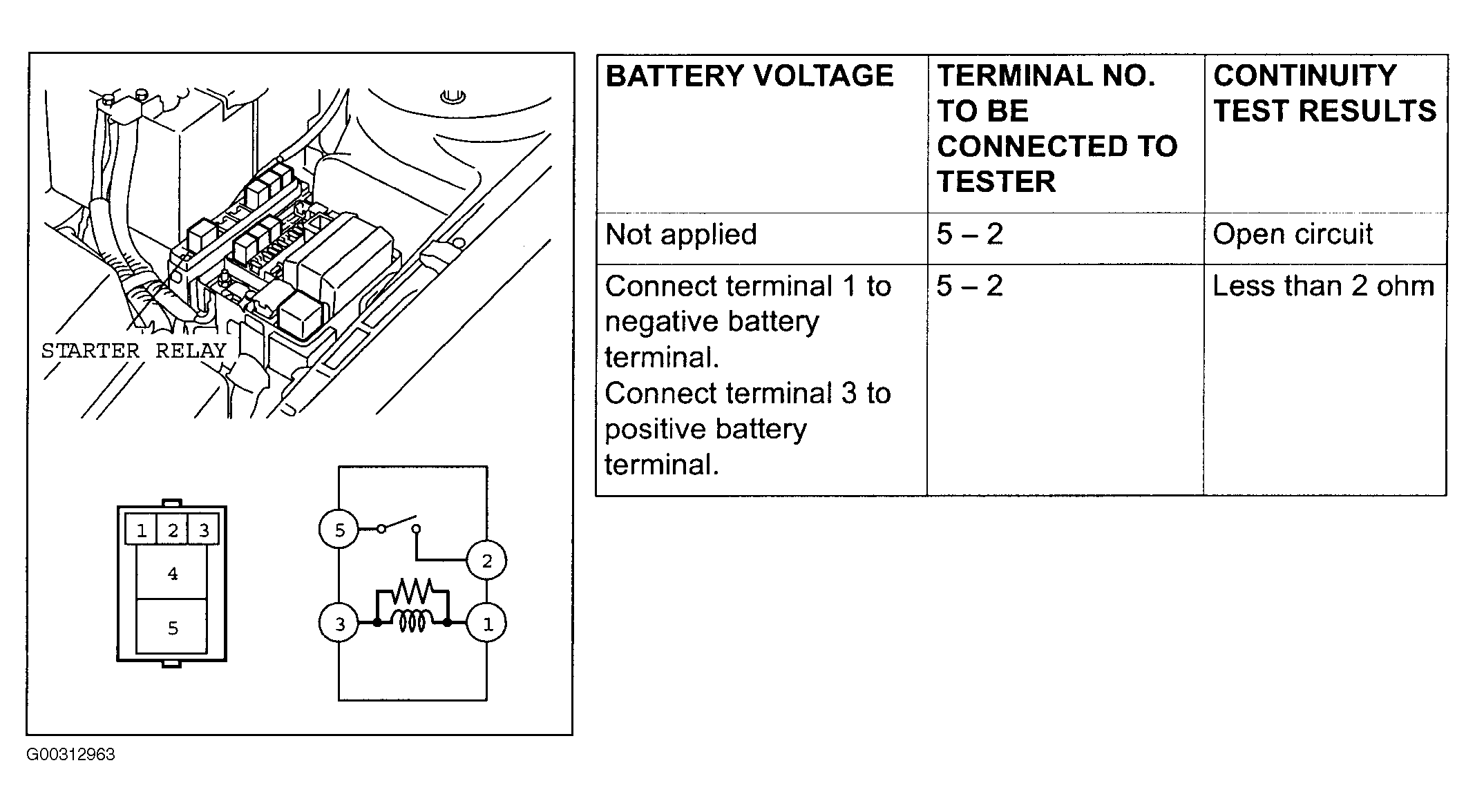

Fig 1: Locating & Testing Starter Relay (Eclipse)

G00312963

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
