Starter Relay: Lancer

For starter relay location and testing, see Fig 1 .

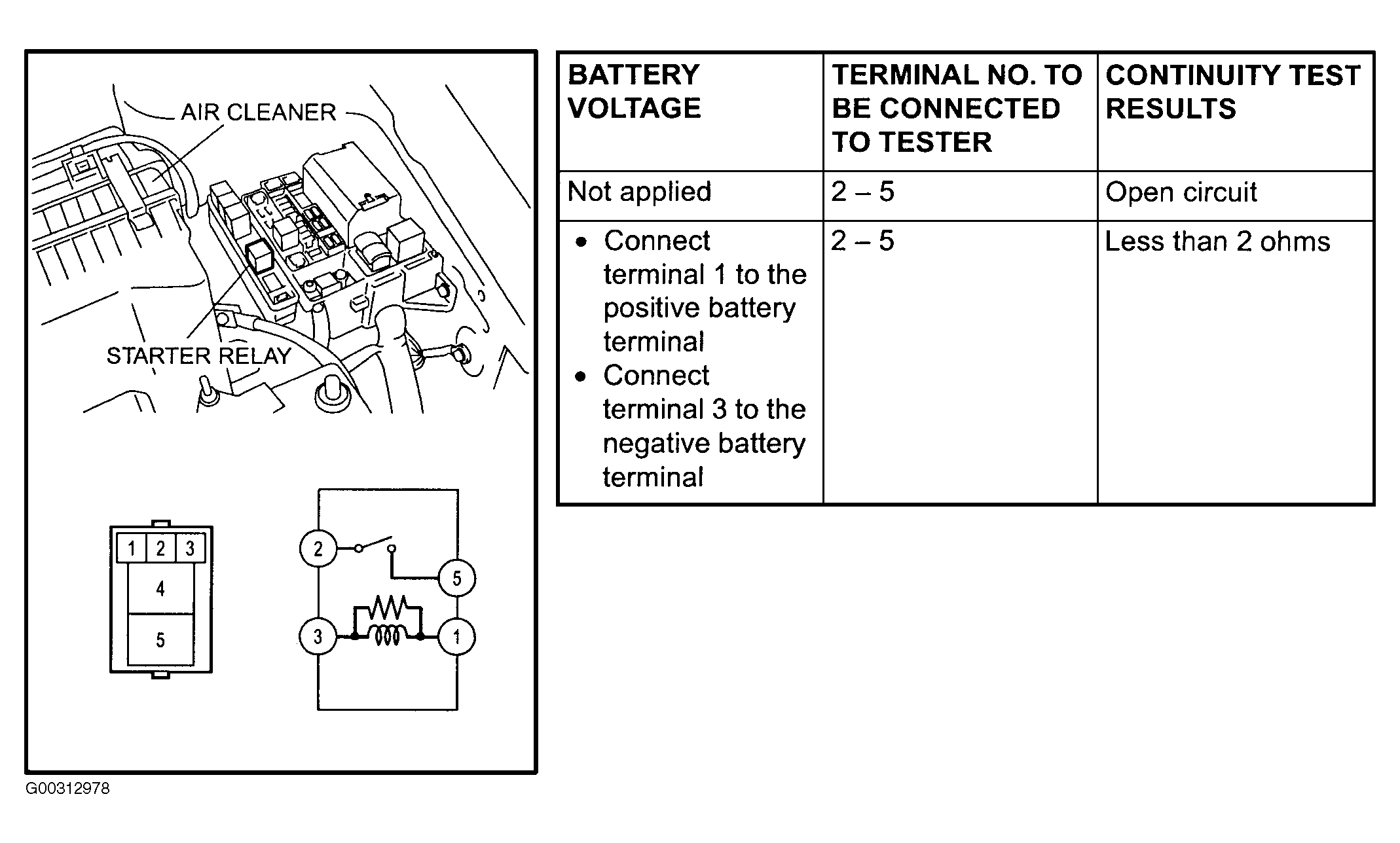

Fig 1: Locating & Testing Starter Relay (Lancer)

G00312978

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
