Starter Relay: Mirage

Remove starter relay. See Fig 1 . Connect positive ohmmeter lead to terminal No. 4. Connect negative ohmmeter lead to terminal No. 2. Continuity should exist. Connect positive ohmmeter lead to terminal No. 2. Connect negative ohmmeter lead to terminal No. 4. Continuity should not exist. If continuity is not as specified, replace relay.

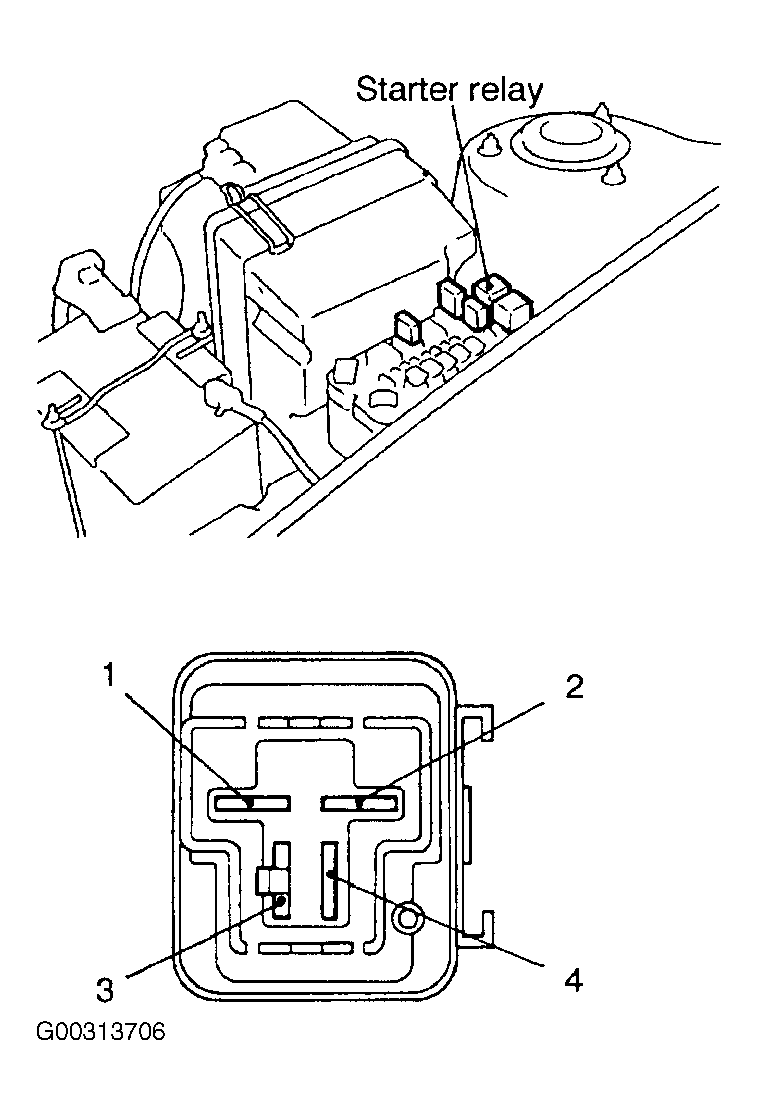

Fig 1: Locating Starter Relay & Identifying Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
