Component Locations

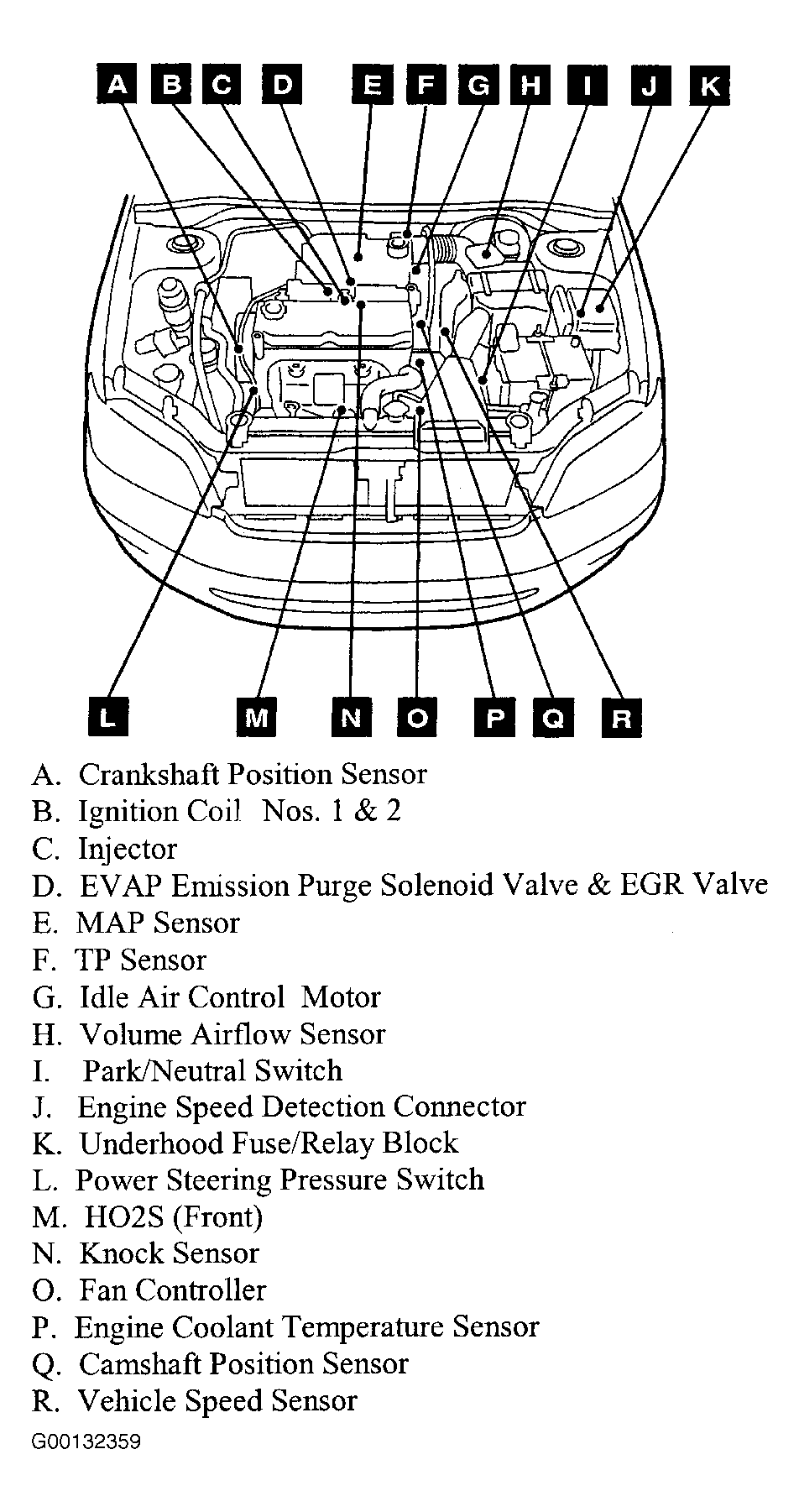

Fig 1: Underhood Component Locations

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

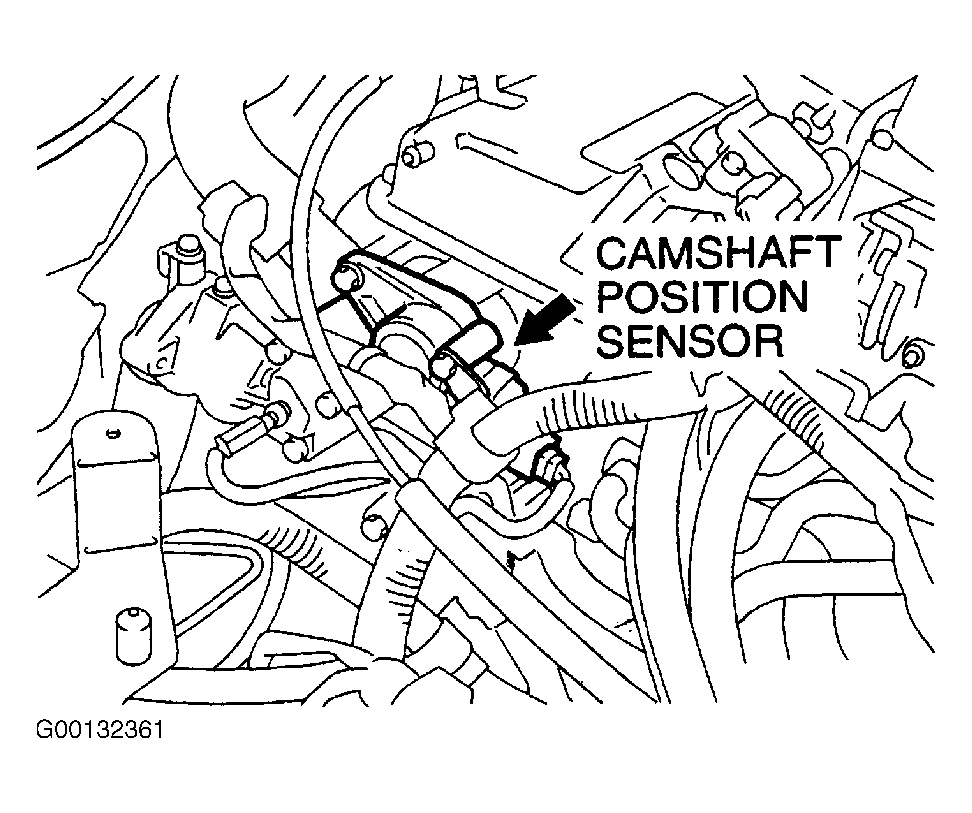

Fig 2: Locating Camshaft Position Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

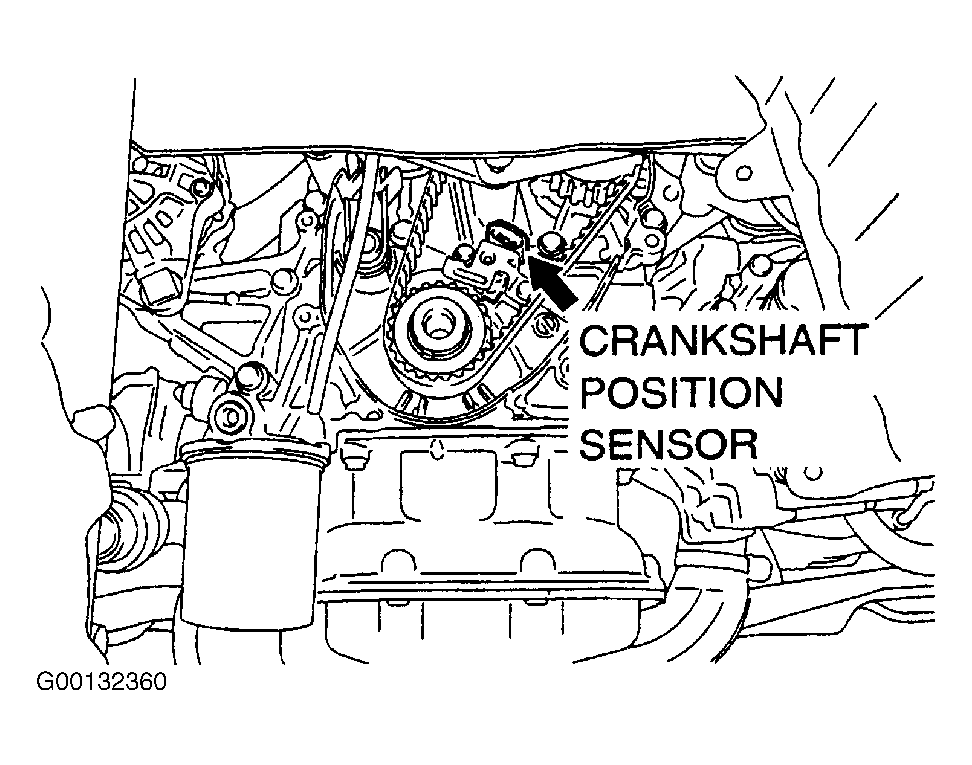

Fig 3: Locating Crankshaft Position Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

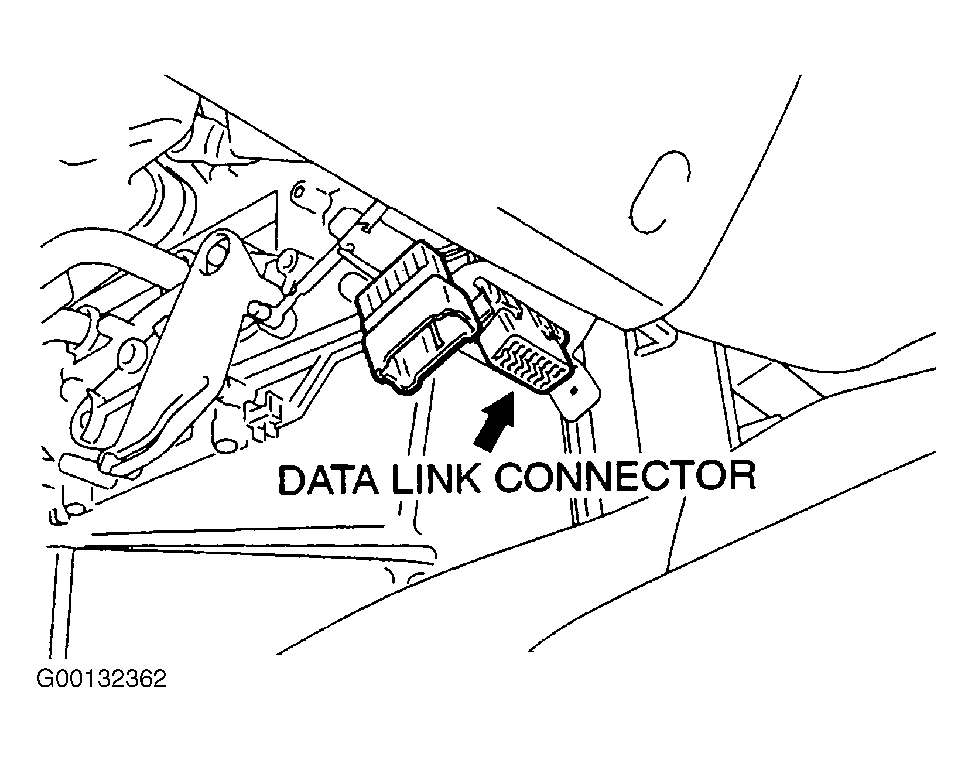

Fig 4: Locating Data Link Connector (DLC)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

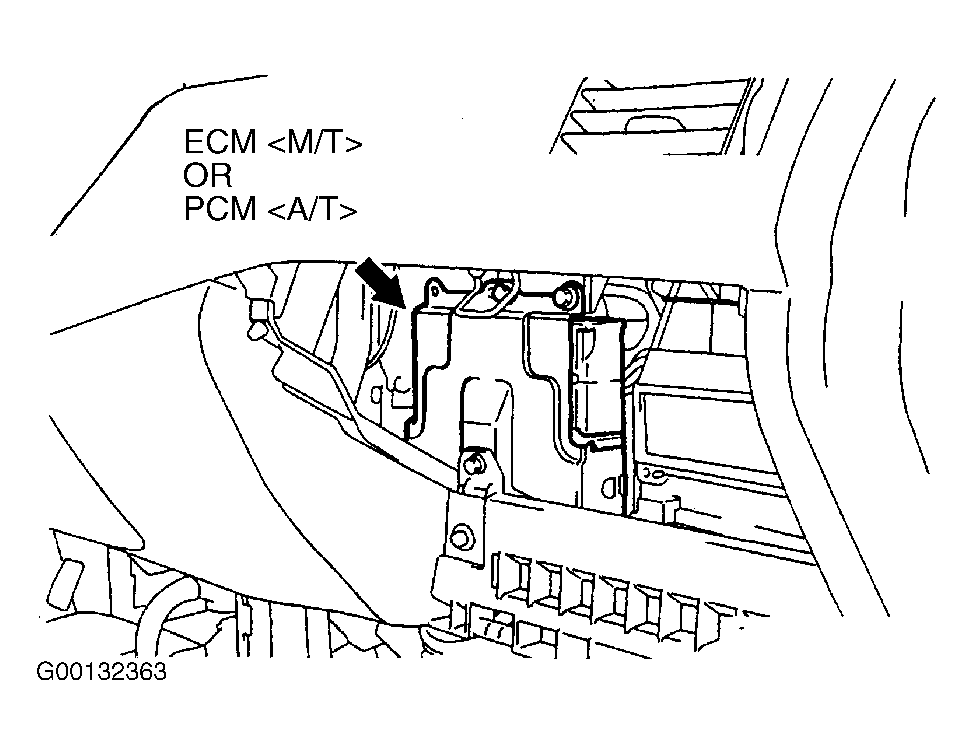

Fig 5: Locating ECM Or PCM

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

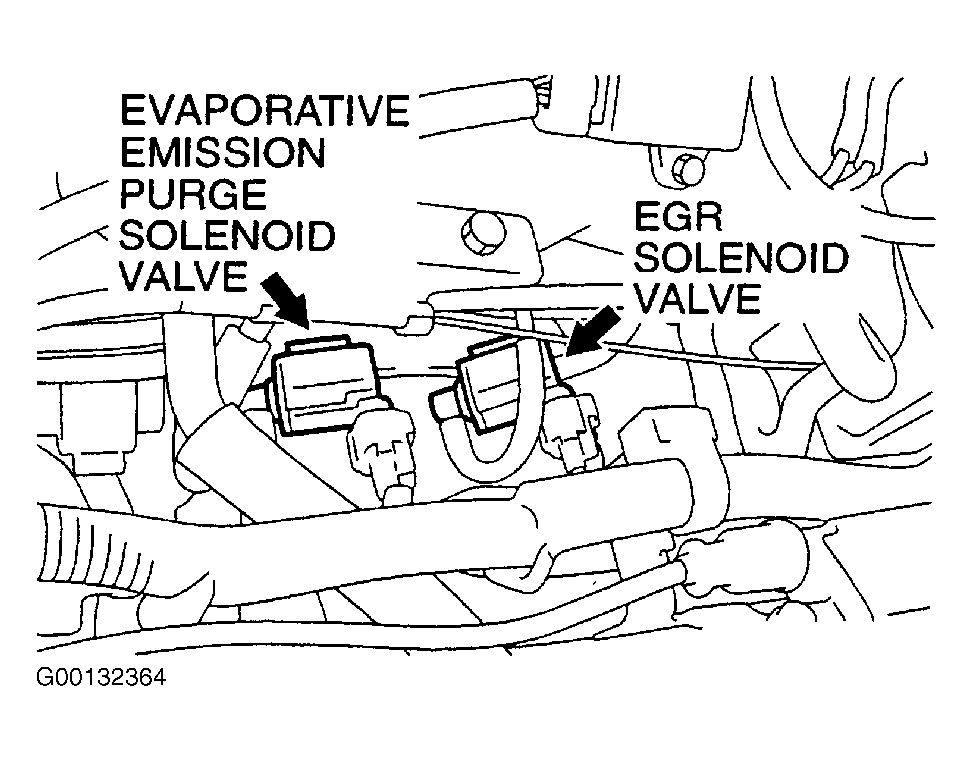

Fig 6: Locating EGR Solenoid Valve & EVAP Emission Purge Solenoid Valve

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

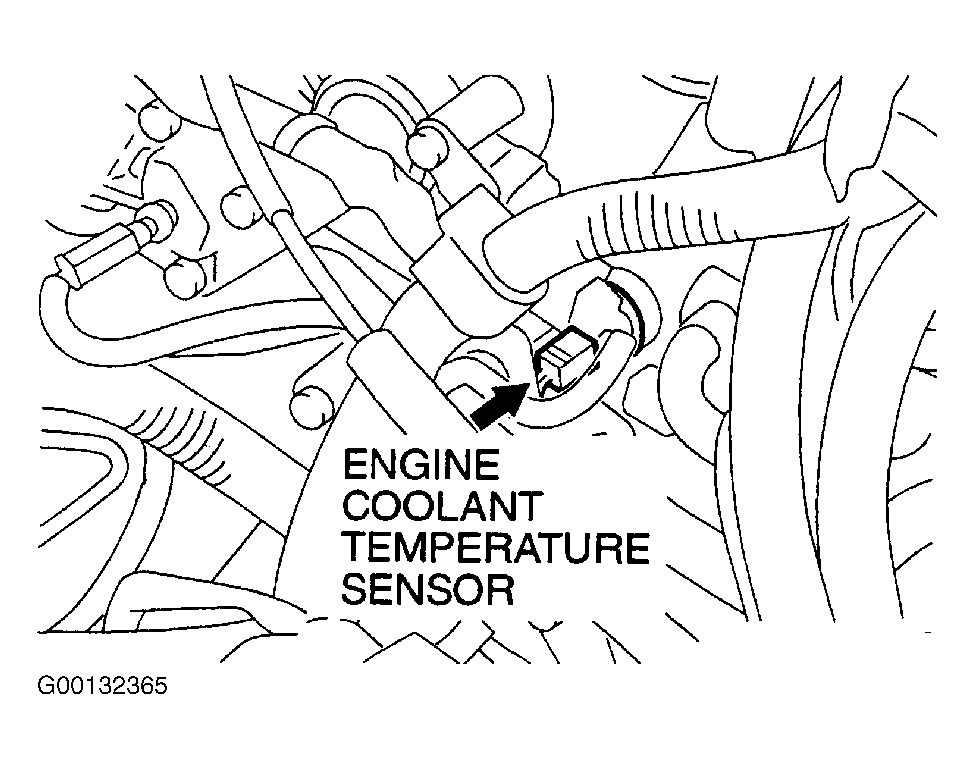

Fig 7: Locating Engine Coolant Temperature Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

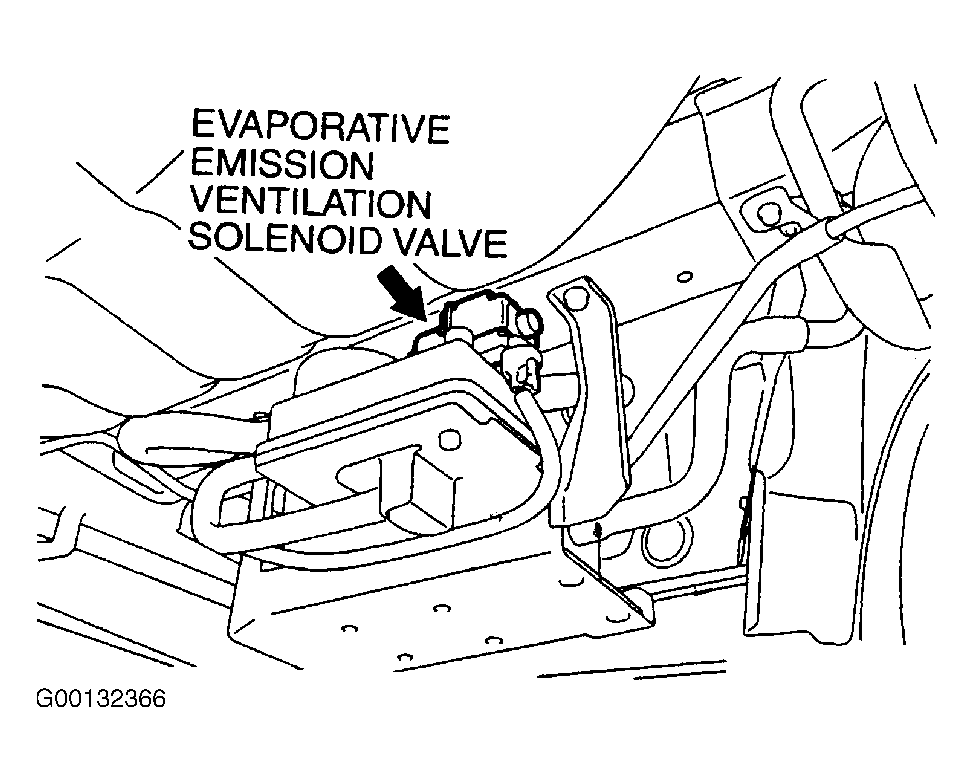

Fig 8: Locating EVAP Emission Ventilation Solenoid Valve

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

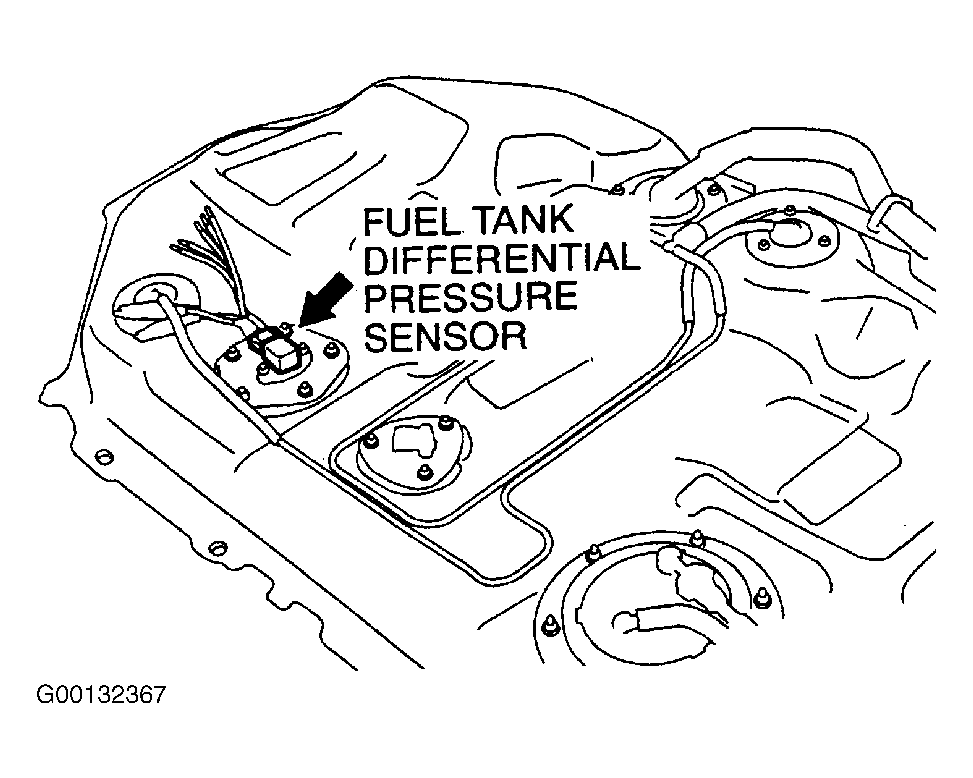

Fig 9: Locating Fuel Tank Differential Pressure Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

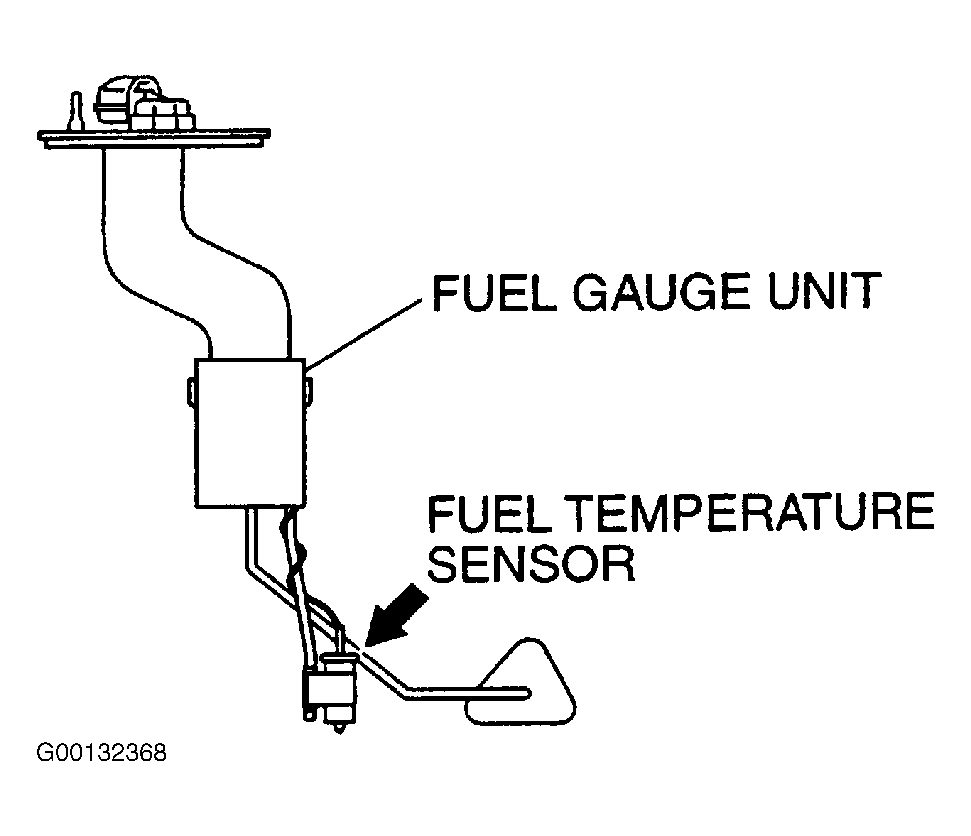

Fig 10: Locating Fuel Temperature Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

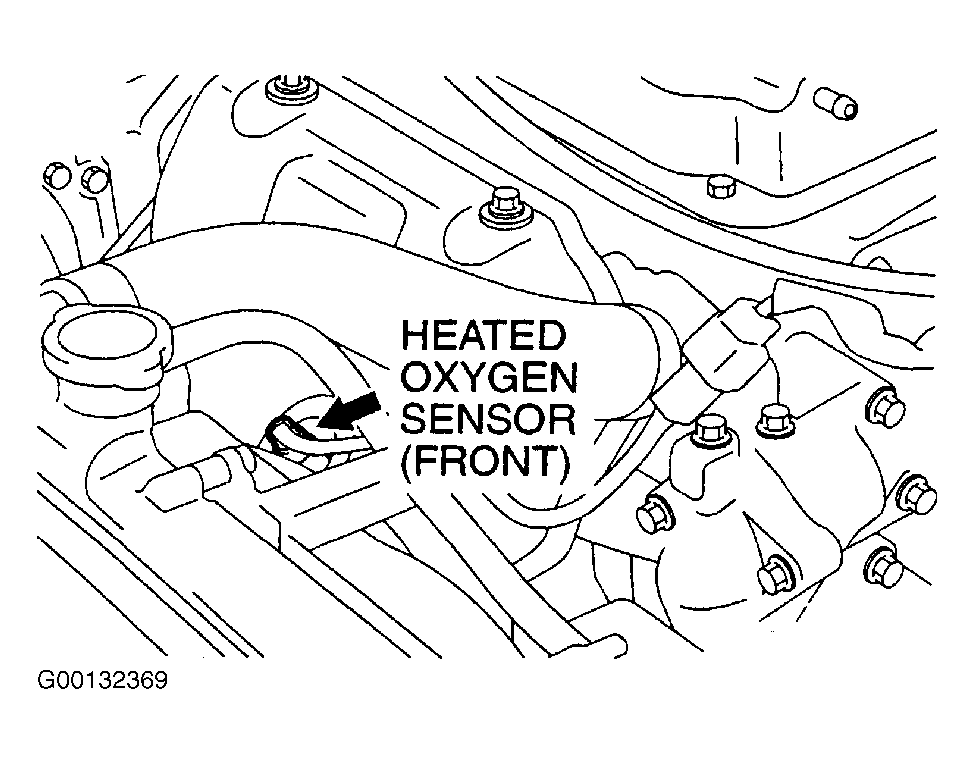

Fig 11: Locating Heated Oxygen Sensor (Front)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

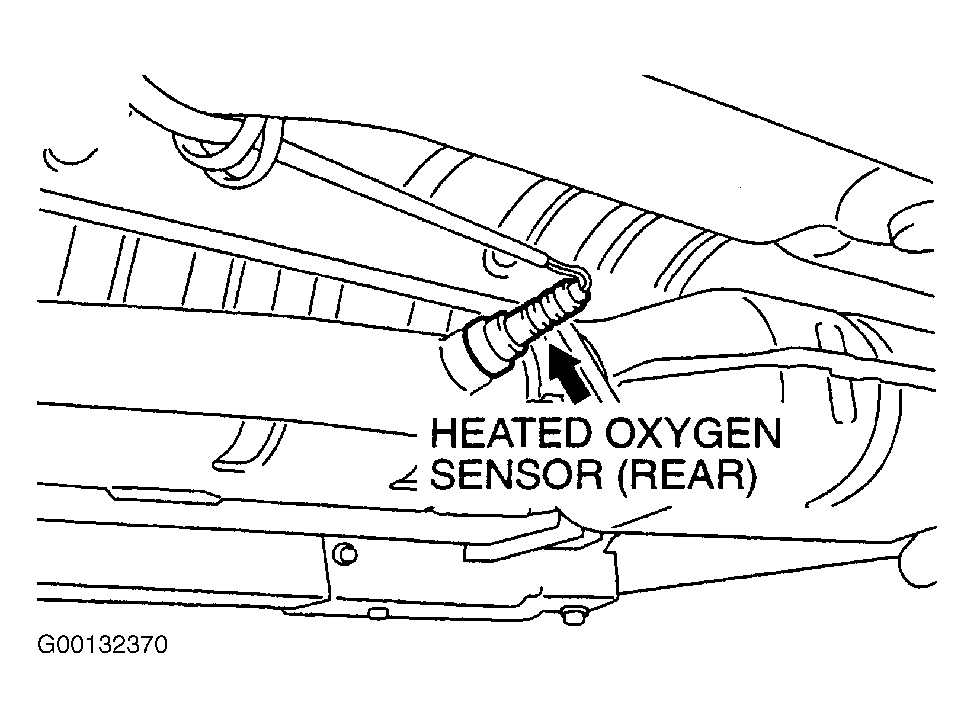

Fig 12: Locating Heated Oxygen Sensor (Rear)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

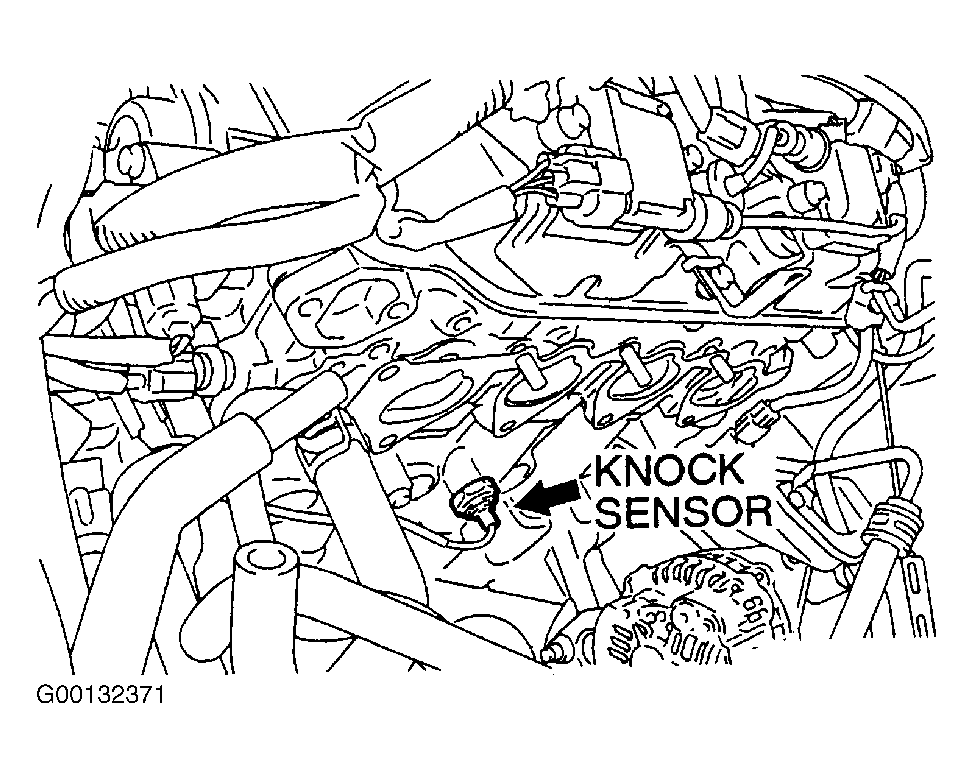

Fig 13: Locating Knock Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

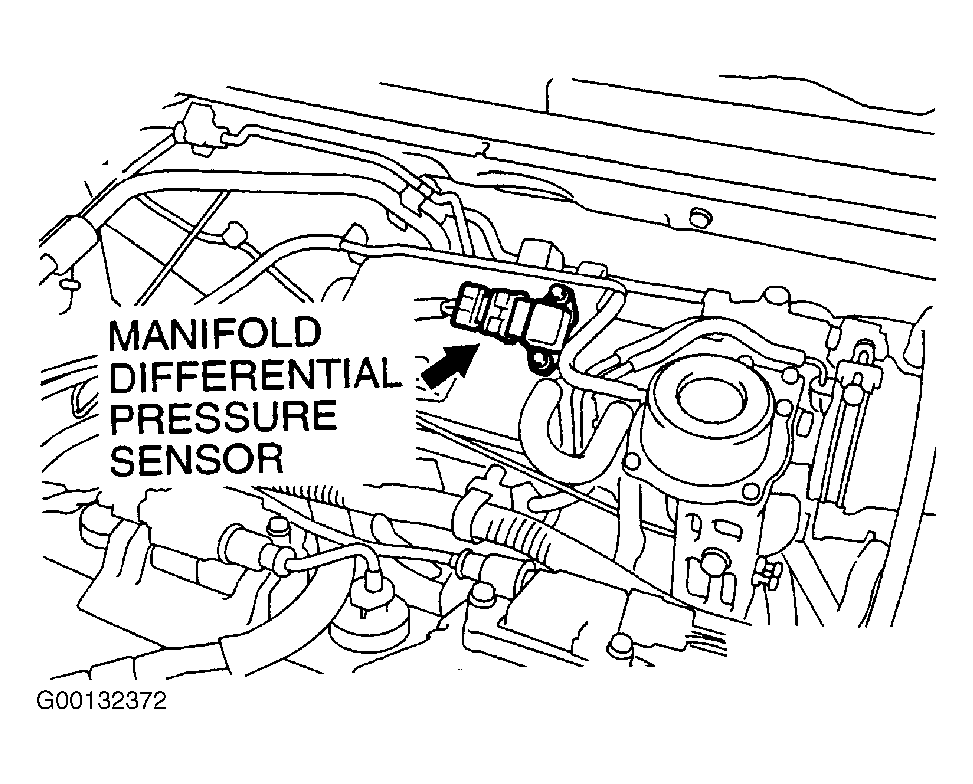

Fig 14: Locating Manifold Differential Pressure Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

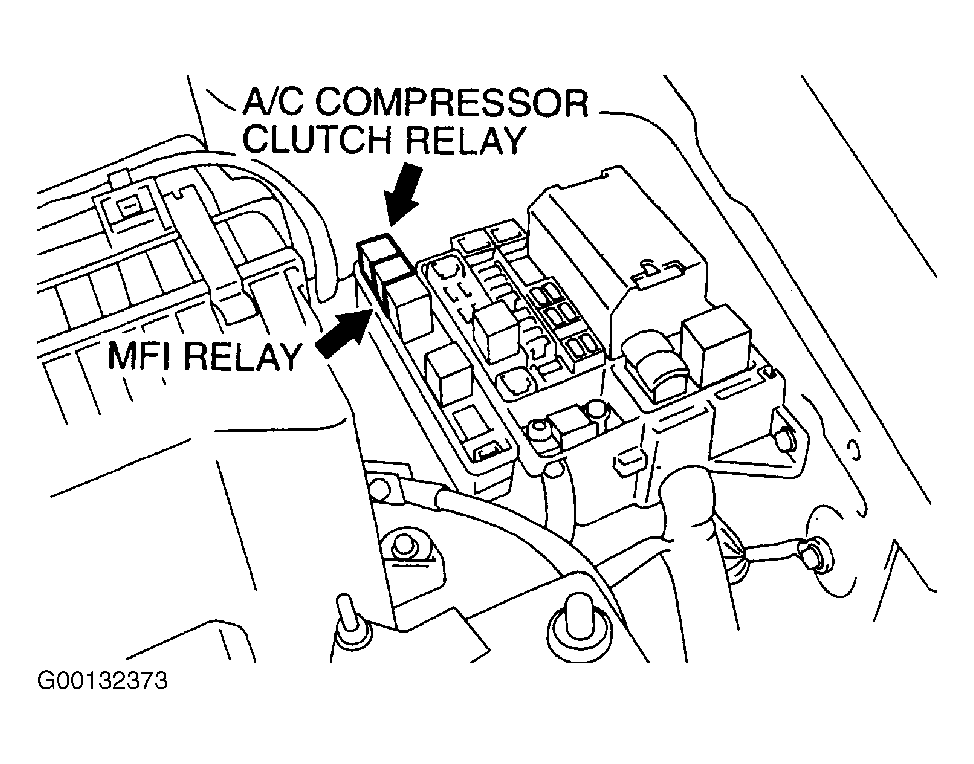

Fig 15: Locating MFI Relay

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

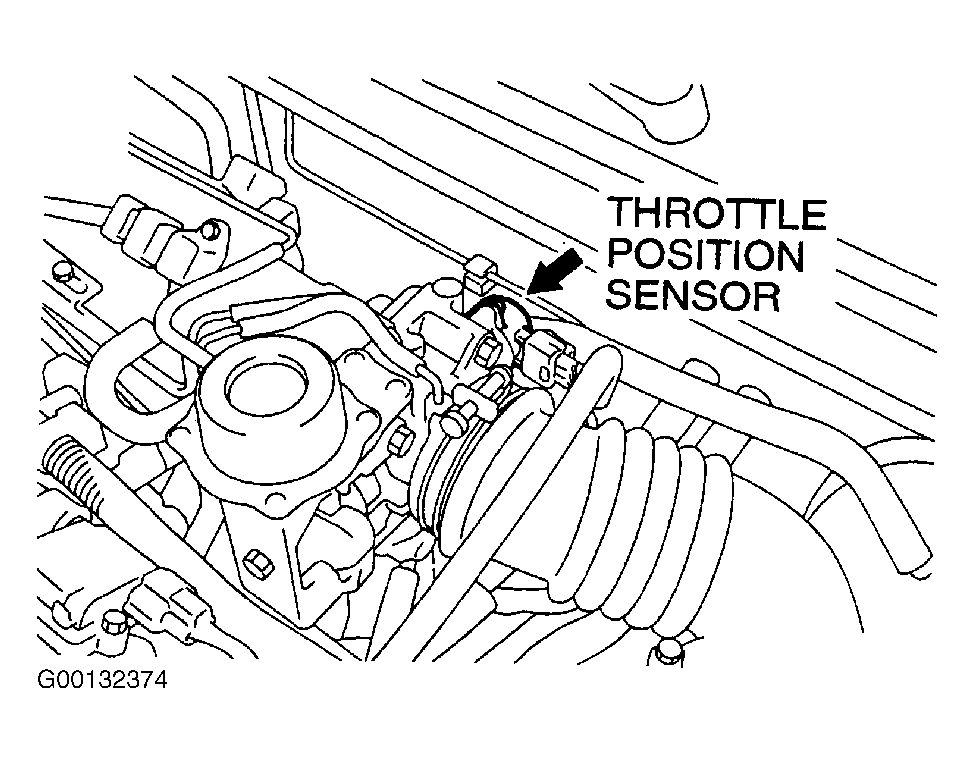

Fig 16: Locating Throttle Position Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

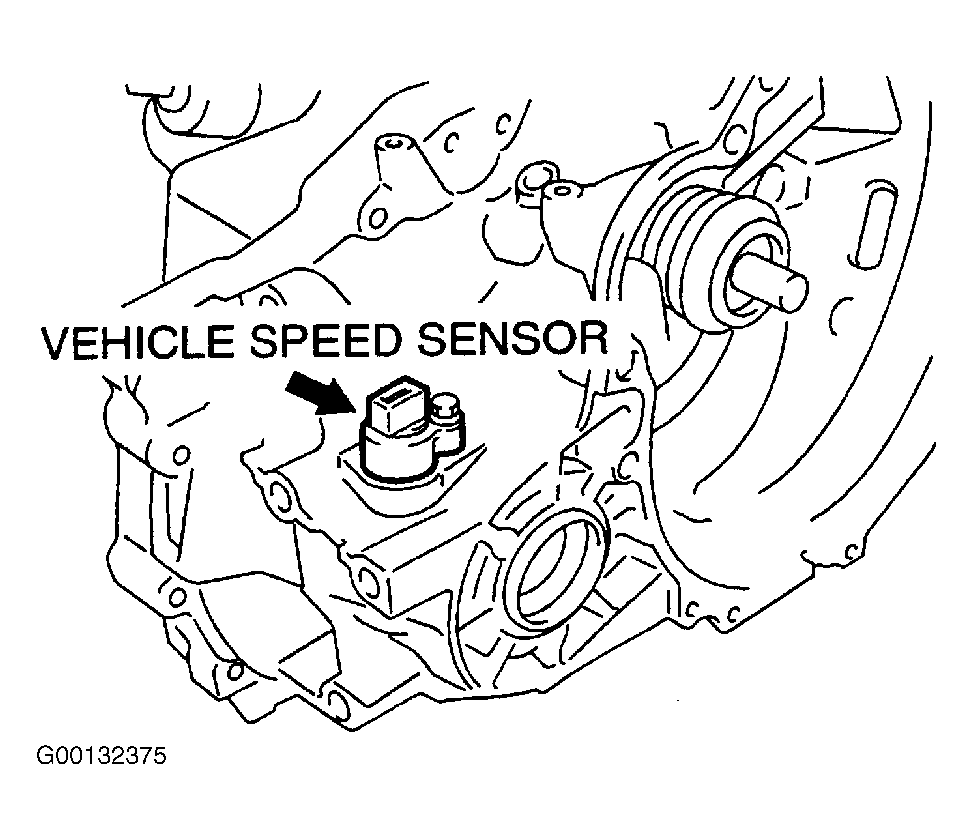

Fig 17: Locating Vehicle Speed Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

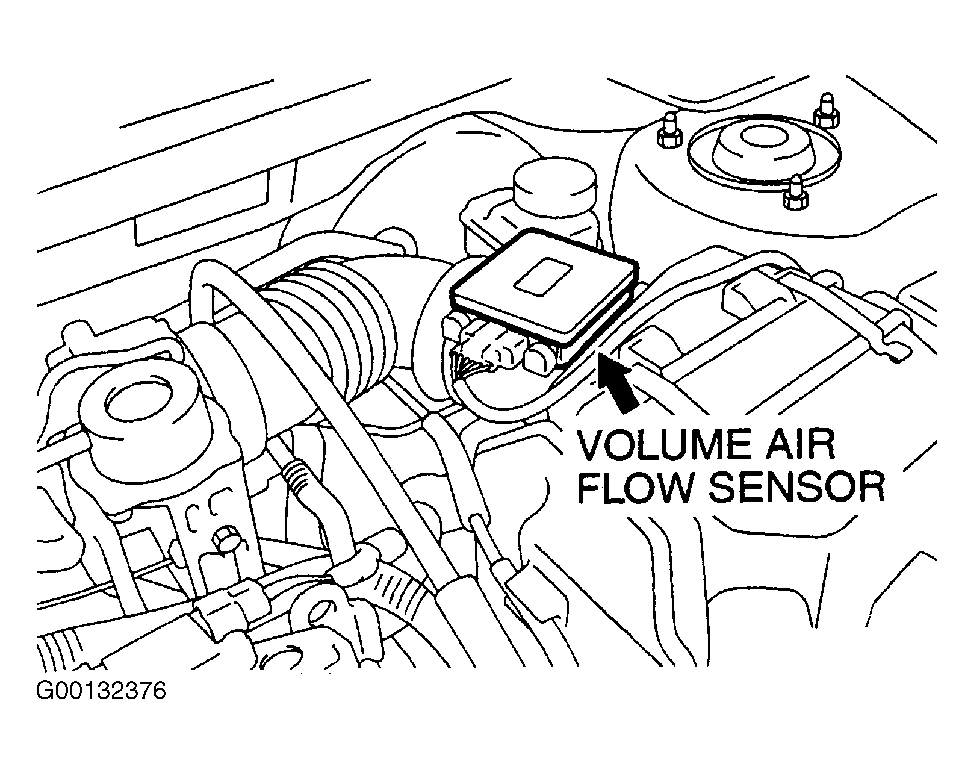

Fig 18: Locating Volume Airflow Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
