Home >> Mitsubishi >> 2002 >> Lancer LS >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Self-Diagnostics >> Diagnostic Tests >> DTC P0121: Throttle Position Sensor Circuit Range/Performance Problem >> Notes

DTC P0121: Throttle Position Sensor Circuit Range/Performance Problem: Notes

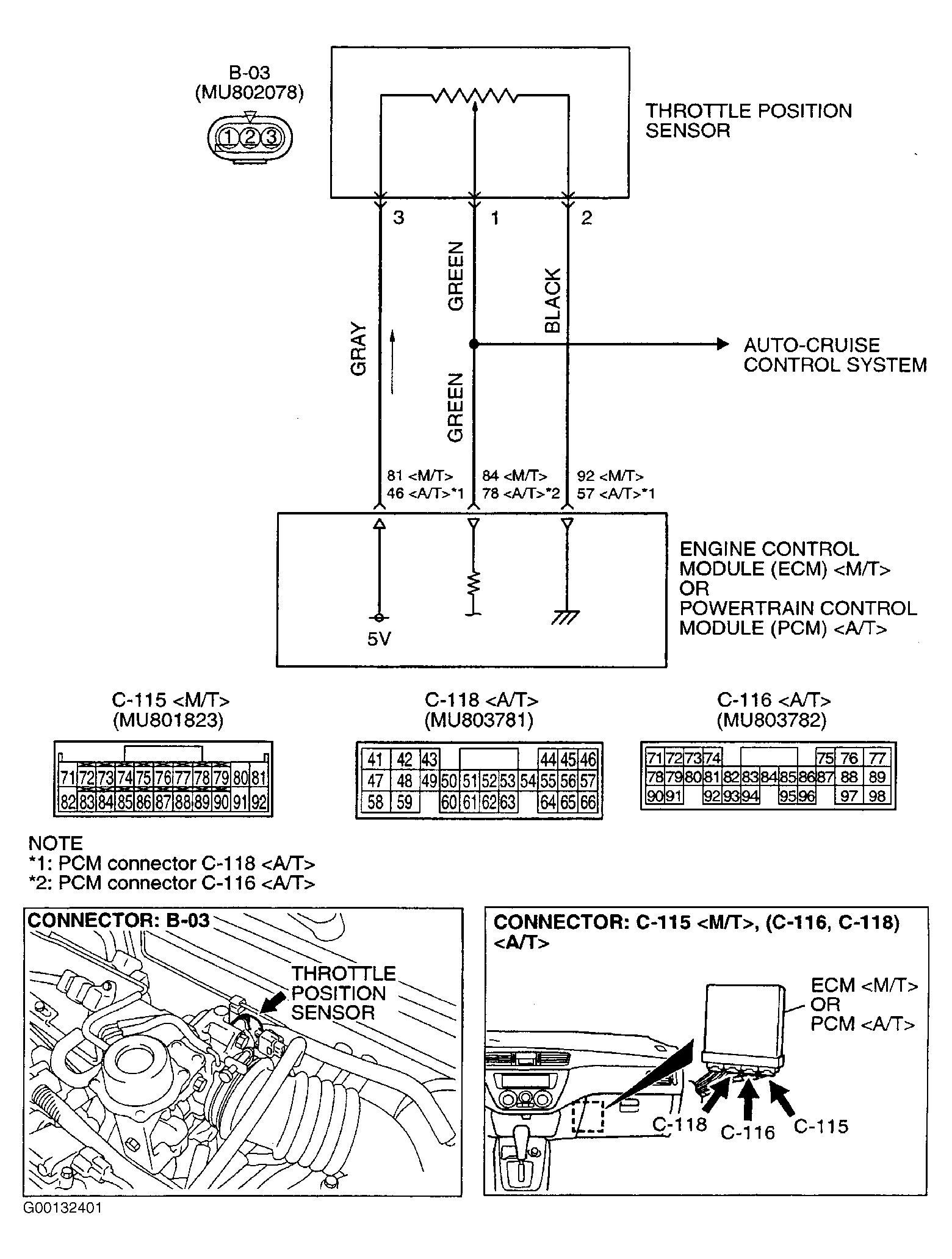

Fig 1: Identifying Throttle Position Sensor Circuit, Component & Connector Location
G00132401Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
