Home >> Mitsubishi >> 2004 >> Lancer Evolution >> Repair and Diagnosis >> Engine Performance >> Ignition System - Evolution >> Crankshaft Position Sensor >> Removal And Installation >> Notes

Removal And Installation: Notes

CAUTION: During maintenance, take care not to contact the parts or tools to the caliper because the paint of caliper will be scratched.

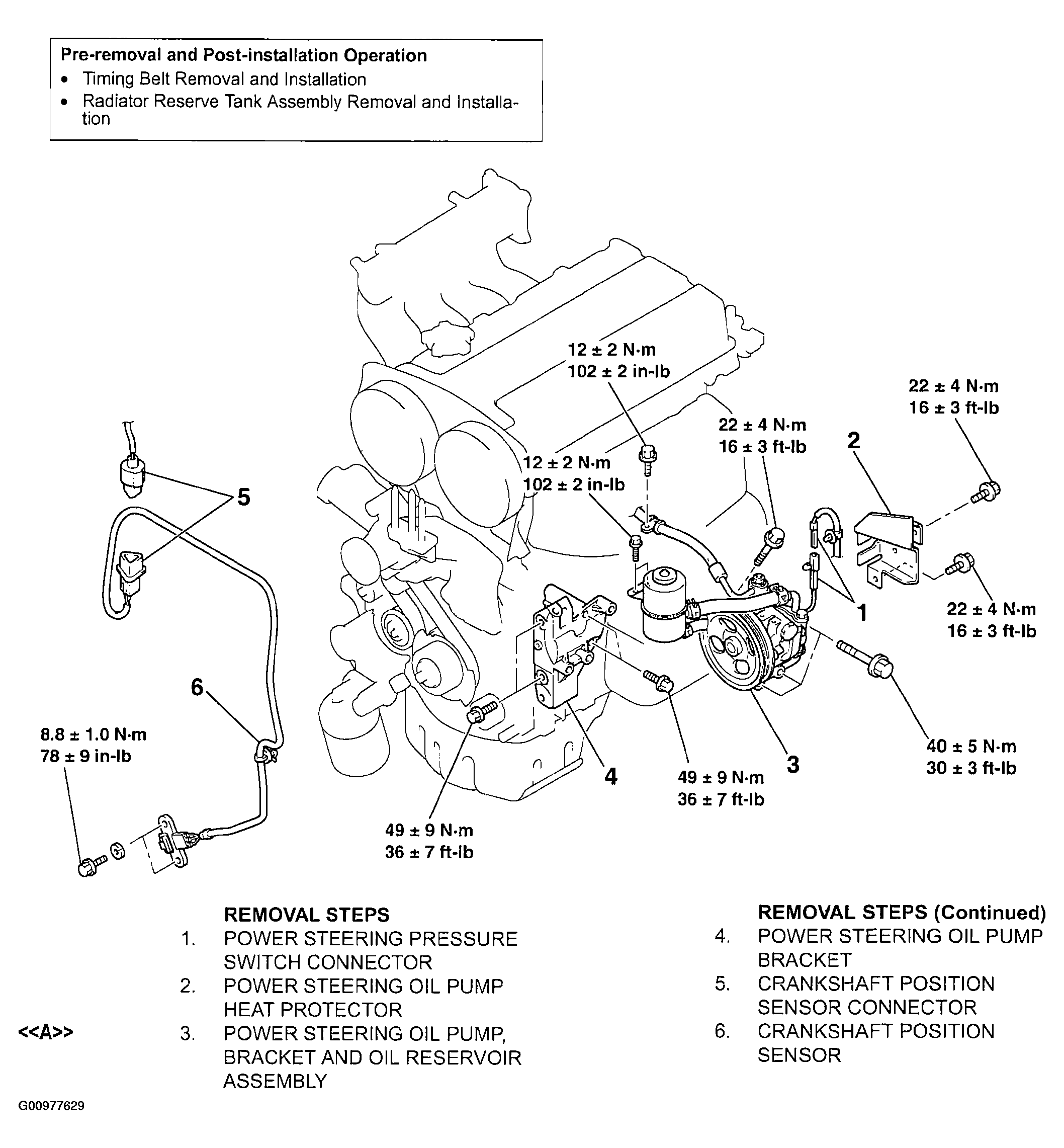

Fig 1: Removing Crankshaft Position Sensor
G00977629Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
