Removal And Installation: Notes

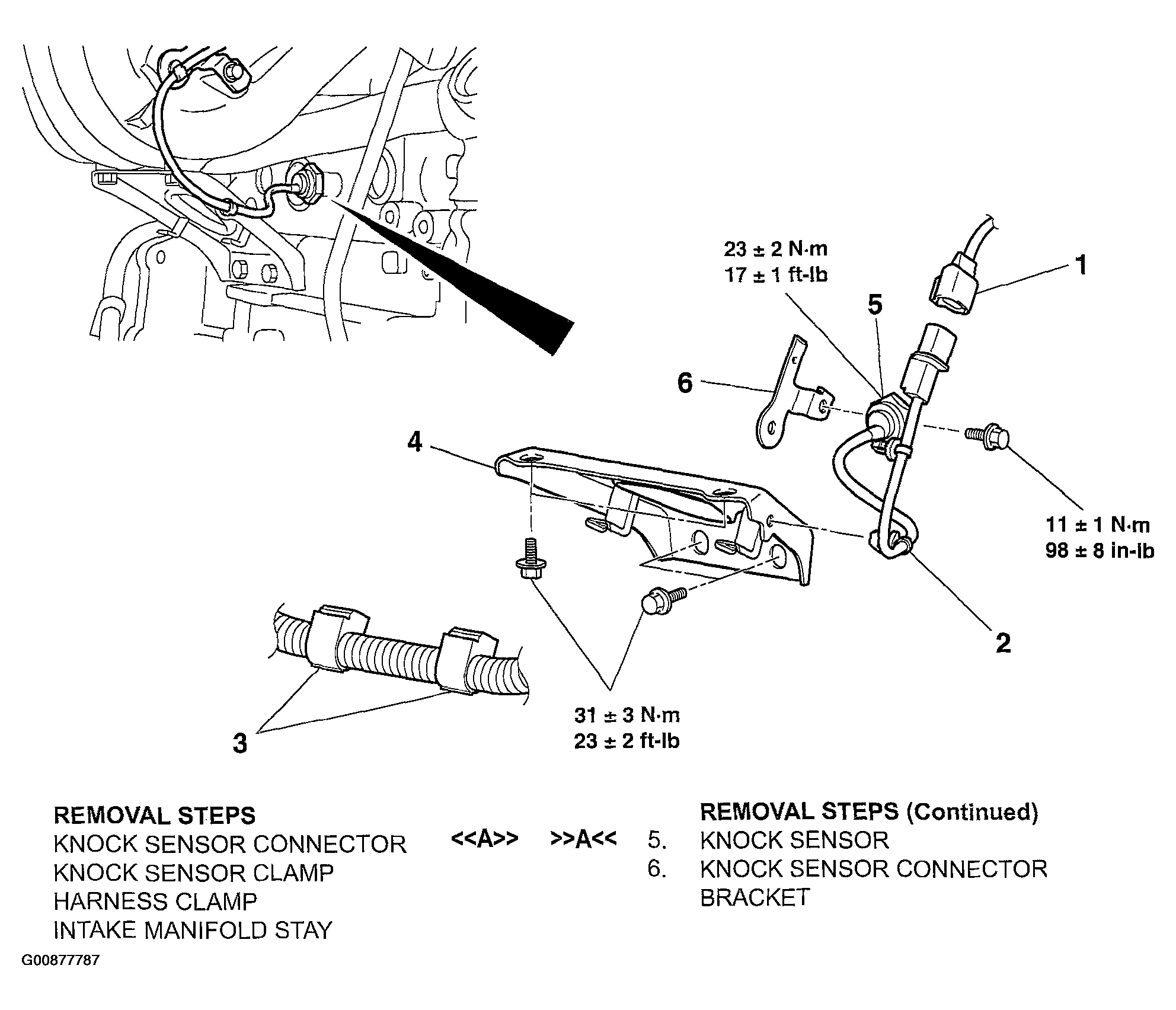

Fig 1: Removing Knock Sensor Components

G00877787

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

MD998773: Knock Sensor Wrench
