Removal And Installation

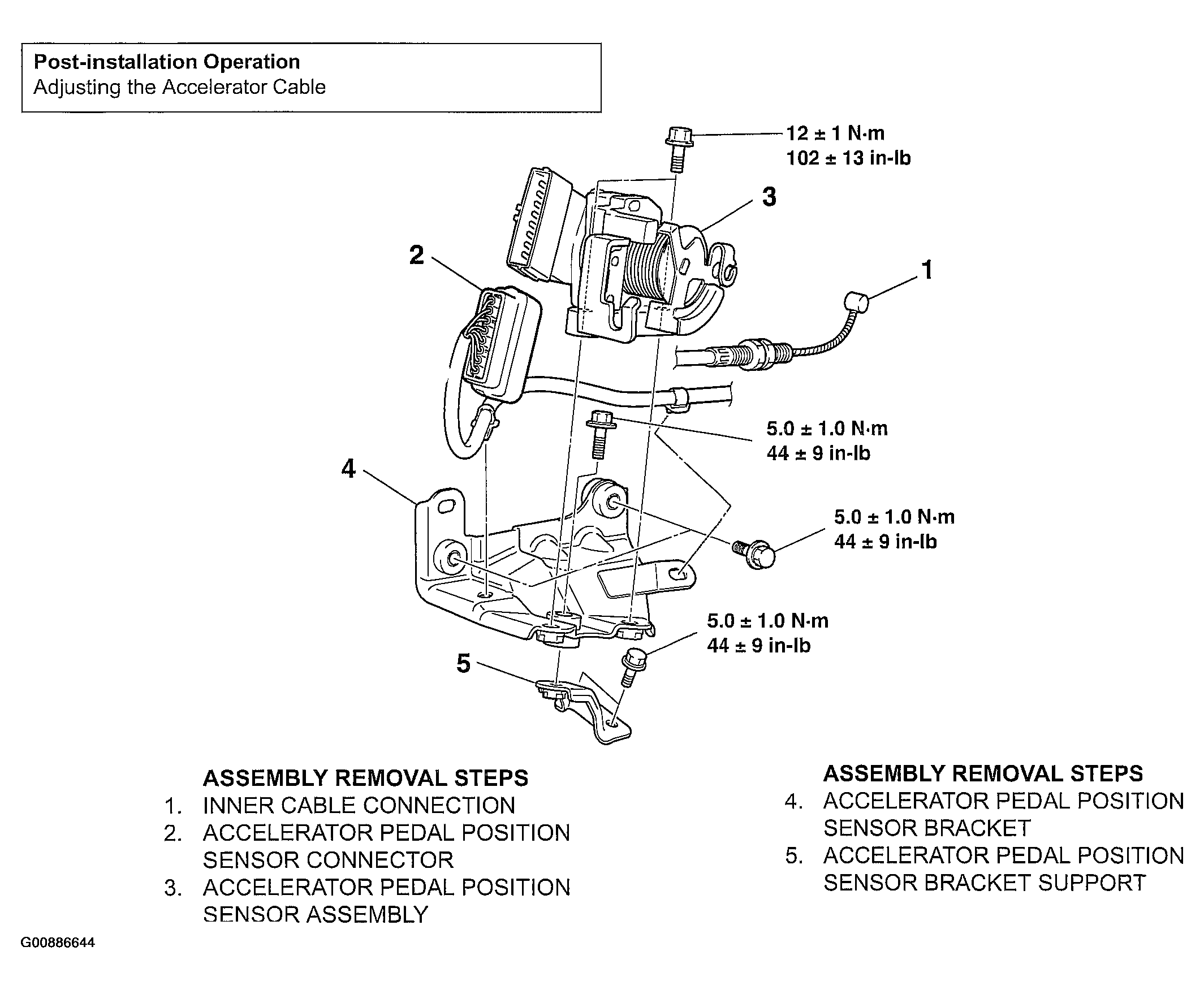

Fig 1: Removing Accelerator Pedal Position Sensor Components
G00886644Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
