Home >> Mitsubishi >> 2005 >> Lancer Evolution >> Repair and Diagnosis >> Engine Performance >> System >> Emission Control -- Evolution >> Evaporative Emission Control System >> Component Location

Component Location

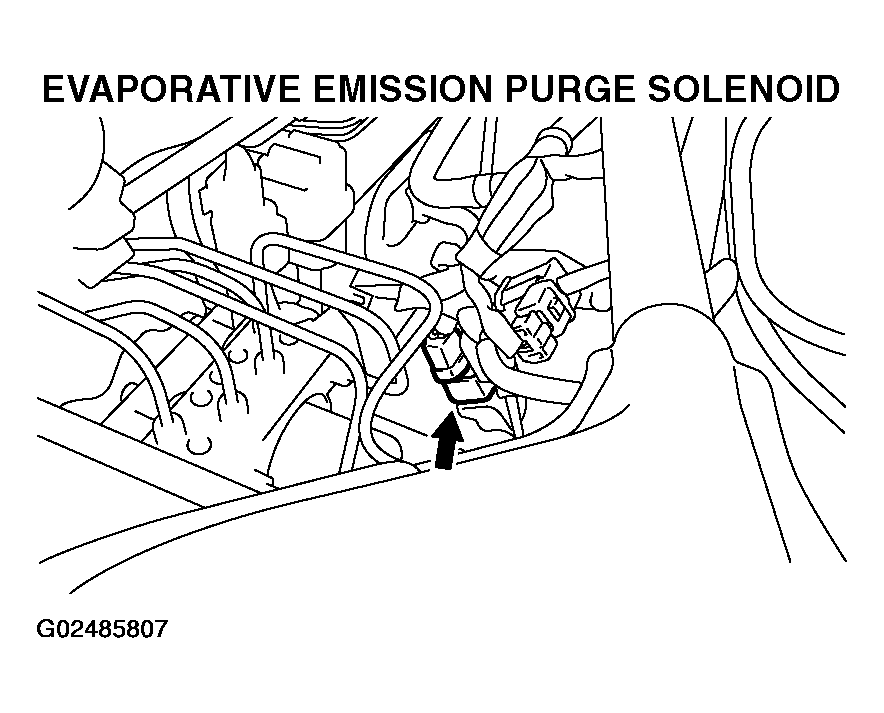

Fig 1: Identifying Evaporative Emission Purge Solenoid Component Location
G02485807Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

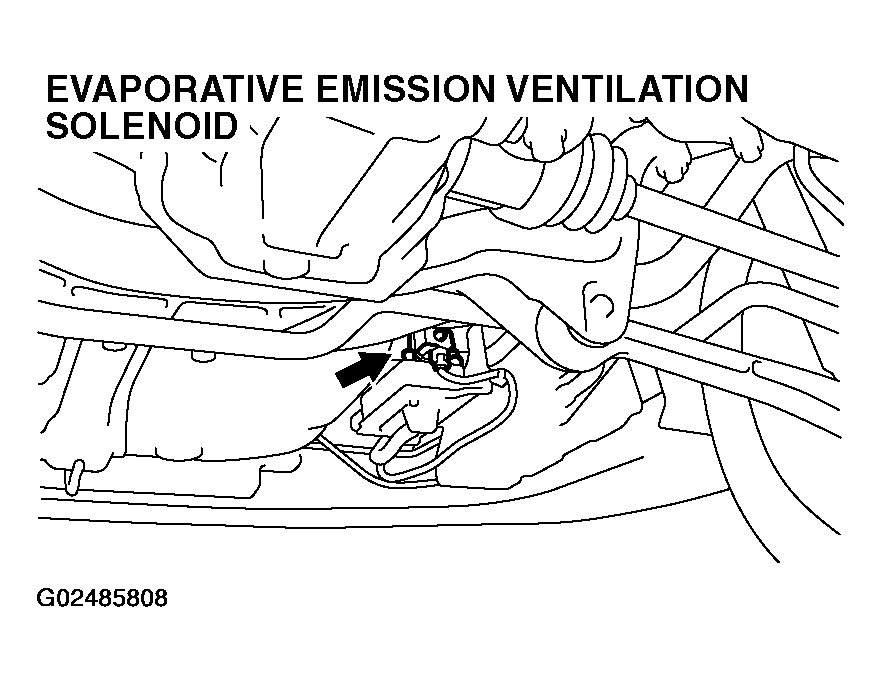

Fig 2: Identifying Evaporative Emission Ventilation Solenoid
G02485808Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
