Home >> Mitsubishi >> 2006 >> Outlander SE, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control >> Accelerator Cable And Pedal >> Removal And Installation >> Notes

Removal And Installation: Notes

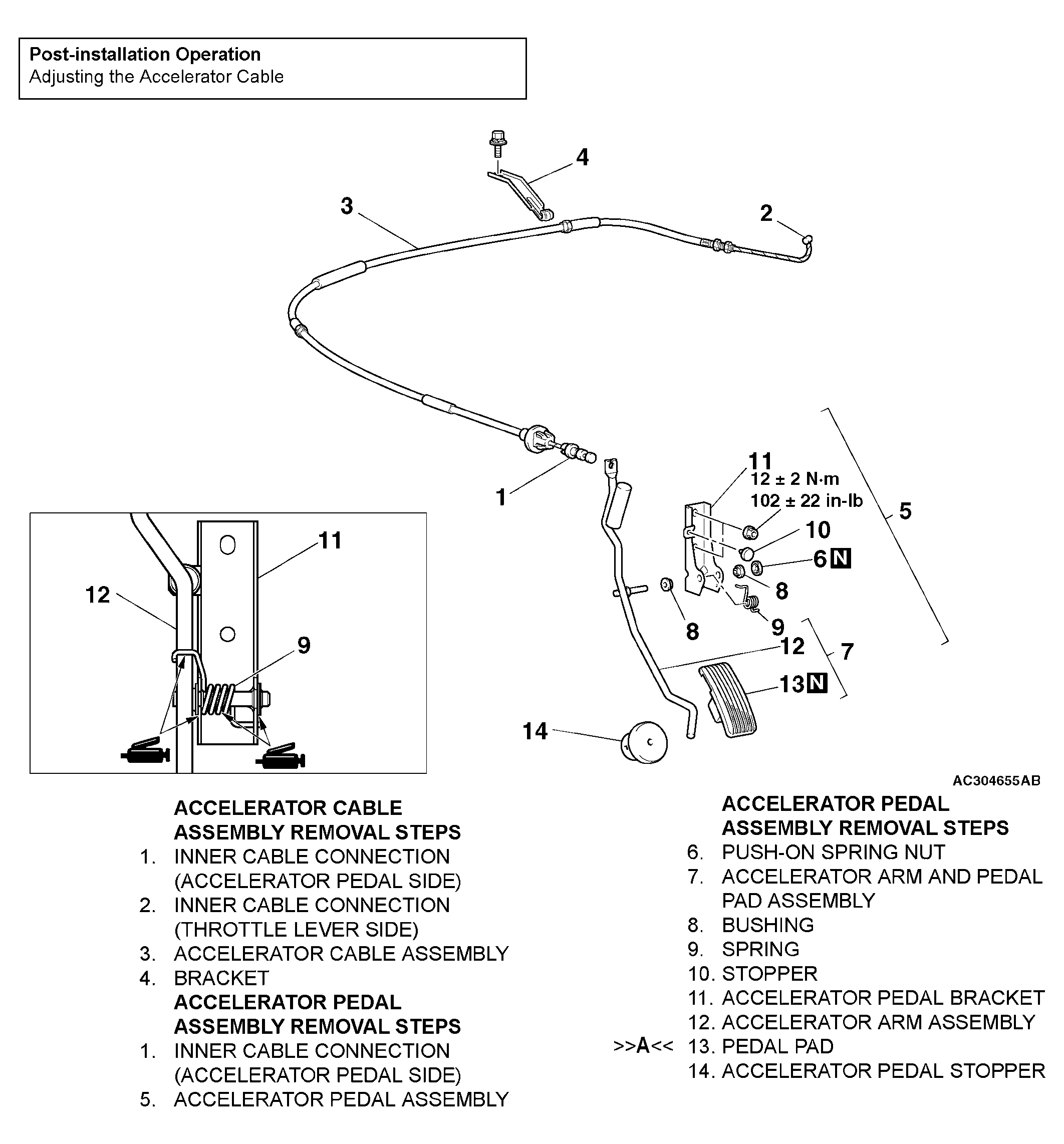

Fig 1: Removing/Installing Accelerator Cable And Pedal
G04302113Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
