Removal And Installation

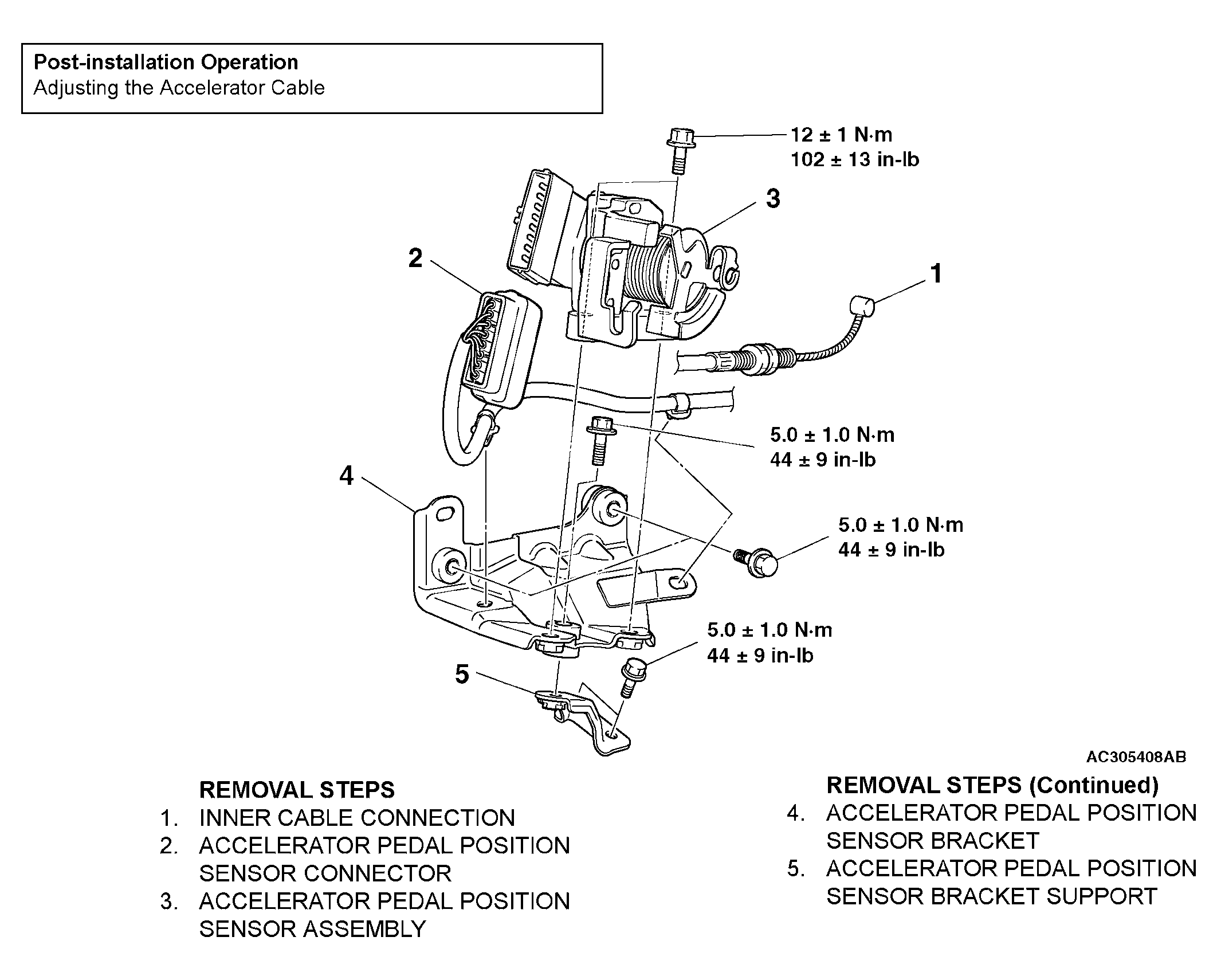

Fig 1: Removing/Installing Accelerator Pedal Position Sensor
G04302114Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
