*No Response From OCM (Occupant Classification Module): Notes

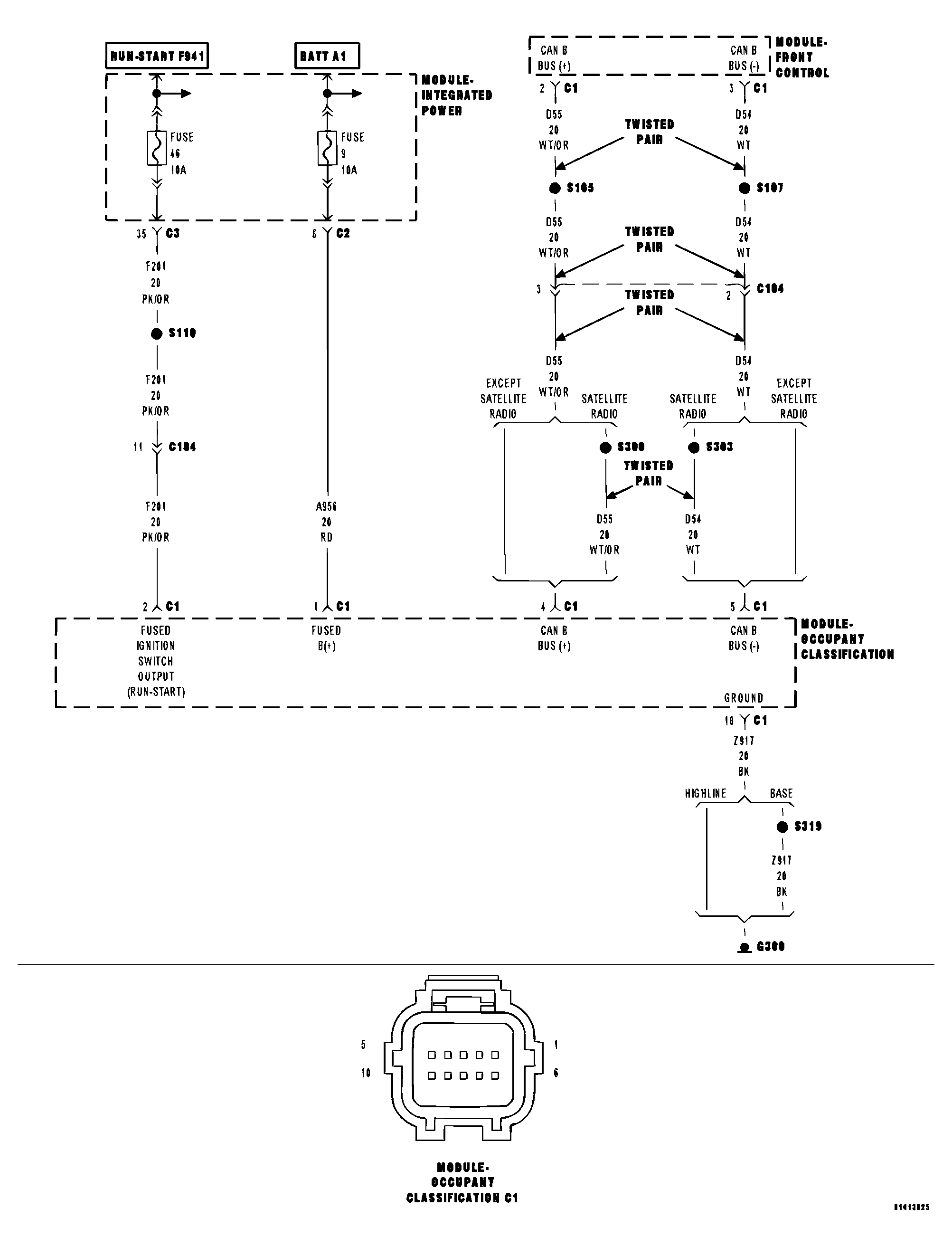

Fig 1: No Response From OCM (Occupant Classification Module) - Wiring Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram Refer to SYSTEM WIRING DIAGRAMS .

Possible Causes

(A956) FUSED B(+) CIRCUIT OPEN OR SHORTED

(Z917) GROUND CIRCUIT OPEN

(F201) FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN OR SHORTED

(D55) AND (D54) CAN B BUS CIRCUITS OPEN

OCCUPANT CLASSIFICATION MODULE
