*No Response From TCM (Powertrain Control Module): Notes

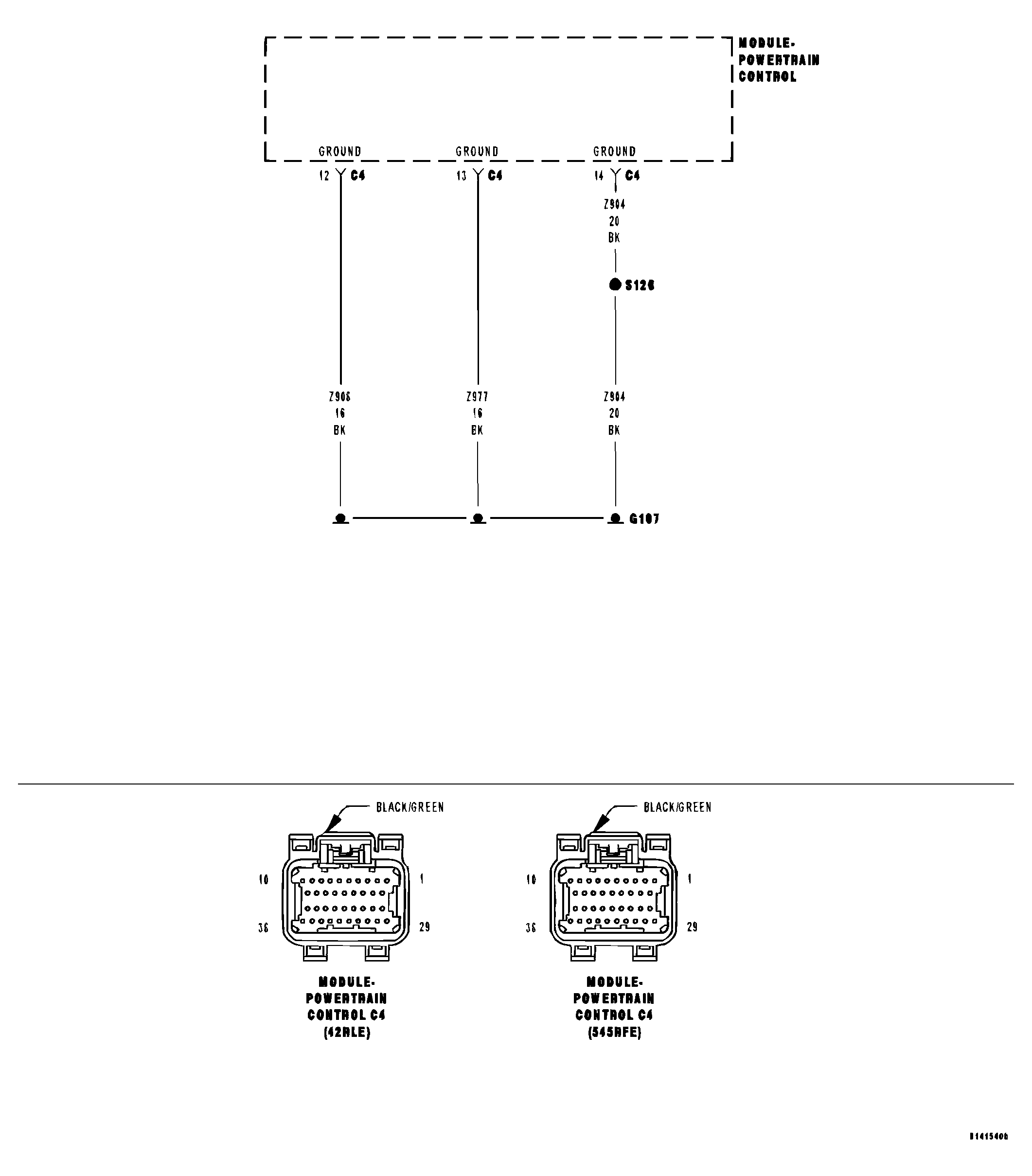

Fig 1: No Response From TCM (Powertrain Control Module) - Wiring Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram Refer to SYSTEM WIRING DIAGRAMS .

Possible Causes

(A919) FUSED B(+) CIRCUIT OPEN OR SHORTED

(Z908) (Z977) (Z904) GROUND CIRCUIT OPEN

(F202) (F924) FUSED IGNITION SW OUTPUT CIRCUIT OPEN OR SHORTED

(D65) CAN C BUS (+) CIRCUIT OPEN

(D64) CAN C BUS (-) CIRCUIT OPEN

POWERTRAIN CONTROL MODULE
