DTC U0141: Lost Communication With Front Control Module: Notes

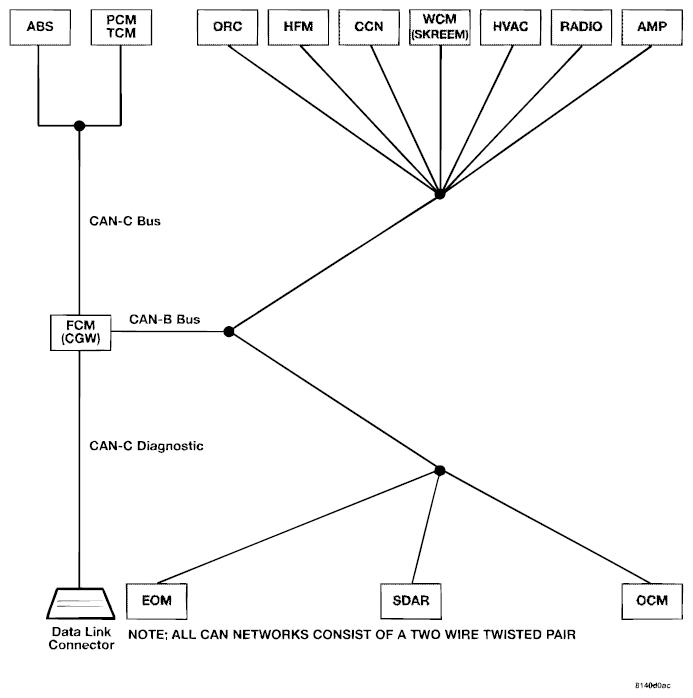

Fig 1: Communication Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram Refer to SYSTEM WIRING DIAGRAMS .

• When Monitored:
  • With the ignition on
  • Battery voltage between 10 and 16 volts
  • IOD fuse installed
  • FCM is configured correctly
• Set Condition:

  Bus messages not received from the Front Control Module for approximately 2 to 5 seconds  .

Possible Causes

CAN B BUS CIRCUITS OPEN OR SHORTED

DTCS RELATED TO BATTERY VOLTAGE, IGNITION, OR VIN MESSAGES

FCM NOT CONFIGURED CORRECTLY

FRONT CONTROL MODULE POWER AND GROUND

FRONT CONTROL MODULE

MODULE THAT SET THIS DTC
