Module - Anti-Lock Brakes: Installation

NOTE: If the ABM needs to be replaced, the rear axle type and tire revolutions per mile must be programed into the new ABM. For axle type refer to REAR AXLE . For tire revolutions per mile (Refer to TIRE REVOLUTIONS PER MILE ). To program the ABM refer to the Appropriate Diagnostic Service Information.

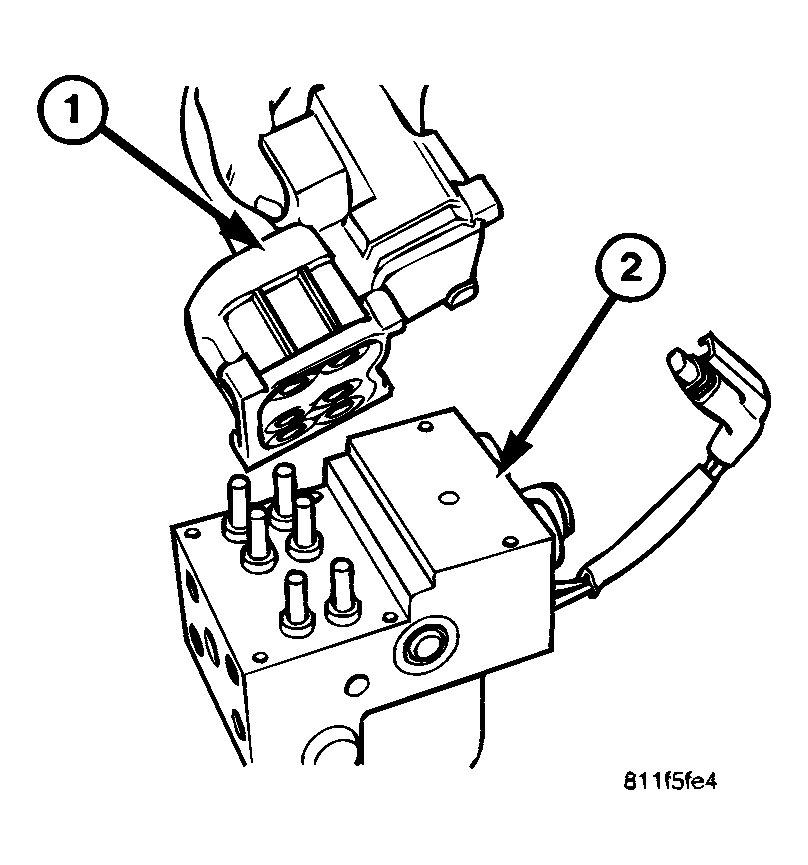

Fig 1: Positioning Module On HCU

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

1. Position the module (1) on the HCU (2).

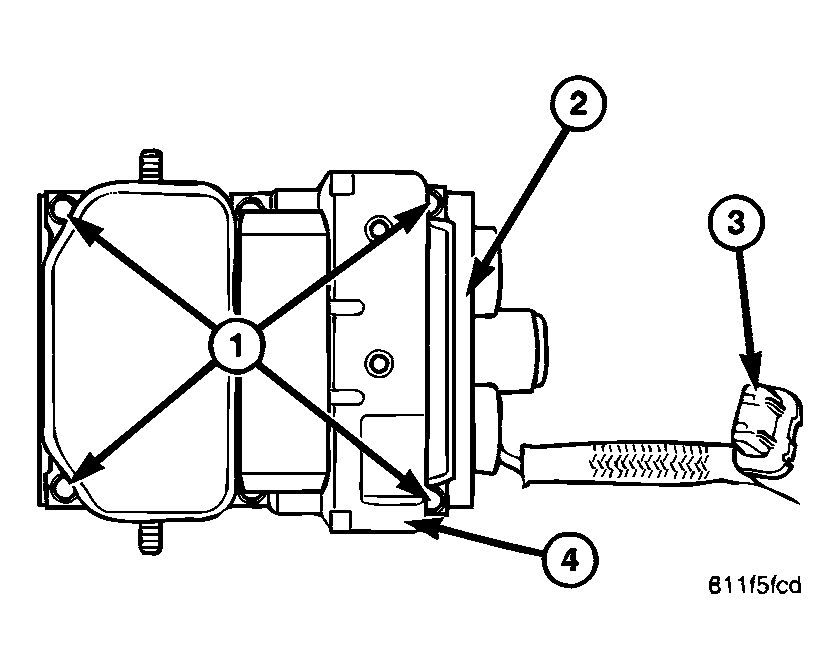

   Fig 2: Installing Pump Electrical Connector To Module

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Install the mounting screws (1) and tighten to 6 N.m (53 in. lbs).
3. Install the pump electrical connector (3) to the module (4).
4. Install the HCU to the vehicle (Refer to INSTALLATION )).
