Module - Anti-Lock Brakes: Removal

NOTE: If the ABM needs to be replaced, the rear axle type and tire revolutions per mile must be programed into the new ABM. For axle type refer to REAR AXLE . For tire revolutions per mile, (Refer to TIRE REVOLUTIONS PER MILE ). To program the ABM refer to the Appropriate Diagnostic Service Information.

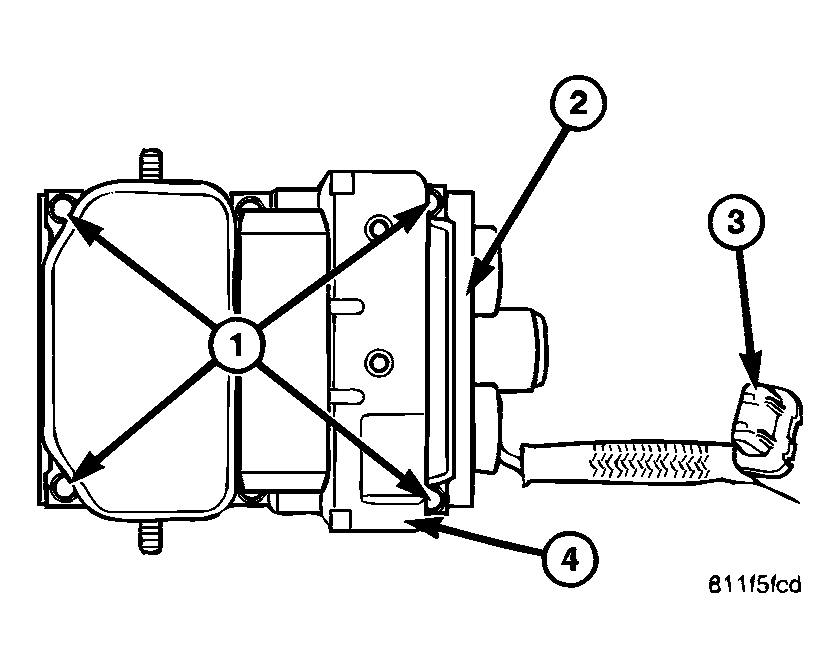

Fig 1: Disconnecting Pump Electrical Connector From HCU
G04283916Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  1. Remove the HCU from the vehicle (Refer to REMOVAL ).
  2. Remove the module mounting screws (1).
  3. Disconnect the pump electrical connector (3) from the HCU (2).

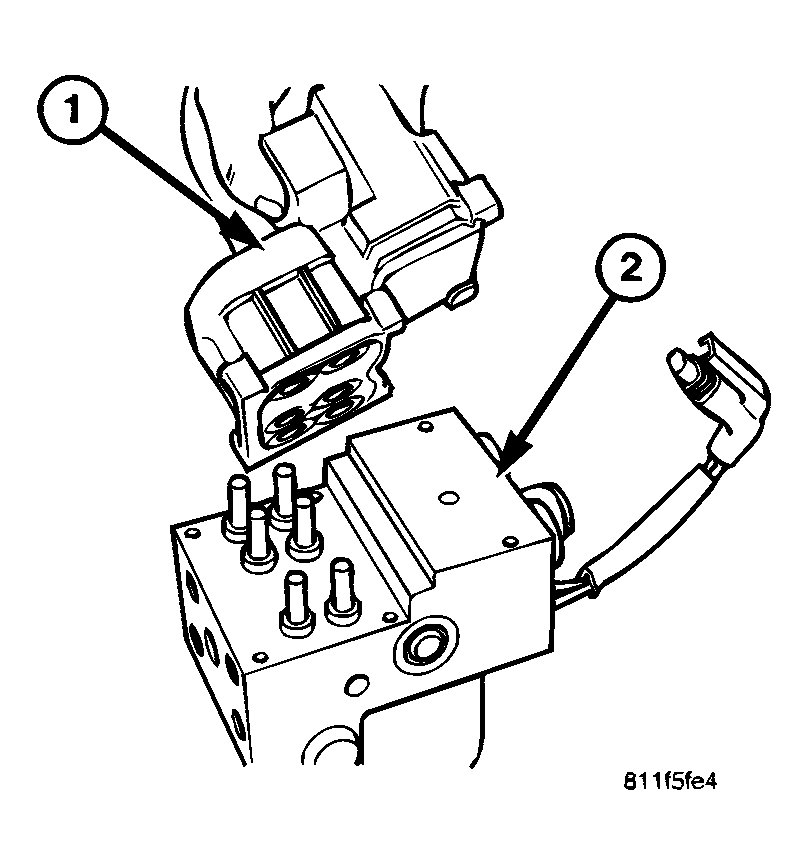

    Fig 2: Removing Module From HCU
    G04283917Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. Remove the module (1) from the HCU (2).
