Module - Front Control: Installation

  1. Connect the Power Distribution Center (PDC) (3) to the Front Control Module (FCM) by lining up the electrical connector and pushing the two together.
  2. Install the four fasteners (2) securing the FCM (1) to the PDC (3).
  3. Install the Integrated Power Module (IPM).
  4. Connect the battery negative cable.

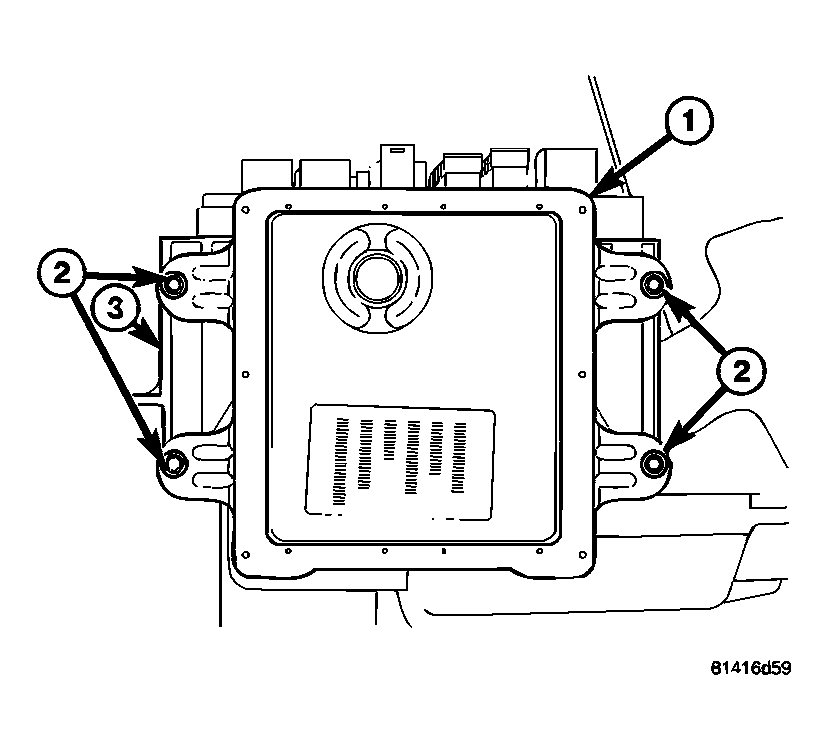

    Fig 1: Installing Fasteners Securing FCM To PDC
    G04283923Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
