Module - Transfer Case Control: Description

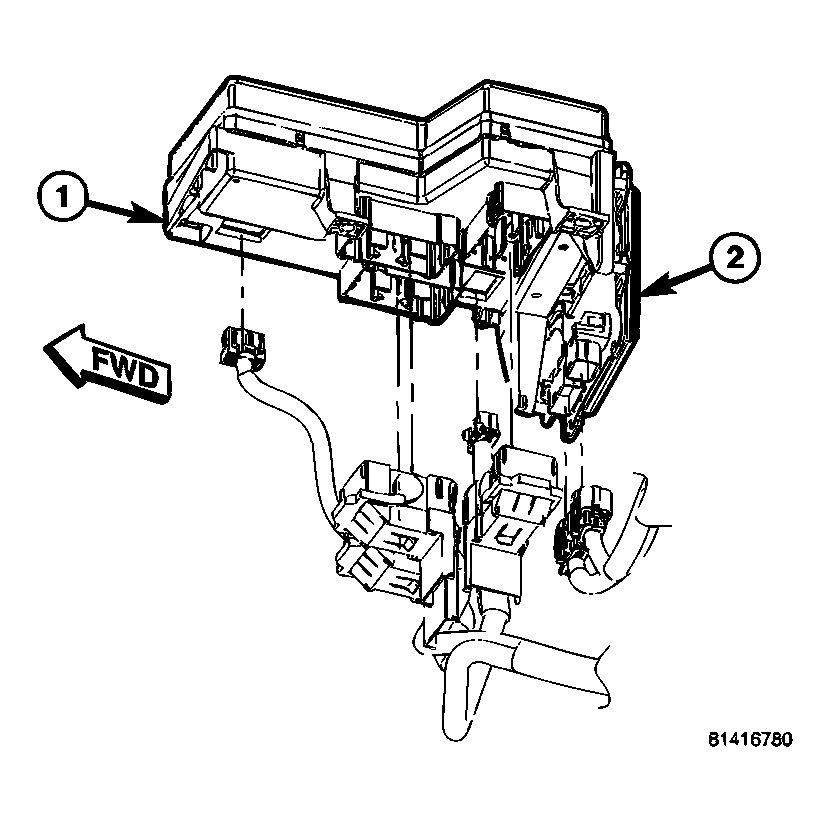

Fig 1: Identifying Front Control Module (FCM)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The Front Control Module (FCM) (2) contains the software to control the electric shift transfer cases in this vehicle. A separate Transfer Case Control Module (TCCM) is not used. The FCM is a microprocessor-based assembly, controlling the 4X4 transfer case shift functions via the actuation of a shift motor and utilizing the feedback of a mode sensor assembly. Communication is via the CAN bus. Inputs include user selectable 4X4 modes that include 2WD, AWD, 4LOCK, 4LO, and Neutral, depending on the transfer case.

(Refer to DESCRIPTION ) for additional information.
