Module - Transmission Control: Description

The Transmission Control Module (TCM) is a sub-module within the Powertrain Control Module (PCM) (1). The PCM is attached to the right-inner corner of the engine compartment.

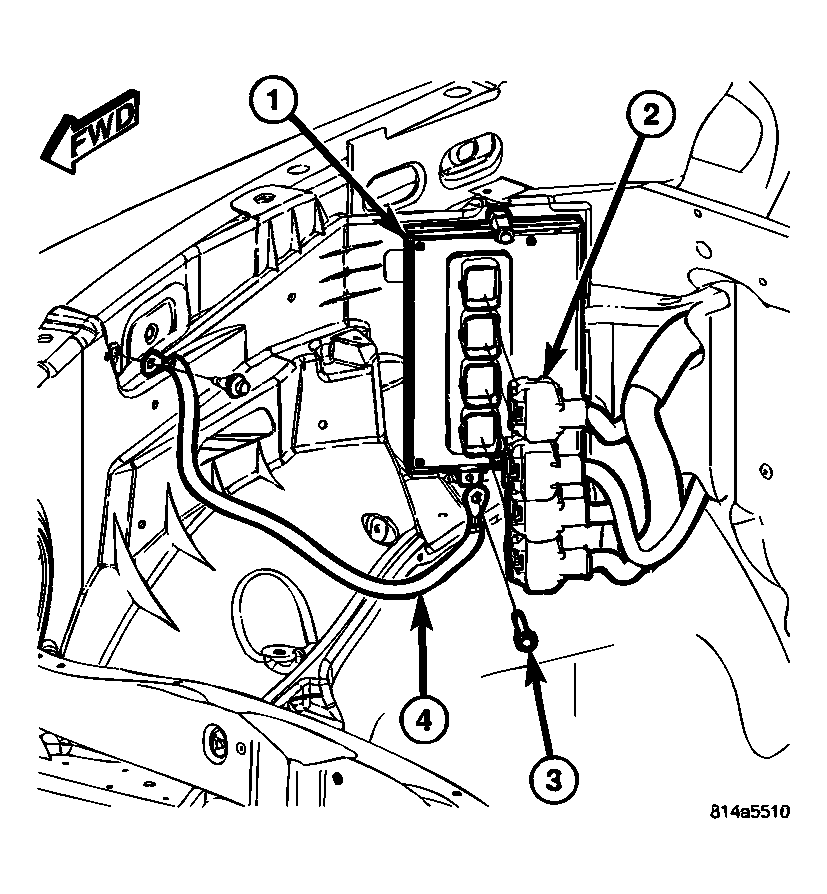

Fig 1: Identifying Transmission Control Module
G04283930Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
