Servo - Speed Control: Removal

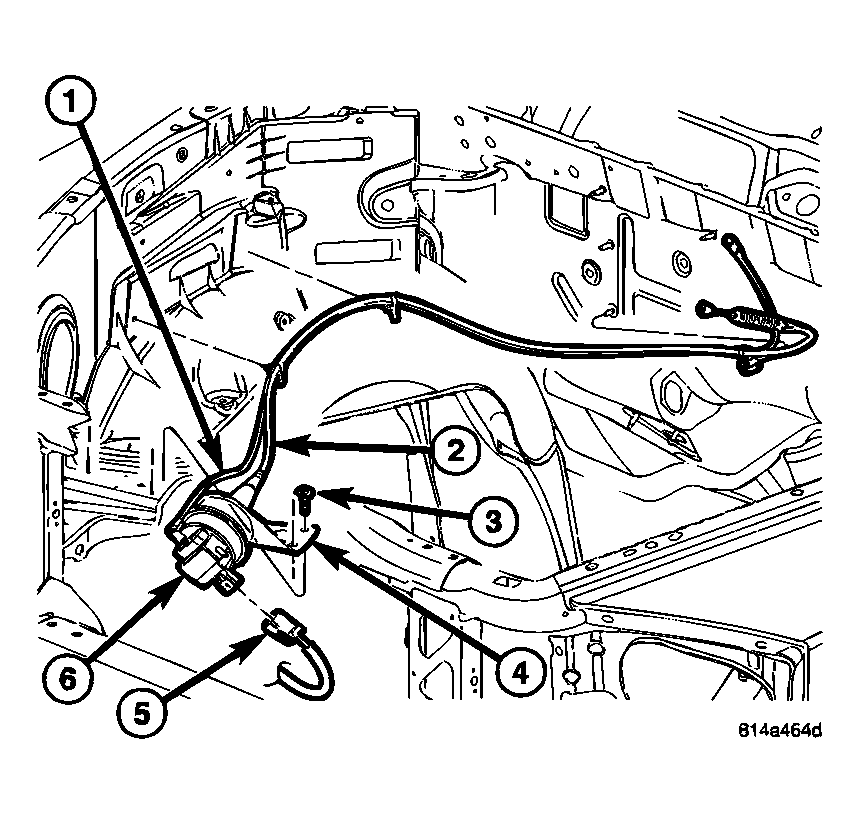

Fig 1: Locating Speed Control Servo

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The speed control servo assembly (6) is attached to the right inner fender under the air cleaner filter housing.

1. Disconnect negative battery cable at battery.
2. Remove air cleaner filter housing assembly.
3. Disconnect vacuum line (1) at servo.
4. Disconnect electrical connector (5) at servo.
5. Remove three servo mounting screws (3).
6. Disconnect servo cable at throttle body. (Refer to REMOVAL ).

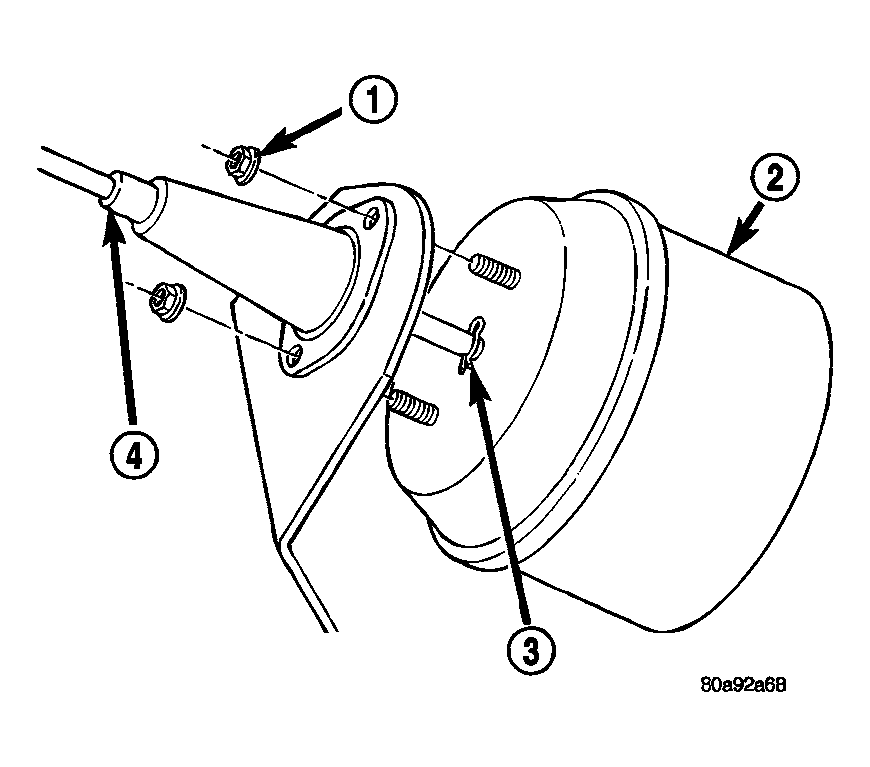

   Fig 2: Removing Servo Mounting Nuts

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   NOTE: The servo and mounting bracket displayed is a typical unit.
7. Remove 2 mounting nuts (1) holding servo cable sleeve (4) to bracket.
8. Pull speed control cable sleeve and servo away from servo mounting bracket to expose cable retaining clip (3) and remove clip. Note: The servo mounting bracket displayed is a typical bracket and may/may not be applicable to this model vehicle.
9. Remove servo (2) from mounting bracket. While removing, note orientation of servo to bracket.
