Switch - Speed Control: Removal

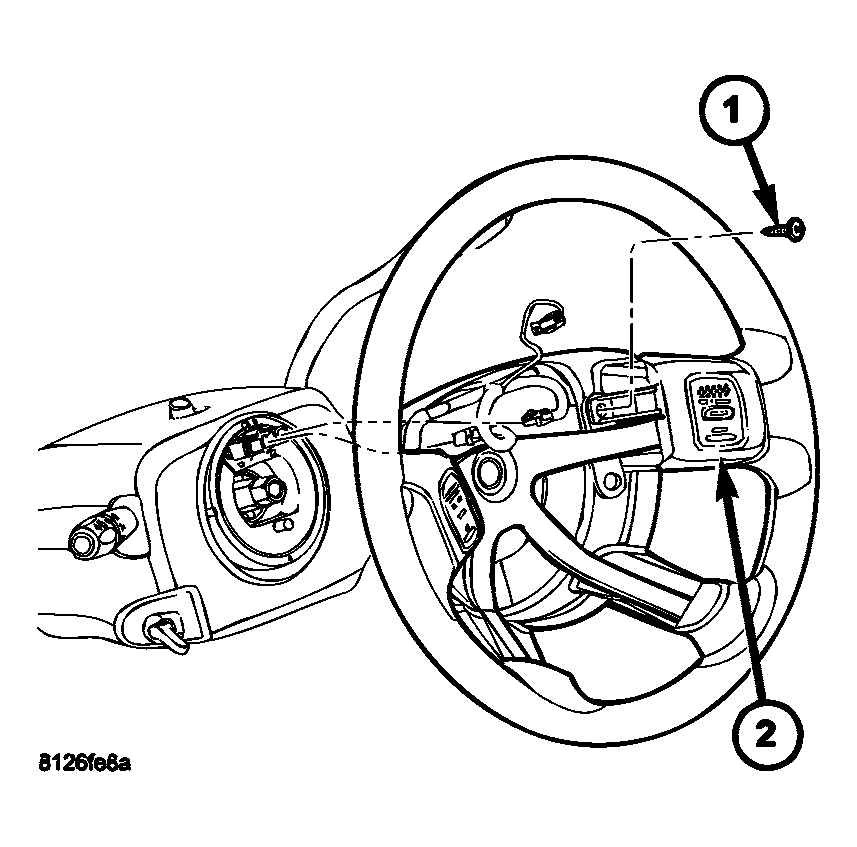

Fig 1: Removing Speed Control Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

WARNING: Before attempting to diagnose, remove or install any airbag system or related steering wheel and steering column components you must first disconnect and isolate the negative (ground) battery cable. Wait 2 minutes for system capacitor to discharge before further system service. Failure to do so could result in accidental deployment and possible personal injury.

Disconnect and isolate negative battery cable from battery.
Remove airbag module. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) .
Unplug electrical connector.
Remove speed control switch mounting screw (1) and remove switch from steering wheel.
