Battery Cables: Installation: Positive

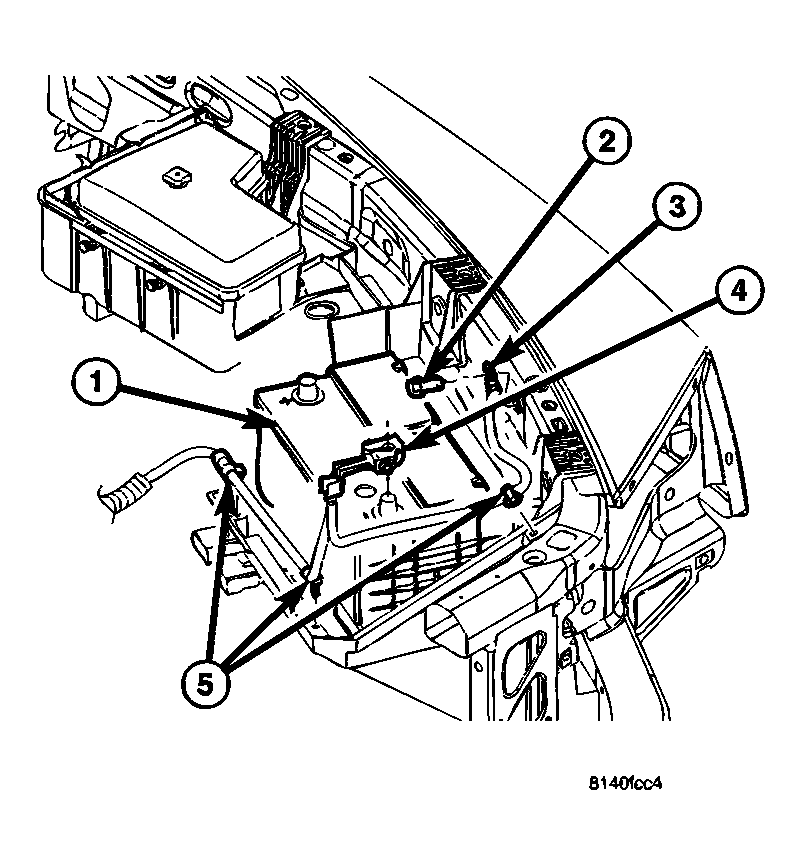

Fig 1: Installing Positive Battery Cable Terminal
G04284025Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  1. Position the battery positive cable (4 and 8) in the vehicle.
  2. Install the nut (5) securing the cable to the Integrated Power Module (IPM) (7) stud (6). Tighten the nut to 11.5 N.m (105 in. lbs.).
  3. Install the nut (3) securing the cable (4) to the alternator. Tighten the nut to 14 N.m (125 in. lbs.).

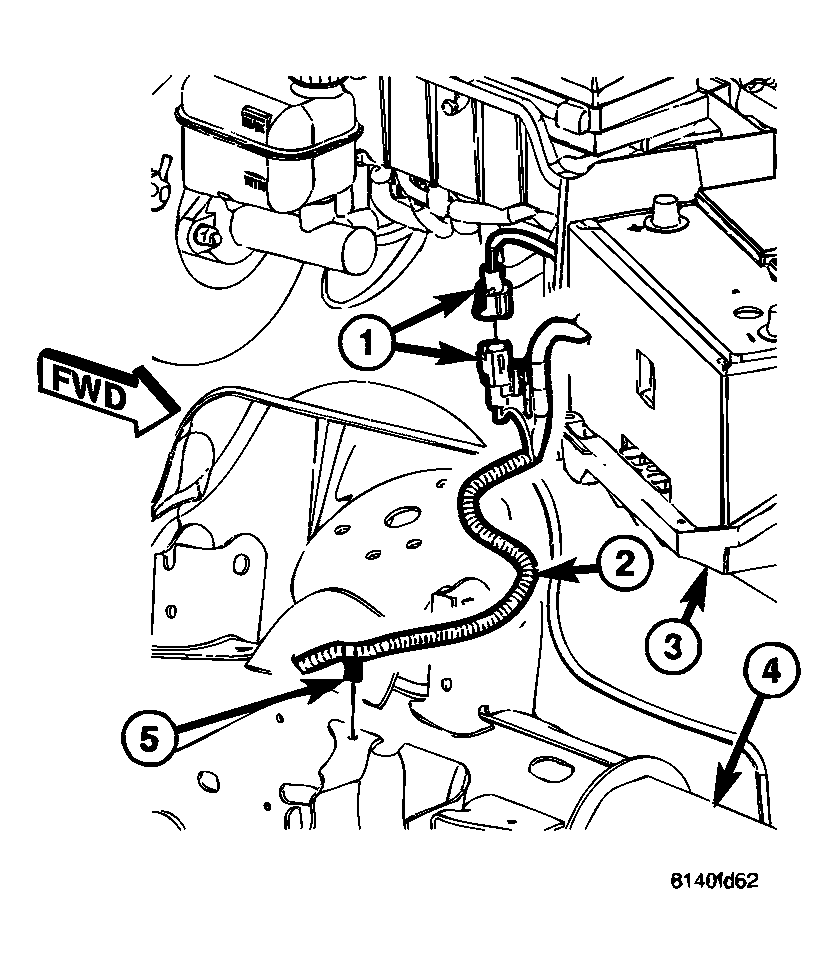

    Fig 2: Installing Positive Battery Cable
    G04284026Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. Install the cable pushpin (5) into the left frame rail (4).
  5. Connect the starter solenoid wire harness connector (1).

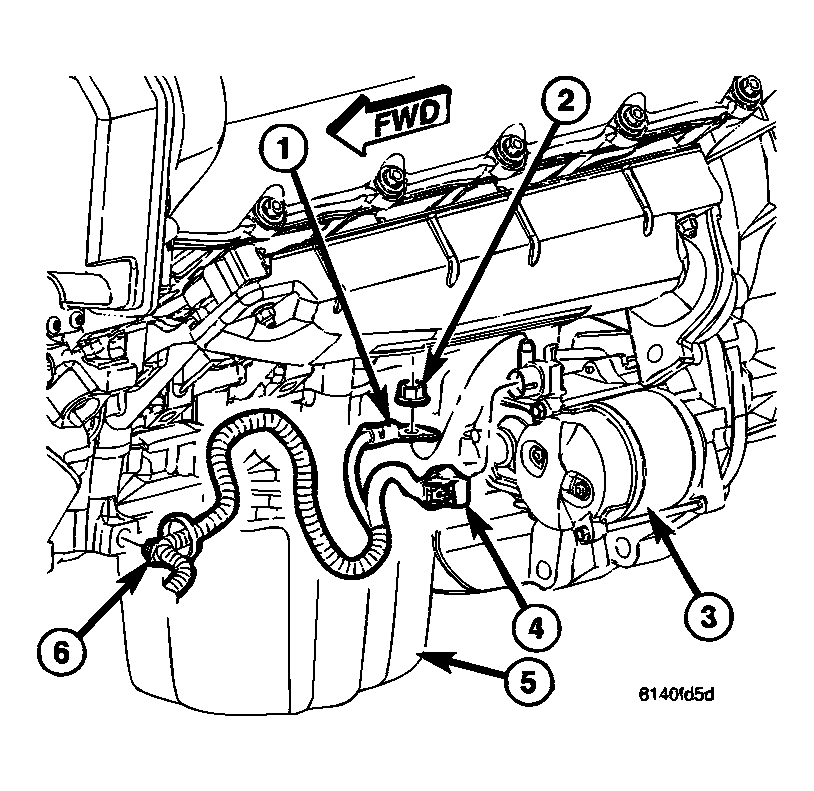

    Fig 3: Installing Nut Securing Cable To Starter Solenoid
    G04284027Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  6. Raise the vehicle on a hoist, (Refer to STANDARD PROCEDURE ).
  7. Install the nut (2) securing the cable (1) to the starter solenoid (3). Tighten the nut to 13 N.m (115 in. lbs.).
  8. Connect the battery cable retaining pushpin (6) securing the cable to the engine block.
  9. Lower the vehicle.

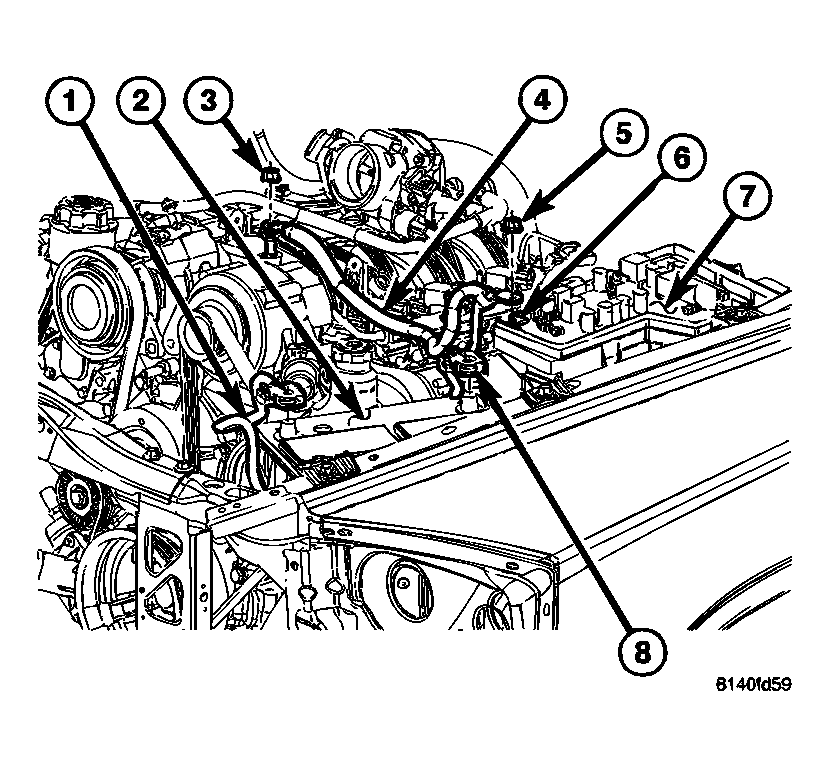

    Fig 4: Connecting Battery Positive Cable Terminal Clamp
    G04284028Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  10. Connect the battery positive cable terminal clamp (8). Tighten the battery terminal clamp pinch-bolt hex nut to 5 N.m (45 in. Lbs.).

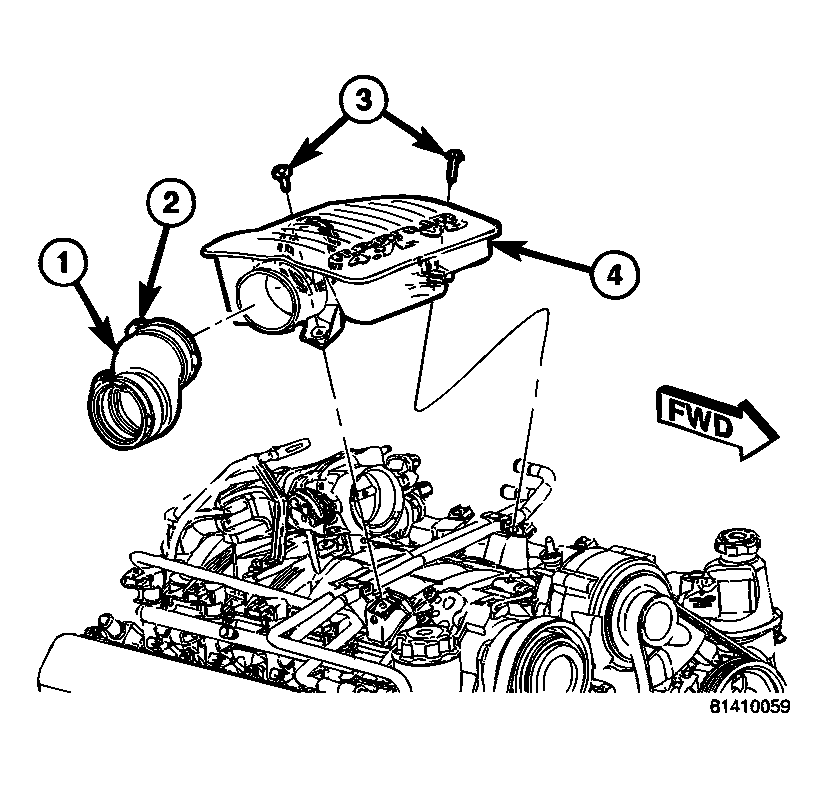

    Fig 5: Installing Bolts Into Air Intake
    G04284029Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  11. Position the resonator (4) into the vehicle. Install the bolts (3) into the air intake resonator (4) and tighten the band clamp (2) on the air inlet tube (1).
  12. Connect the battery negative cable terminal clamp. Tighten the battery terminal clamp pinch-bolt hex nut to 5 N.m (45 in. Lbs.).
  13. Check the vehicle for normal operation.
