Battery Tray: Description

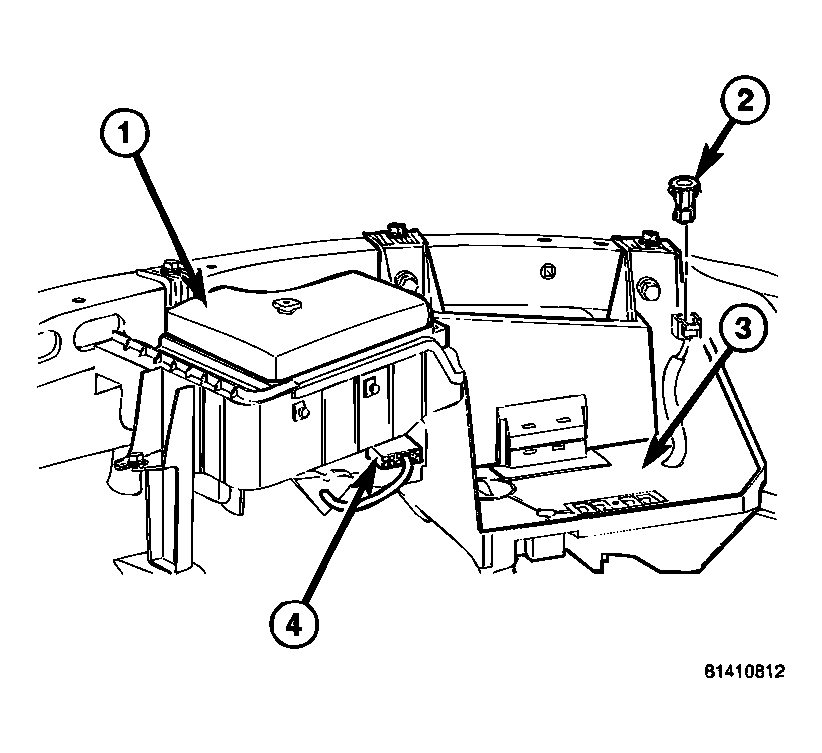

Fig 1: Identifying Plastic Battery Tray

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The molded plastic battery tray (3) is located in the left front corner of the engine compartment. On this vehicle, the battery tray also provides an anchor point for the anti-lock brake controller (4) and the Integrated Power Module (IPM) (1). The battery hold down hardware is contained within the battery tray.
