Battery Tray: Installation

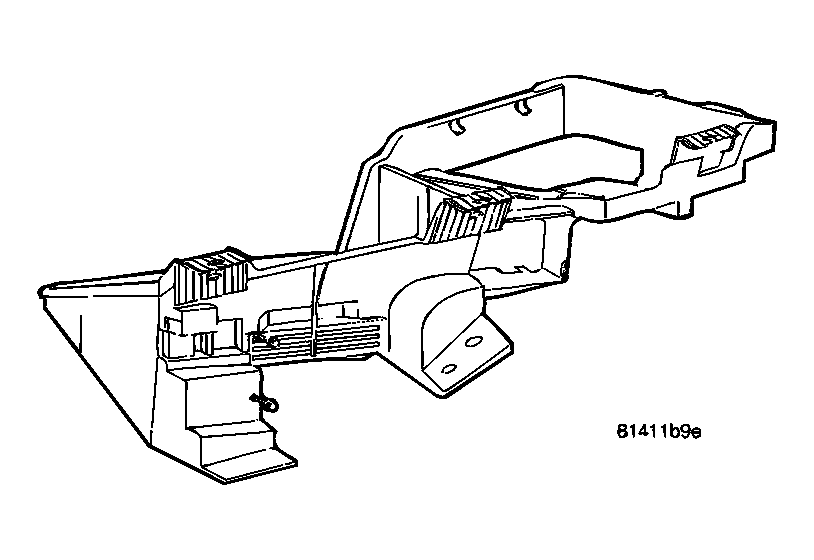

Fig 1: Inspecting Battery Tray
G04284039Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  1. Clean and inspect the battery tray, (Refer to CLEANING ).

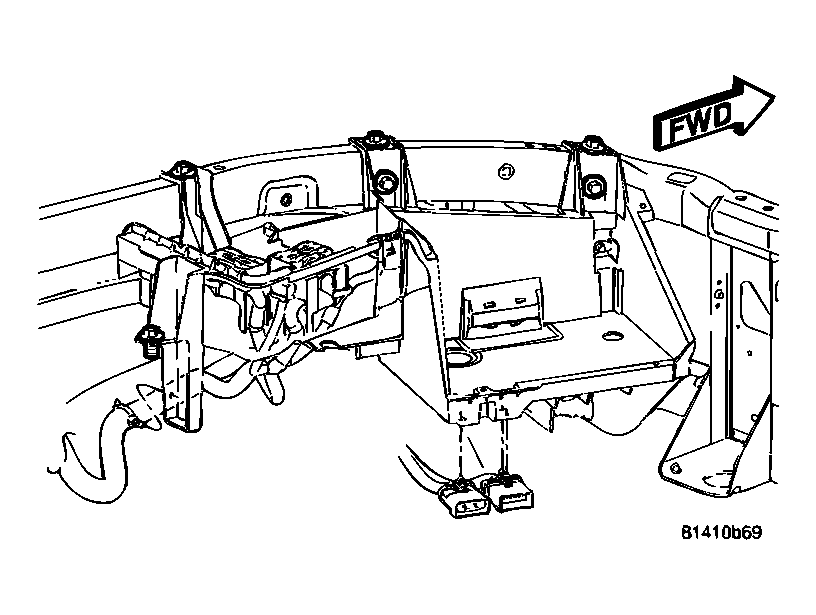

    Fig 2: Positioning Battery Tray Into Vehicle
    G04284040Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Position the battery tray into the vehicle.
  3. Install the six upper battery tray bolts hand tight.

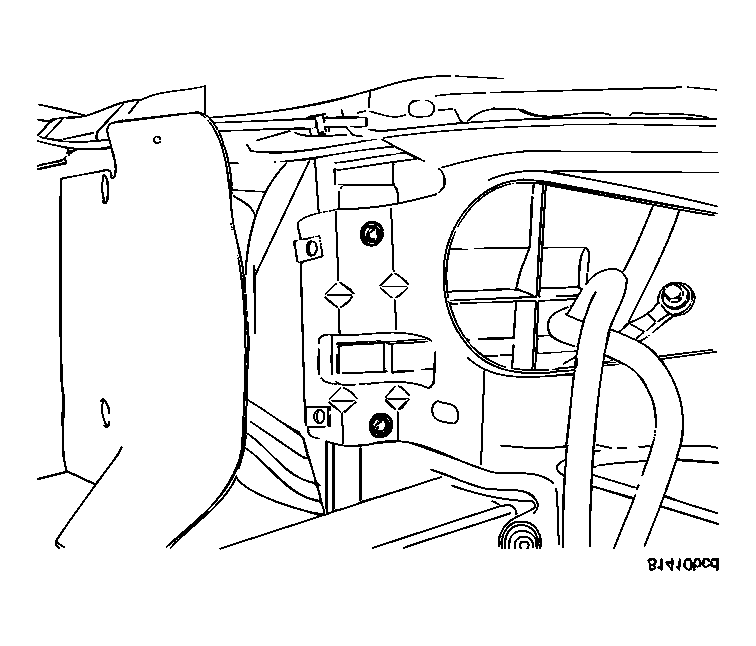

    Fig 3: Installing Six Upper Battery Tray Bolts Hand Tight
    G04284041Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. Install the two front battery tray bolts hand tight.

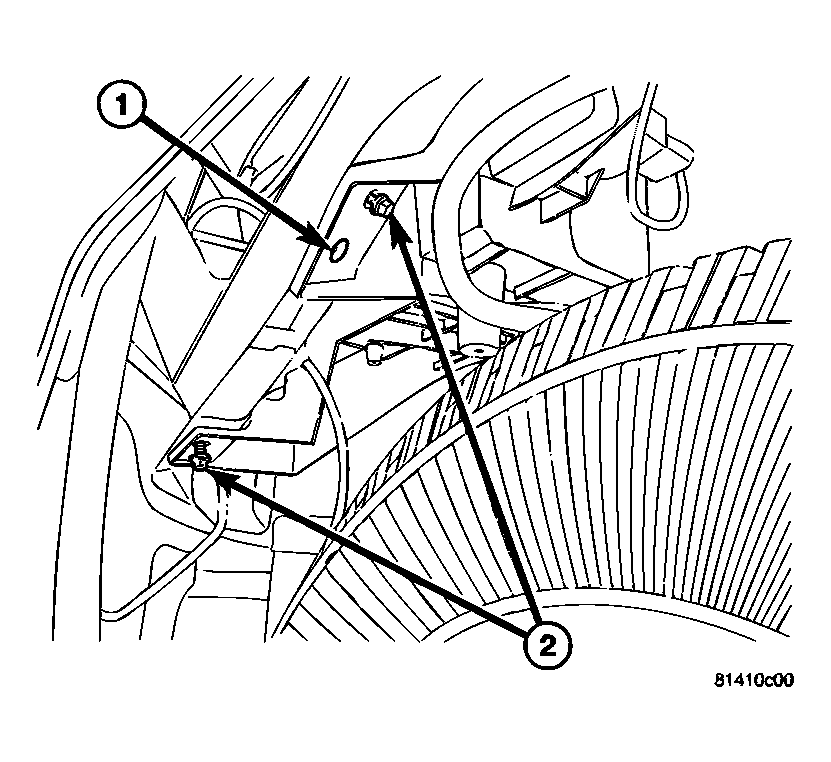

    Fig 4: Installing Two Front Battery Tray Bolts Hand Tight
    G04284042Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  5. Raise the vehicle on a hoist, (Refer to STANDARD PROCEDURE )
    NOTE: The middle bolt hole is to remain open for a front fender liner fastener (1).
  6. Install the two lower battery tray bolts (2). Tighten the bolts to 10 N.m (90 in. lbs.).
  7. Install the left front fender liner, (Refer to INSTALLATION ).
    Fig 5: Installing Left Front Fender Liner
    G04284043Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  8. Lower the vehicle.
  9. Tighten the upper battery tray bolts to 10 N.m (90 in. lbs.).

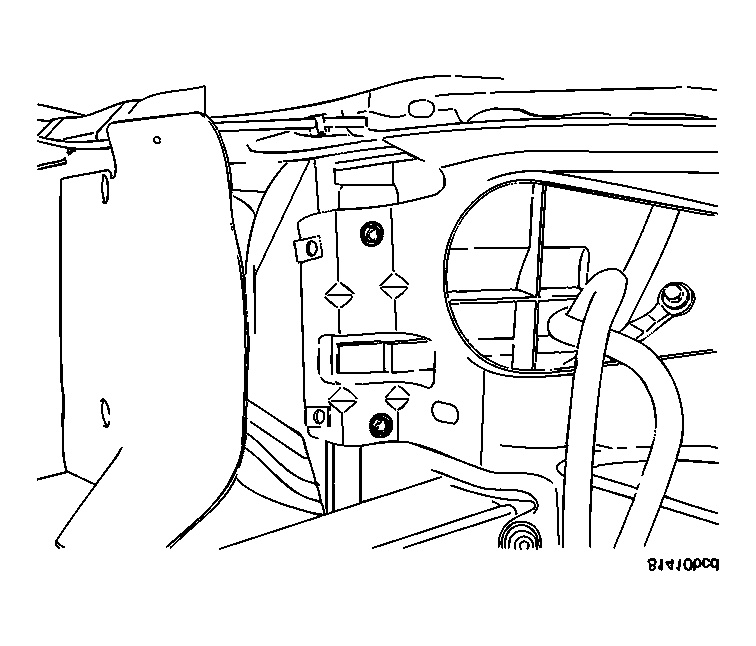

    Fig 6: Tightening Two Front Battery Tray Bolts
    G04284044Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  10. Tighten the two front battery tray bolts to 8.5 N.m (75 in. lbs.).

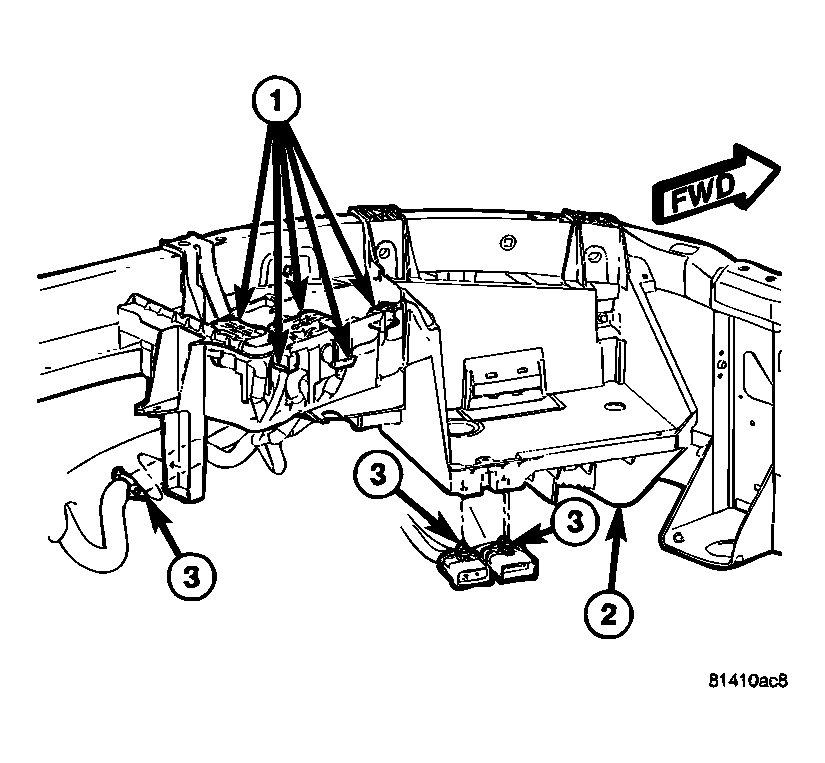

    Fig 7: Installing Engine Compartment Wire Harness Retaining Pushpins (3) Battery Tray (2)
    G04284045Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  11. Install the engine compartment wire harness retaining pushpins (3) to the battery tray (2).

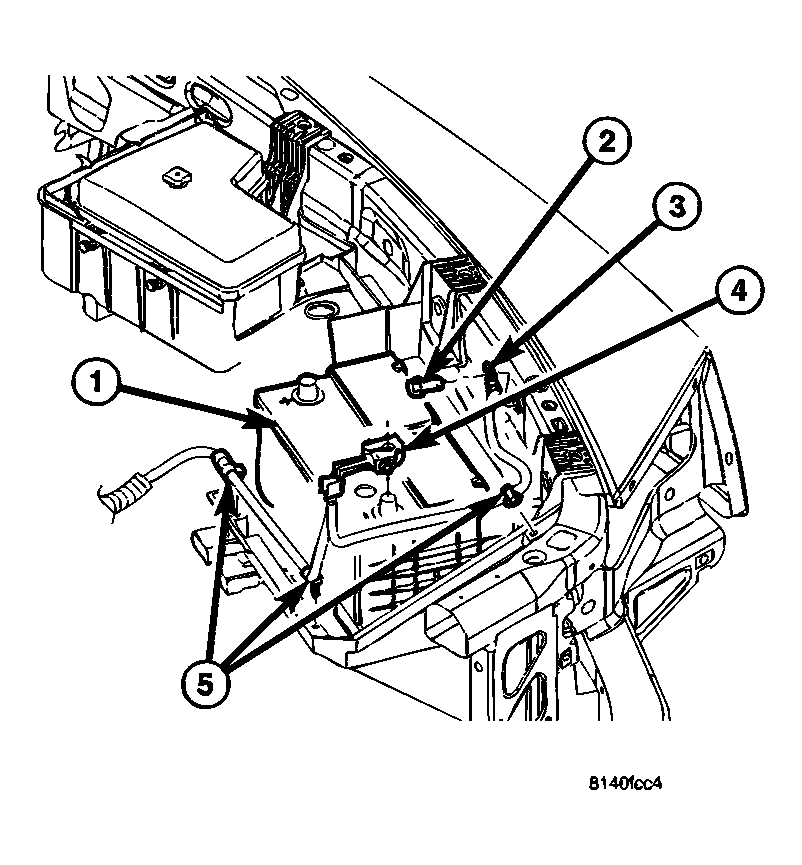

    Fig 8: Installing Battery Negative Cable Retaining Pushpins (5) Battery Tray
    G04284046Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  12. Install the battery negative cable retaining pushpins (5) to the battery tray.

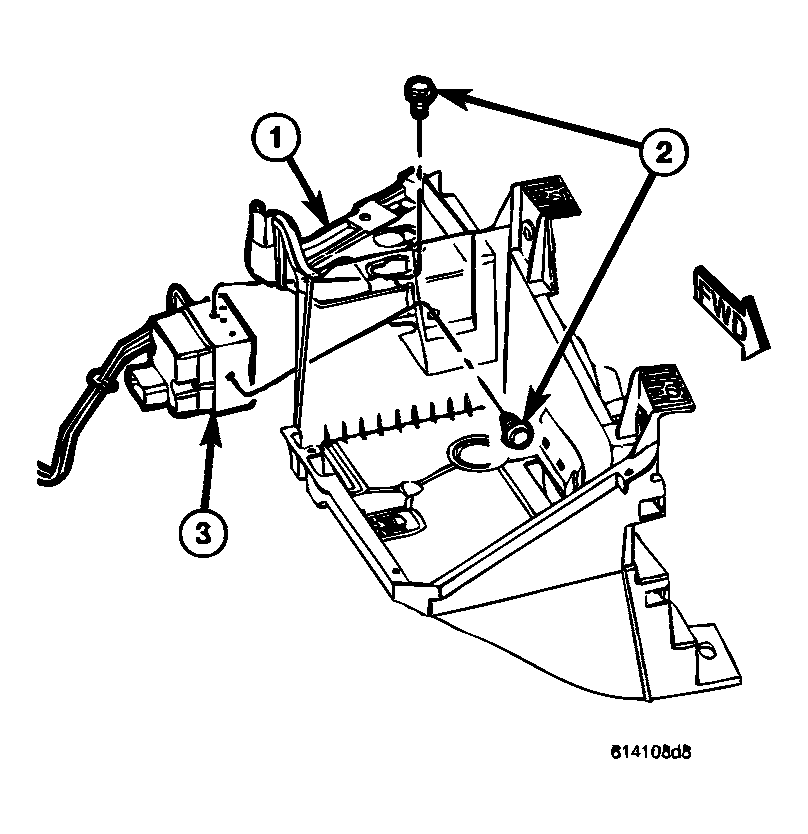

    Fig 9: Installing Antilock Brake System (ABS) Hydraulic Control Unit (HCU) (3) Bolts (2) Into Battery Tray
    G04284047Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  13. Install the Antilock Brake System (ABS) Hydraulic Control Unit (HCU) (3) bolts (2) into the battery tray (1). Tighten the bolts to 18 N.m (160 in. lbs.).

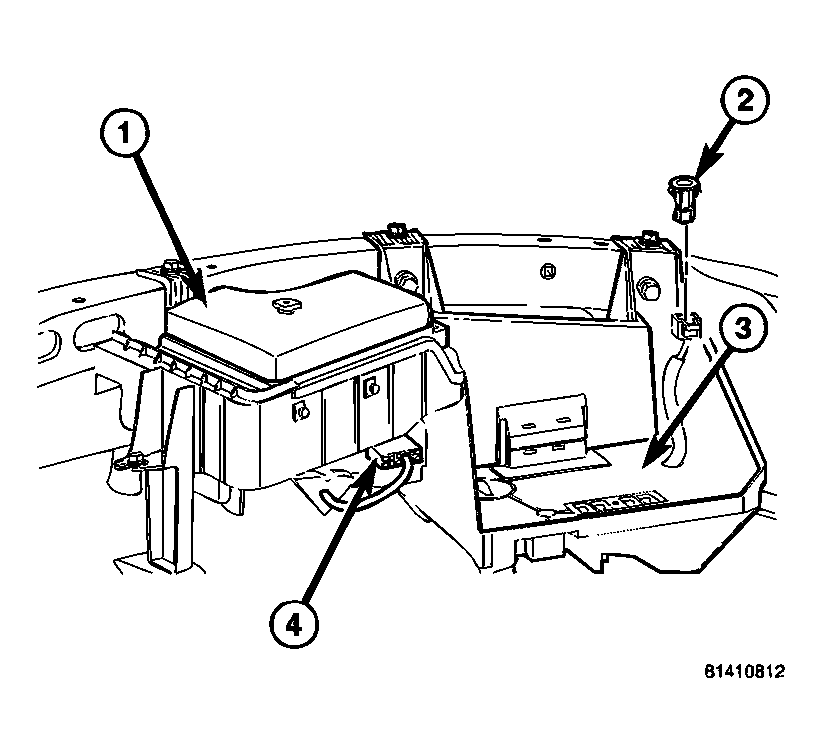

    Fig 10: Installing Integrated Power Module (IPM) (1)
    G04284048Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  14. Install the Integrated Power Module (IPM) (1). (Refer to INTEGRATED POWER MODULE ).
  15. Install the battery, (Refer to INSTALLATION ).
  16. Verify proper vehicle operation.
