Battery Tray: Removal

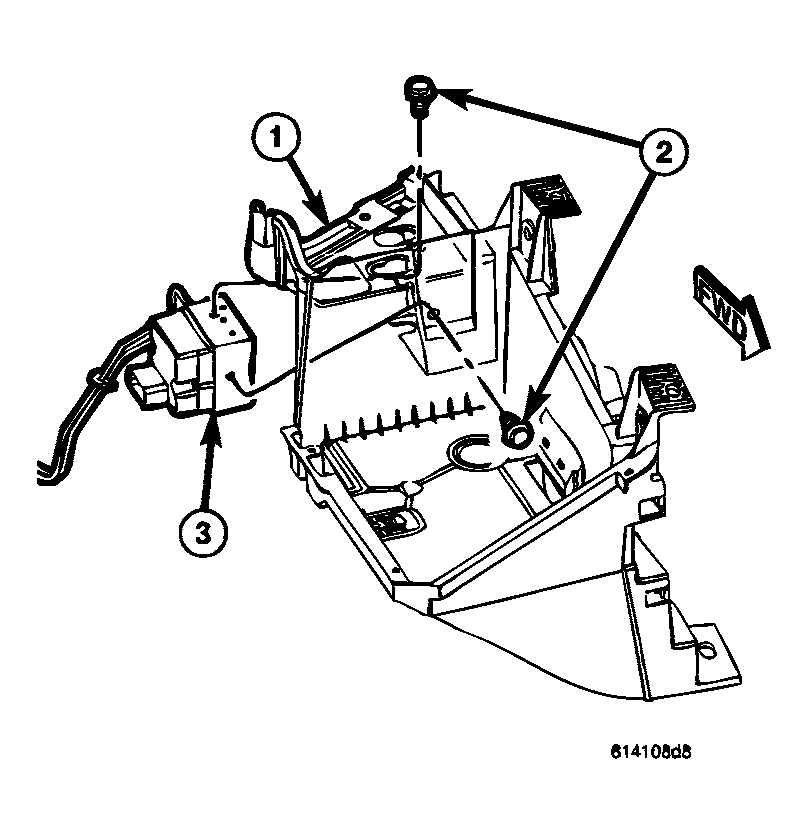

Fig 1: Identifying Integrated Power Module

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Disconnect and isolate the battery negative cable.
Remove the battery, (Refer to REMOVAL ).
Remove the Integrated Power Module (IPM). (Refer to INTEGRATED POWER MODULE ).

Fig 2: Removing Bolts From Battery Tray
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the Antilock Brake System (ABS) Hydraulic Control Unit (HCU) (3) bolts (2) from the battery tray (1).

Fig 3: Removing Battery Negative Cable Retaining Pushpins From Battery
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the battery negative cable retaining pushpins (5) from the battery tray.

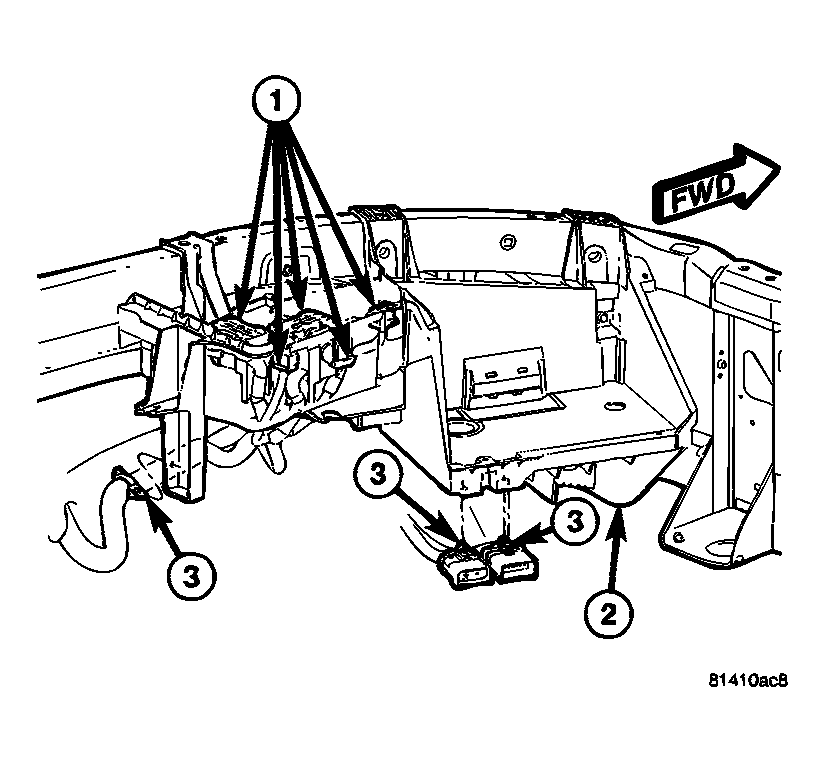

Fig 4: Removing Engine Compartment Wire Harness Retaining Pushpins From Battery Tray
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the engine compartment wire harness retaining pushpins (3) from the battery tray (2).

Fig 5: Identifying Left Headlamp Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the left headlamp assembly, (Refer to LAMP - FRONT COMBINATION ) .
Remove the battery tray bolts.

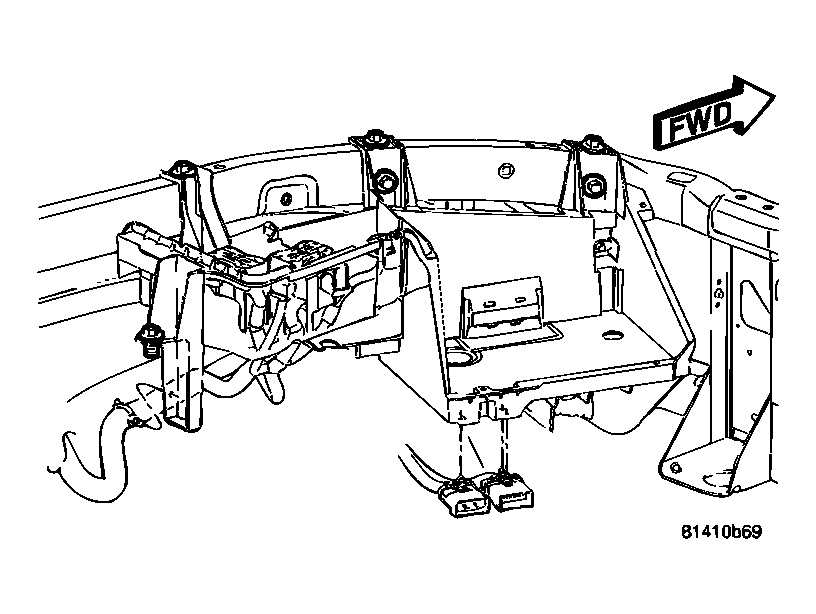

Fig 6: Identifying Battery Tray Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the six upper battery tray bolts.

Fig 7: Removing Upper Battery Tray Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Raise the vehicle on a hoist. (Refer to STANDARD PROCEDURE ).
Remove the left front fender liner, (Refer to REMOVAL ).
NOTE: The middle bolt hole is to remain open for a front fender liner fastener (1).
Remove the lower battery tray mounting bolts (2).

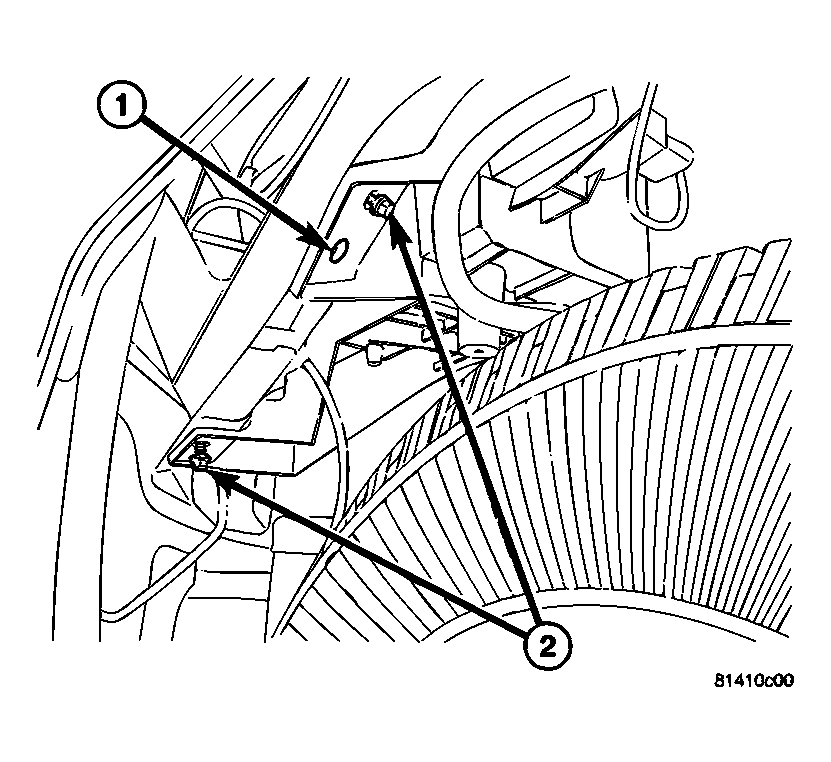

Fig 8: Removing Lower Battery Tray Mounting Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Lower the vehicle.
Remove the battery tray (2) from the vehicle.
