Engine Electrical: Generator: Removal

3.7L / 4.7L

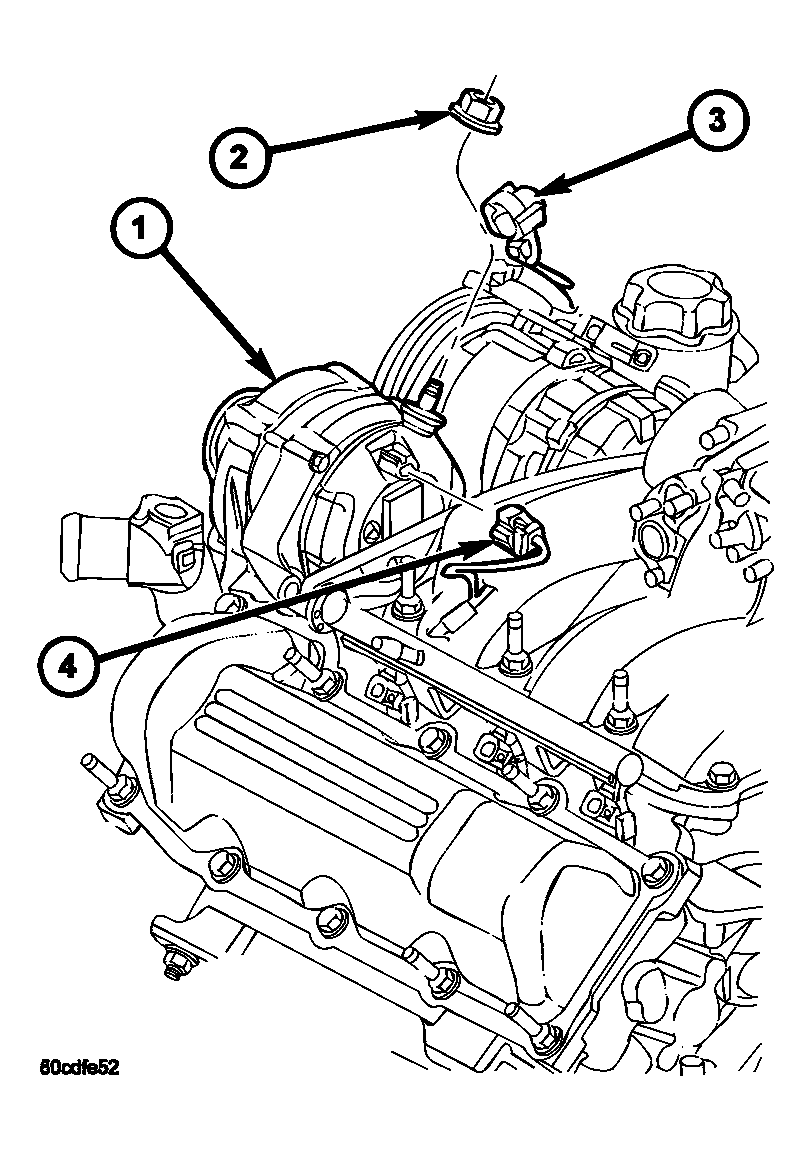

Fig 1: Removing Generator Drive Belt
G04284052Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
WARNING: DISCONNECT NEGATIVE CABLE FROM BATTERY BEFORE REMOVING BATTERY OUTPUT WIRE (B+ WIRE) FROM GENERATOR. FAILURE TO DO SO CAN RESULT IN INJURY OR DAMAGE TO ELECTRICAL SYSTEM.
  1. Disconnect negative battery cable at battery.
  2. Remove generator drive belt. Refer to BELTS - DRIVE for procedure.
  3. Unsnap plastic insulator cap (3) from B+ output terminal.
  4. Remove B+ terminal mounting nut (2) at rear of generator. Disconnect terminal from generator.
  5. Disconnect field wire connector (4) at rear of generator by pushing on connector tab.

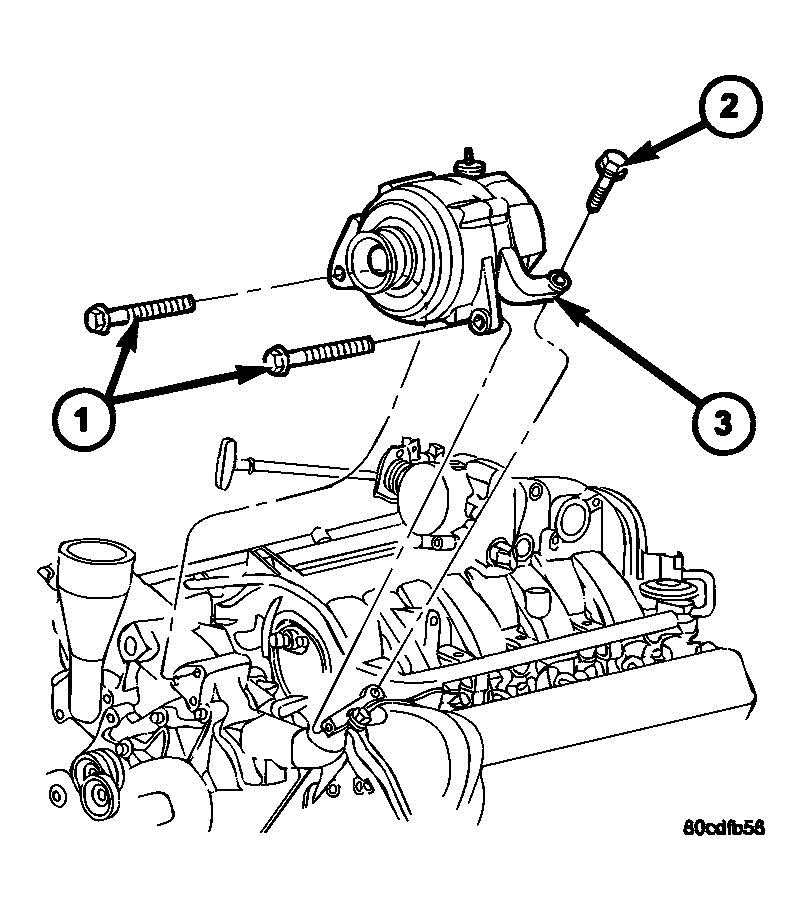

    Fig 2: Identifying Plastic Insulator Cap (3)
    G04284053Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  6. Remove 1 rear vertical generator mounting bolt (2).
  7. Remove 2 front horizontal generator mounting bolts (1).
  8. Remove generator from vehicle.
