Integrated Power Module: Removal

  1. Disconnect the battery negative cable.
  2. Remove the Integrated Power Module (IPM) cover and remove the nut (5) from the IPM B+ terminal stud (6).
  3. Remove the battery positive cable (4).
  4. Remove the IPM (2) push pin fasteners (1) from the battery tray (4).
  5. Move the IPM (1) forward and up to disengage the locking tabs (2) from the battery tray locating slots (4).
  6. Lift the IPM up to access and disconnect the wiring harness connectors from the Power Distribution Center (1) and Front Control Module (2).
  7. Remove the IPM assembly from the vehicle.

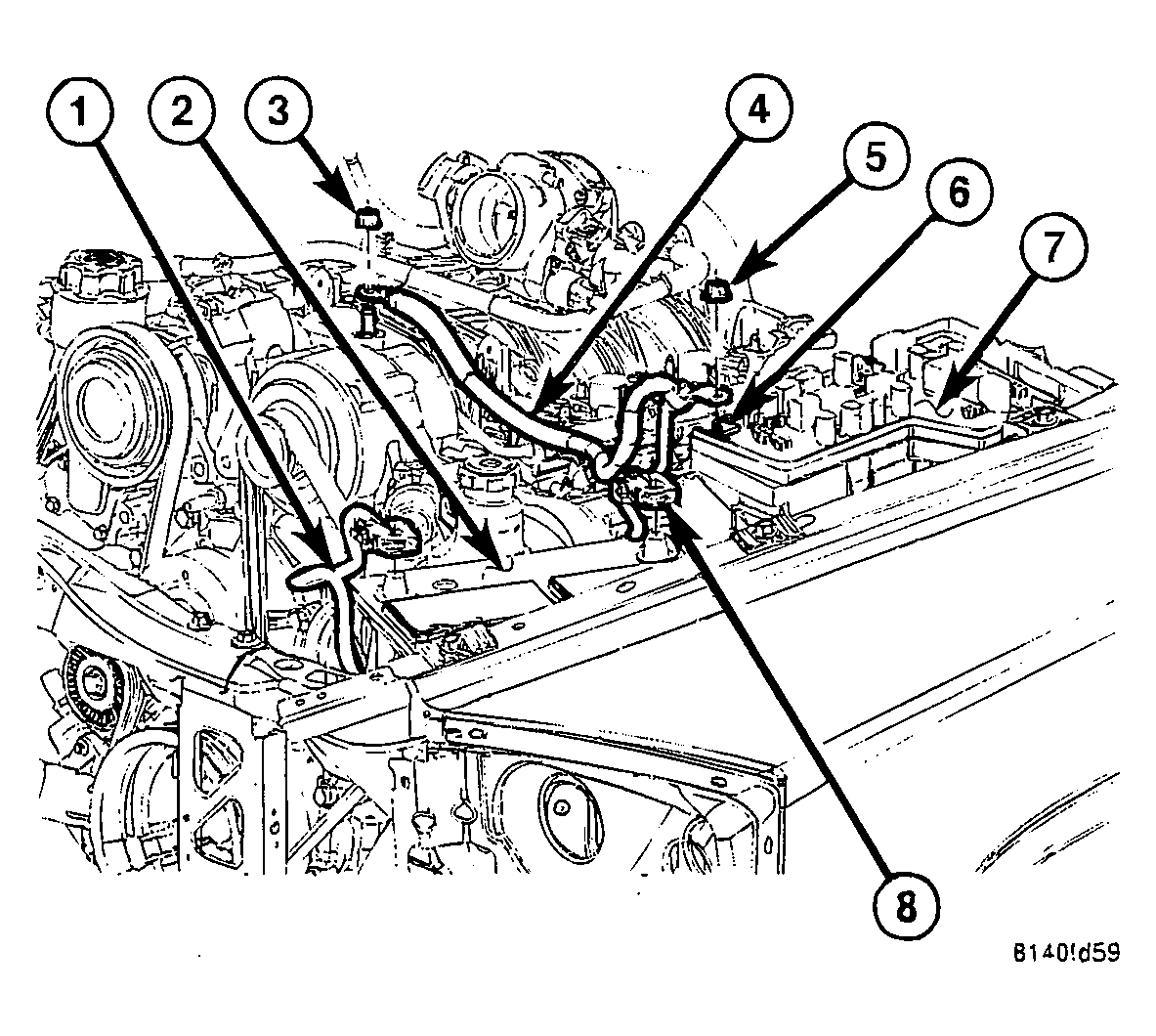

    Fig 1: Removal & Installing Integrated Power Module
    G00448675Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

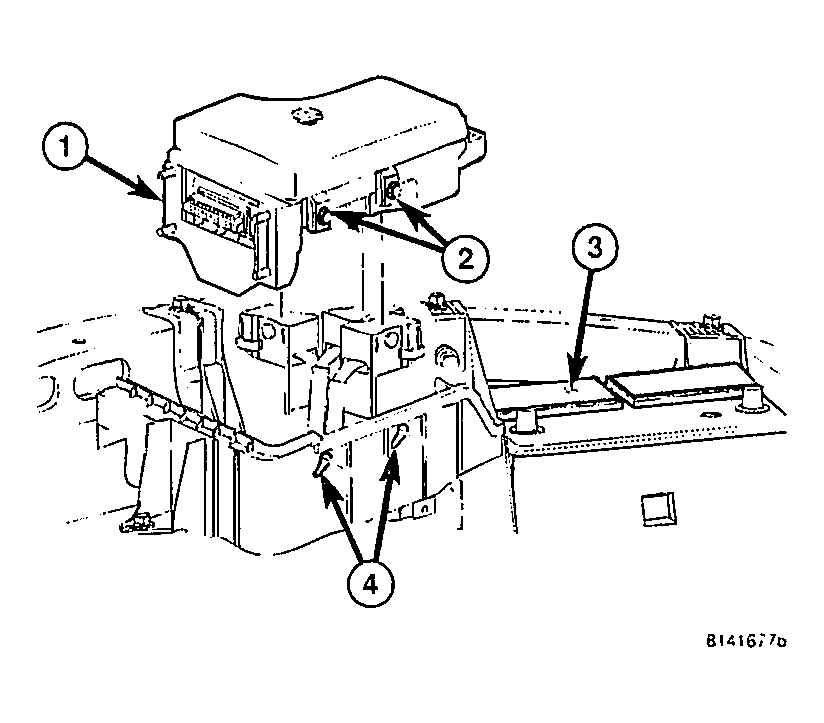

    Fig 2: Locating Locking Tabs & Slots
    G00448676Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
