Sensor - Battery Temperature: Installation

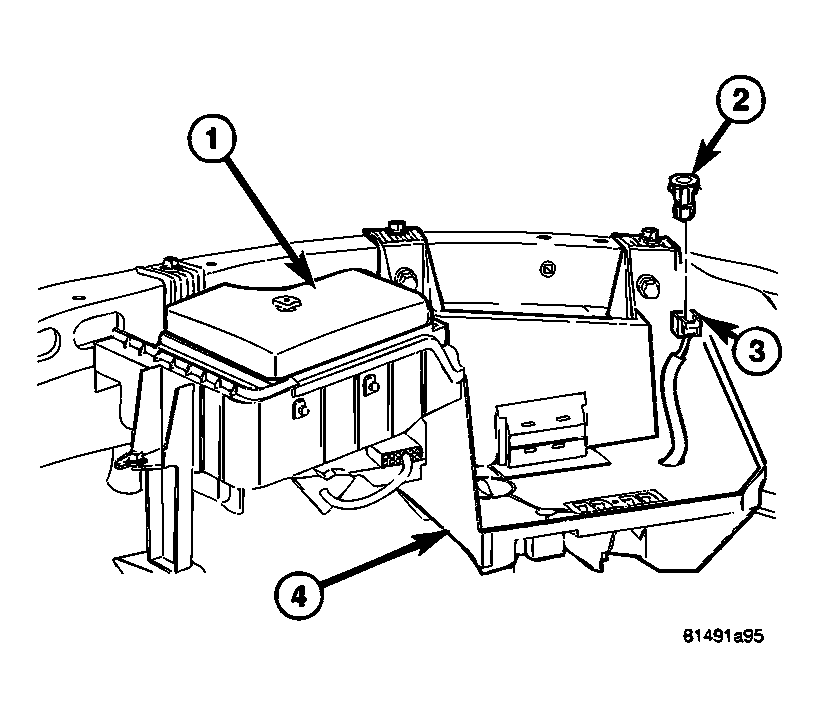

Fig 1: Installing Engine Wire Harness (3) Through Hole Top Battery Tray And Attach Sensor (2)
G04284051Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  1. Feed engine wire harness (3) through hole in top of battery tray and attach sensor (2).
  2. Press sensor (2) into hole of battery tray (4).
  3. Install battery. Refer to BATTERY  for procedures.
