Sensor - Battery Temperature: Removal

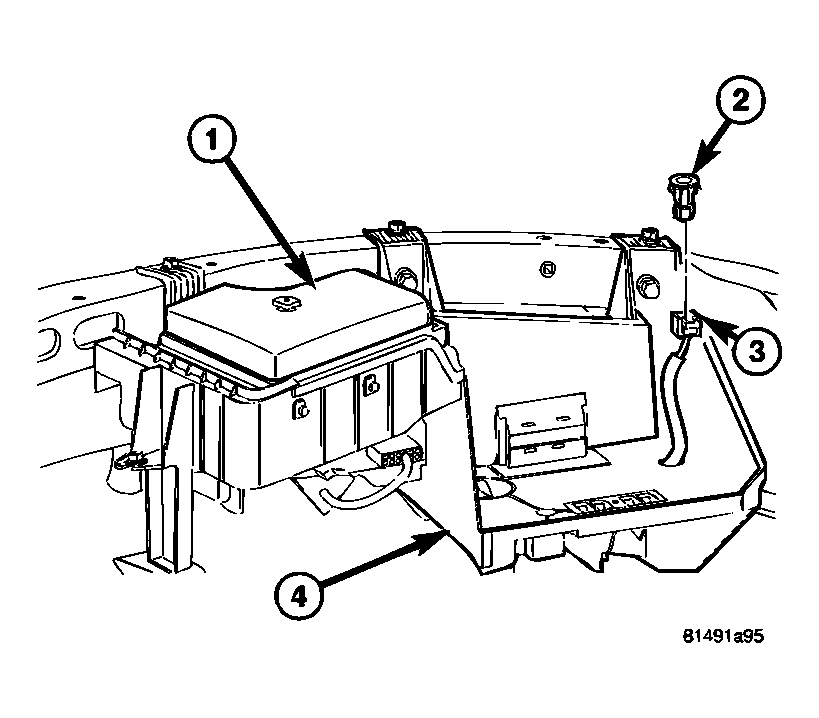

Fig 1: Removing Battery Temperature Sensor (2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The battery temperature sensor (2) is located under vehicle battery and is attached to a mounting hole on battery tray (4).

1. Remove battery. Refer to BATTERY  for procedures.
2. Disconnect sensor (2) from engine wire harness (3).
3. Pry sensor straight up from battery tray mounting hole.
