Accelerator Pedal Position Sensor
>>
Removal And Installation < 2.4L Engine >
Removal And Installation < 2.4L Engine >

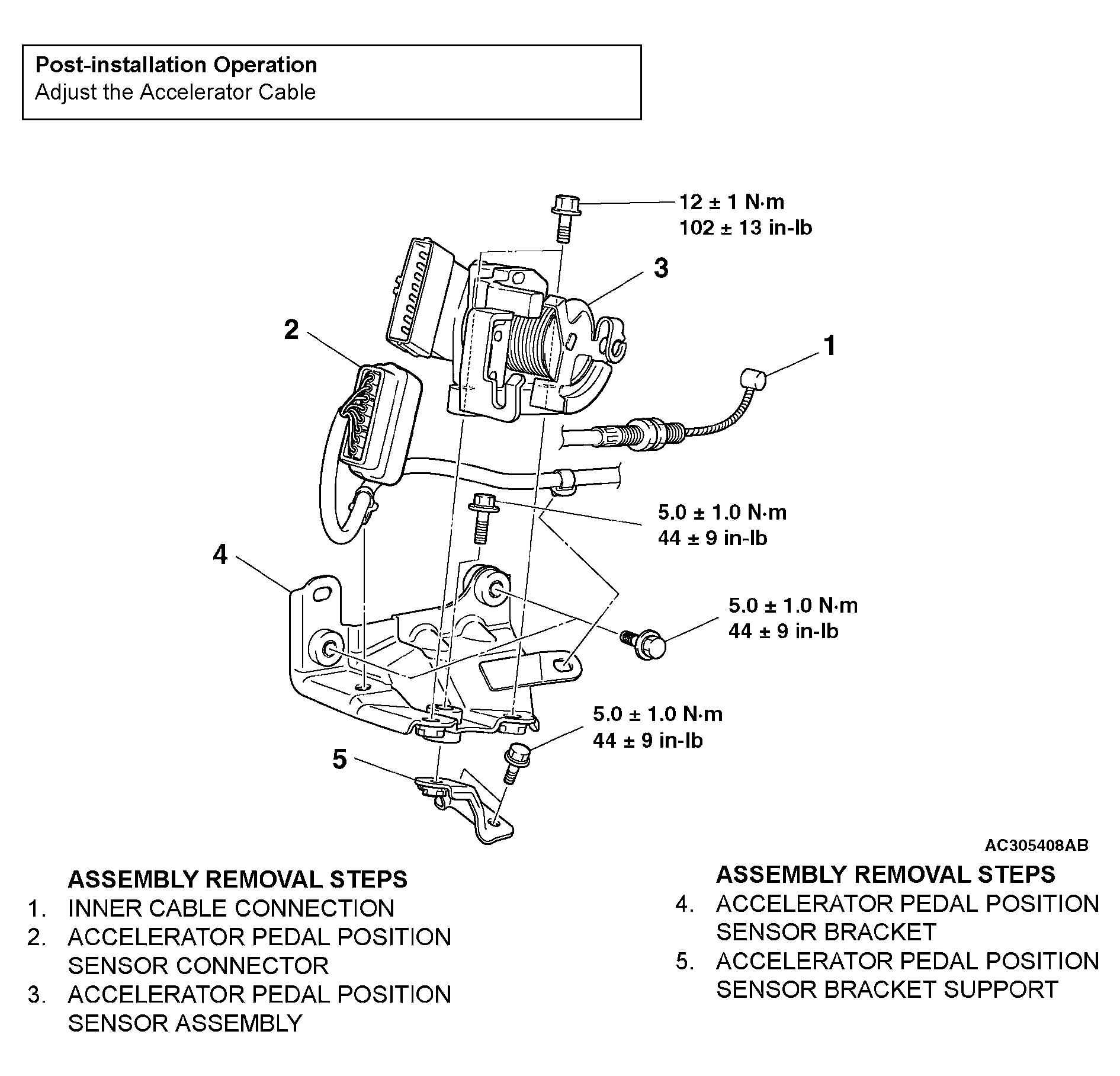

Fig 1: Removing/Installing Accelerator Pedal Position Sensor With Torque Specifications (2.4L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
