Home >> Mitsubishi >> 2019 >> Mirage RF >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control >> Special Tools

Special Tools

Tool Tool number and name Supersession Application
G09628470Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  1. MB992744
  2. MB992745
  3. MB992746
  4. MB992747
  5. MB992748
  1. Vehicle communication interface-Lite (V.C.I.-Lite)
  2. V.C.I.-Lite main harness A (for vehicles with CAN communication)
  3. V.C.I.-Lite main harness B (for vehicles without CAN communication)
  4. V.C.I.-Lite USB cable short
  5. V.C.I.-Lite USB cable long
 -
CAUTION: V.C.I.-Lite main harness A (MB992745) should be used. V.C.I.-Lite main harness B (MB992746) not be used for this vehicle.
Checking diagnostic trouble code (DTC)

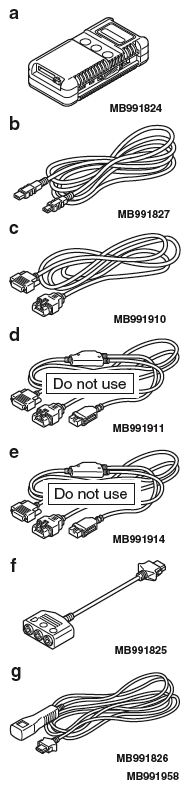

G06244449Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991958
  1. MB991824
  2. MB991827
  3. MB991910
  4. MB991911
  5. MB991914
  6. MB991825
  7. MB991826

M.U.T.-III sub assembly
  1. Vehicle Communication Interface (V.C.I.)
  2. M.U.T.-III USB Cable c: M.U.T.-III Main Harness A (Vehicles with CAN communication system)
  3. M.U.T.-III Main Harness B (Vehicles without CAN communication system) e: M.U.T.-III Main Harness C (for Chrysler models only)
  4. M.U.T.-III Measurement Adapter
  5. M.U.T.-III Trigger Harness
 MB991824-KIT
NOTE: g: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
CAUTION: M.U.T.-III main harness A (MB991910) should be used. M.U.T.-III main harness B and C (MB991911 and MB991914) should not be used for this vehicle.
Checking diagnostic trouble code (DTC)
