EGR Function Chart

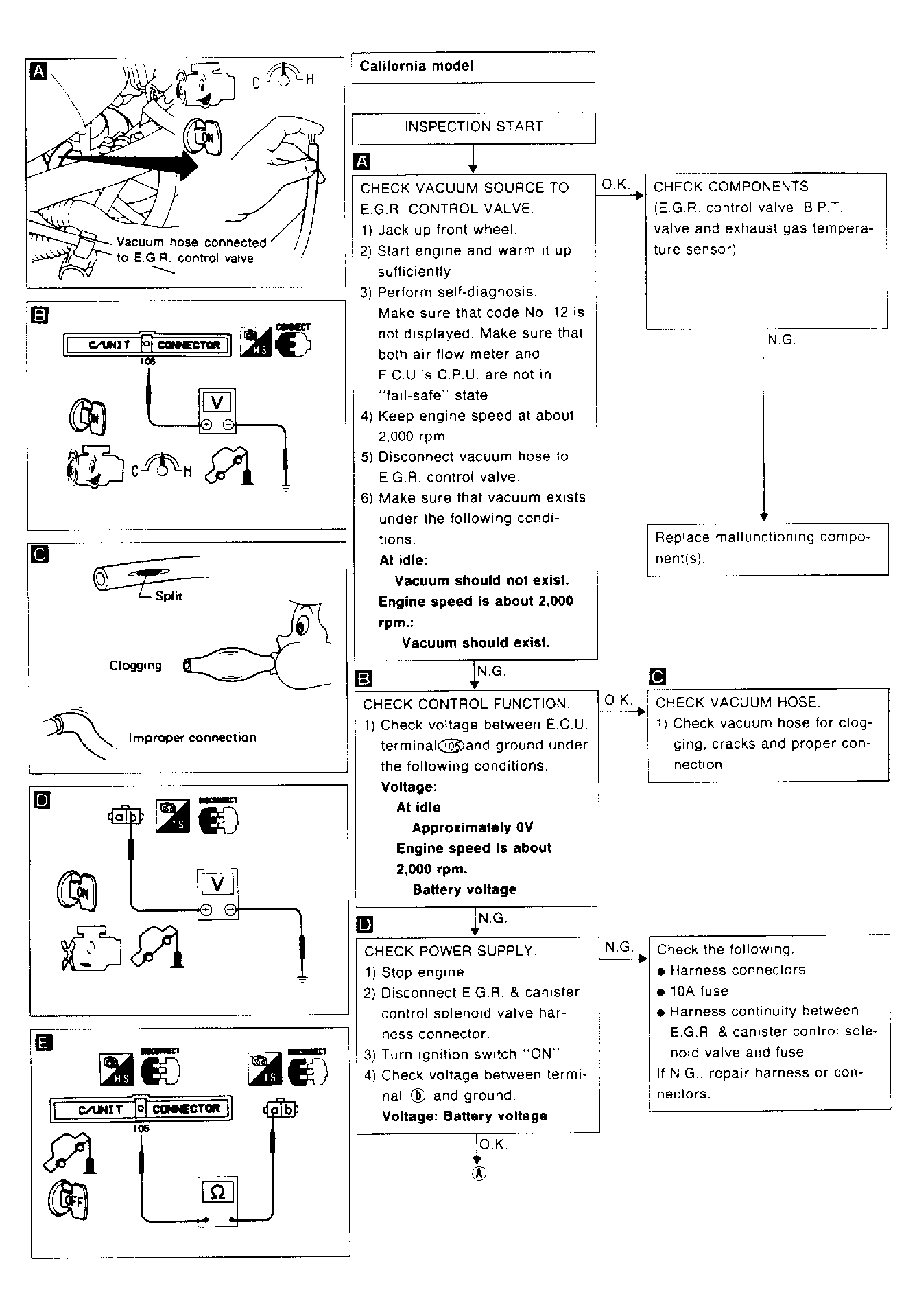

Fig 1: EGR Function Diagnostic Chart (1 of 3)
G91H17209Courtesy of NISSAN MOTOR CO., U.S.A.

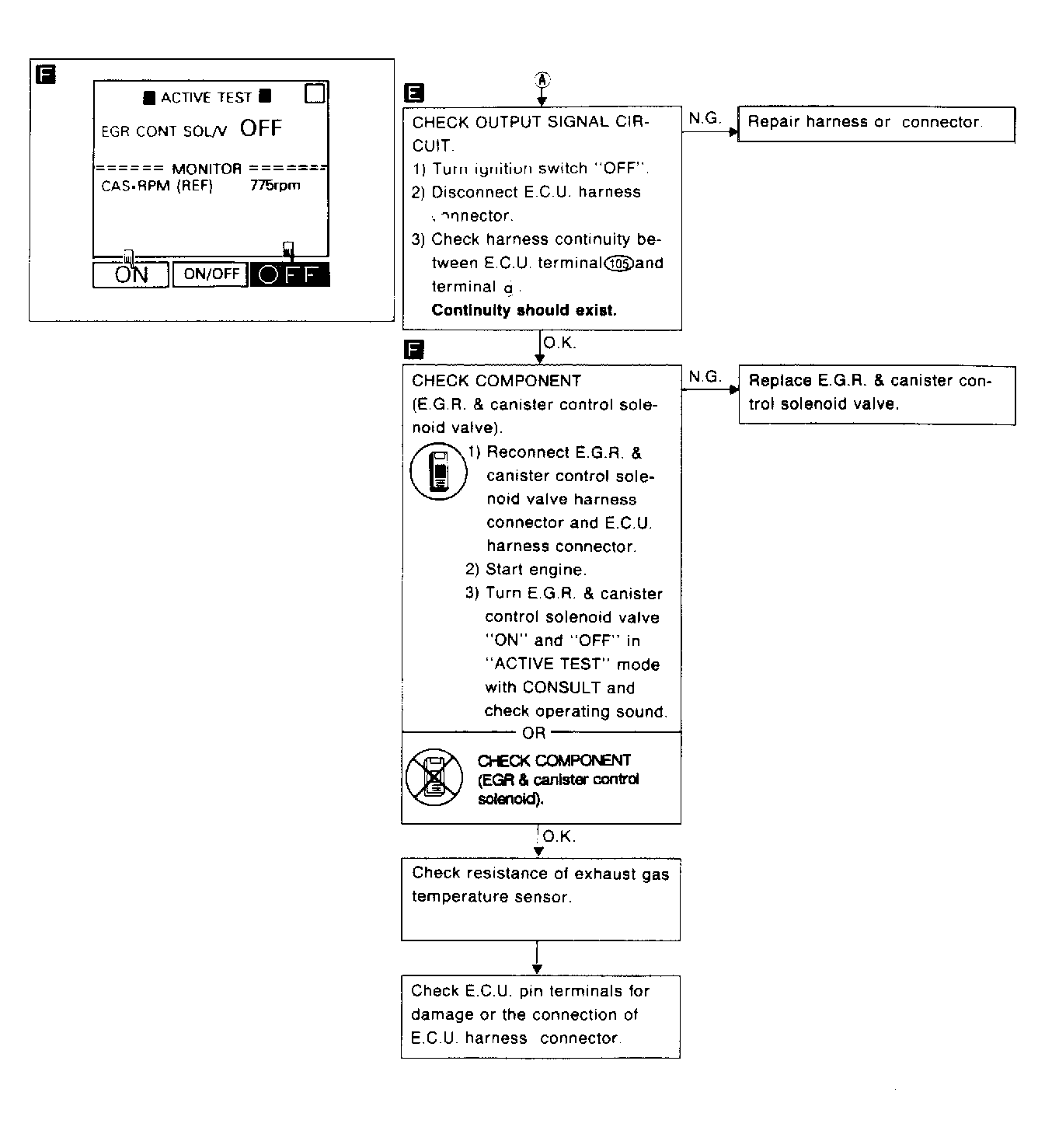

Fig 2: EGR Function Diagnostic Chart (2 of 3)
G91C17188Courtesy of NISSAN MOTOR CO., U.S.A.

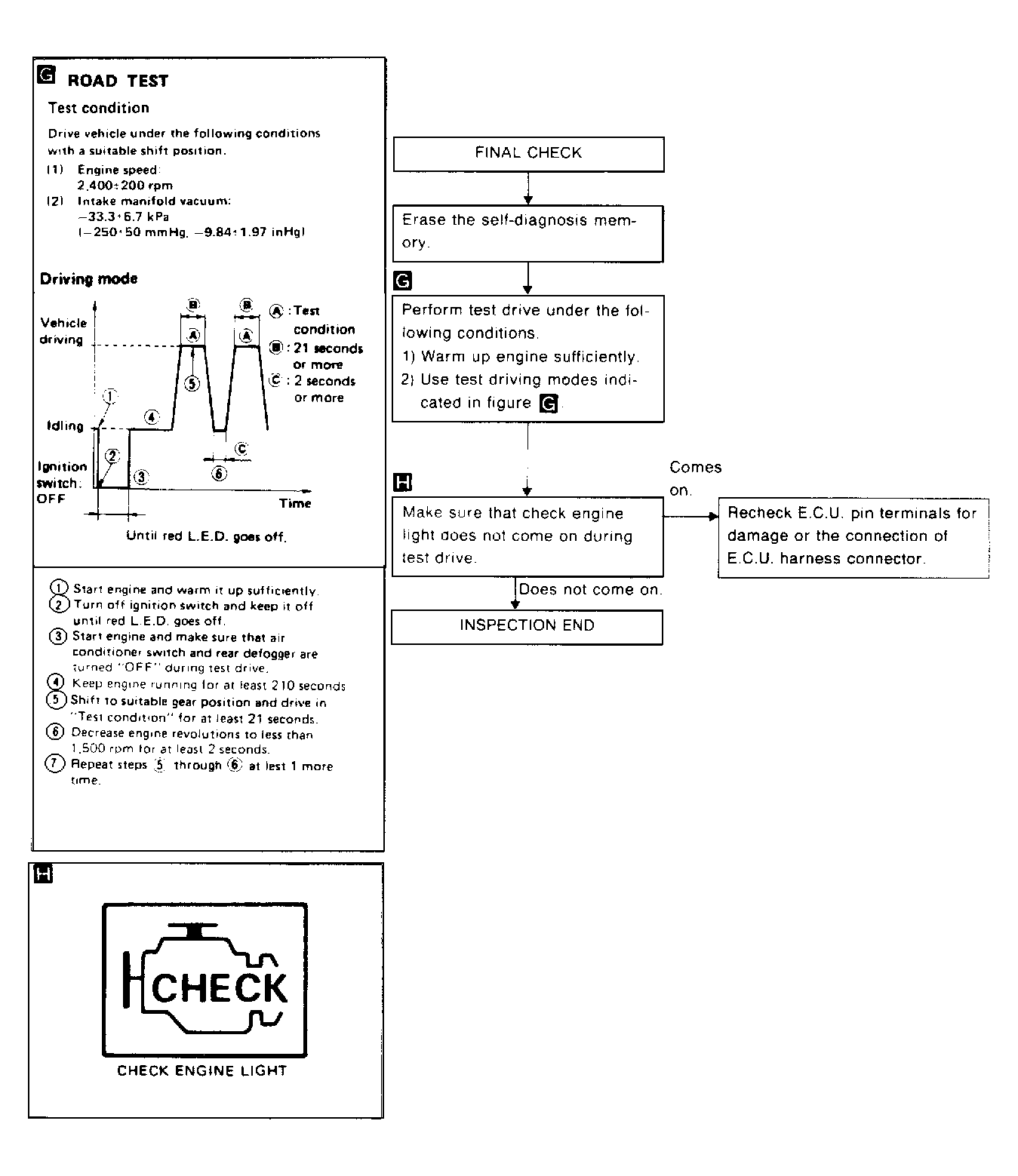

Fig 3: EGR Function Diagnostic Chart (3 of 3)
G91B17187Courtesy of NISSAN MOTOR CO., U.S.A.
