Engine Controls - System/Component Tests
>>
Diagnostic Charts
>>
Ecu Power Source & Ground Chart
Ecu Power Source & Ground Chart

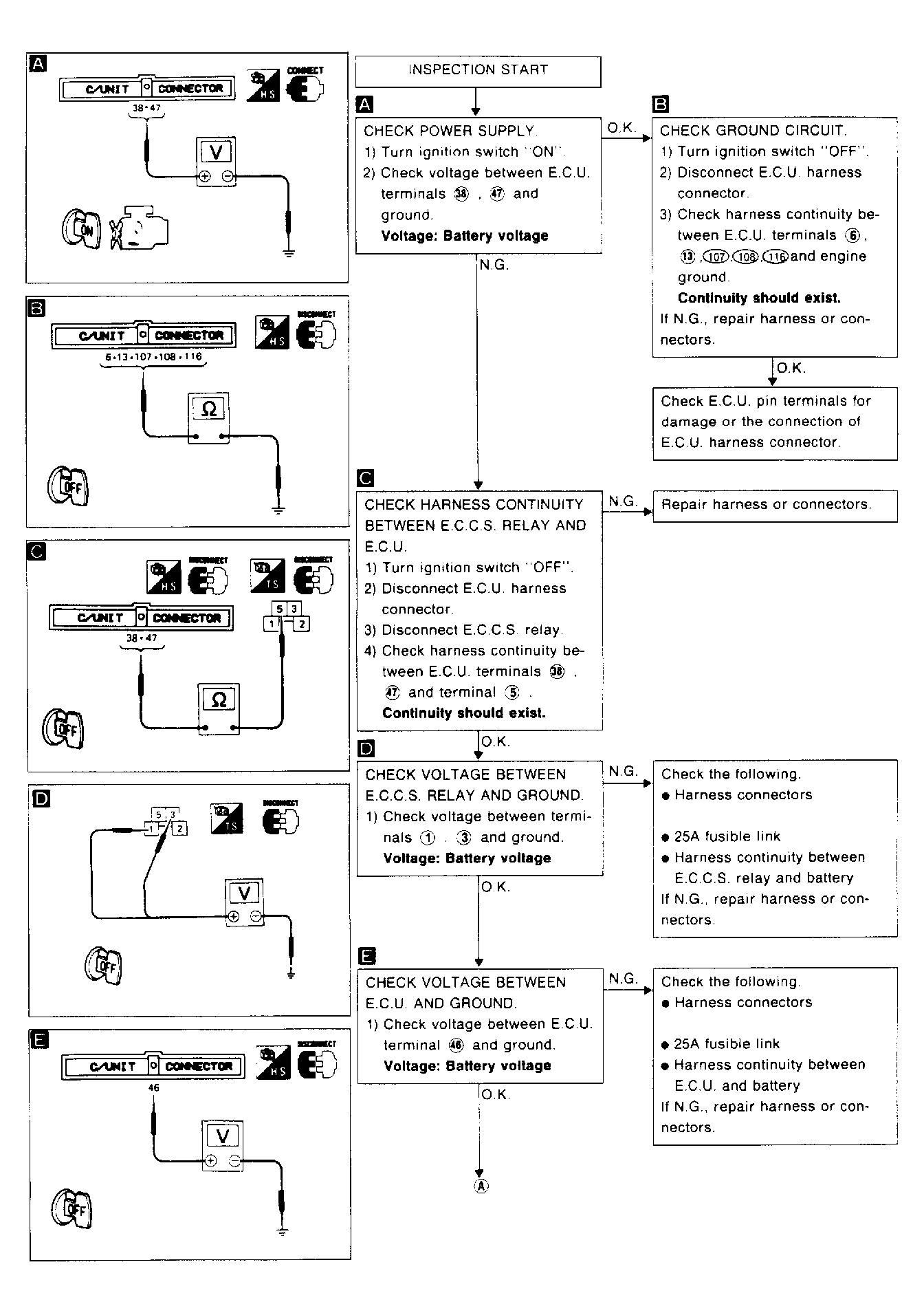

Fig 1: ECU Power Source & Ground Diagnostic Chart (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: ECU Power Source & Ground Diagnostic Chart (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
