Power Steering Oil Pressure Switch Chart

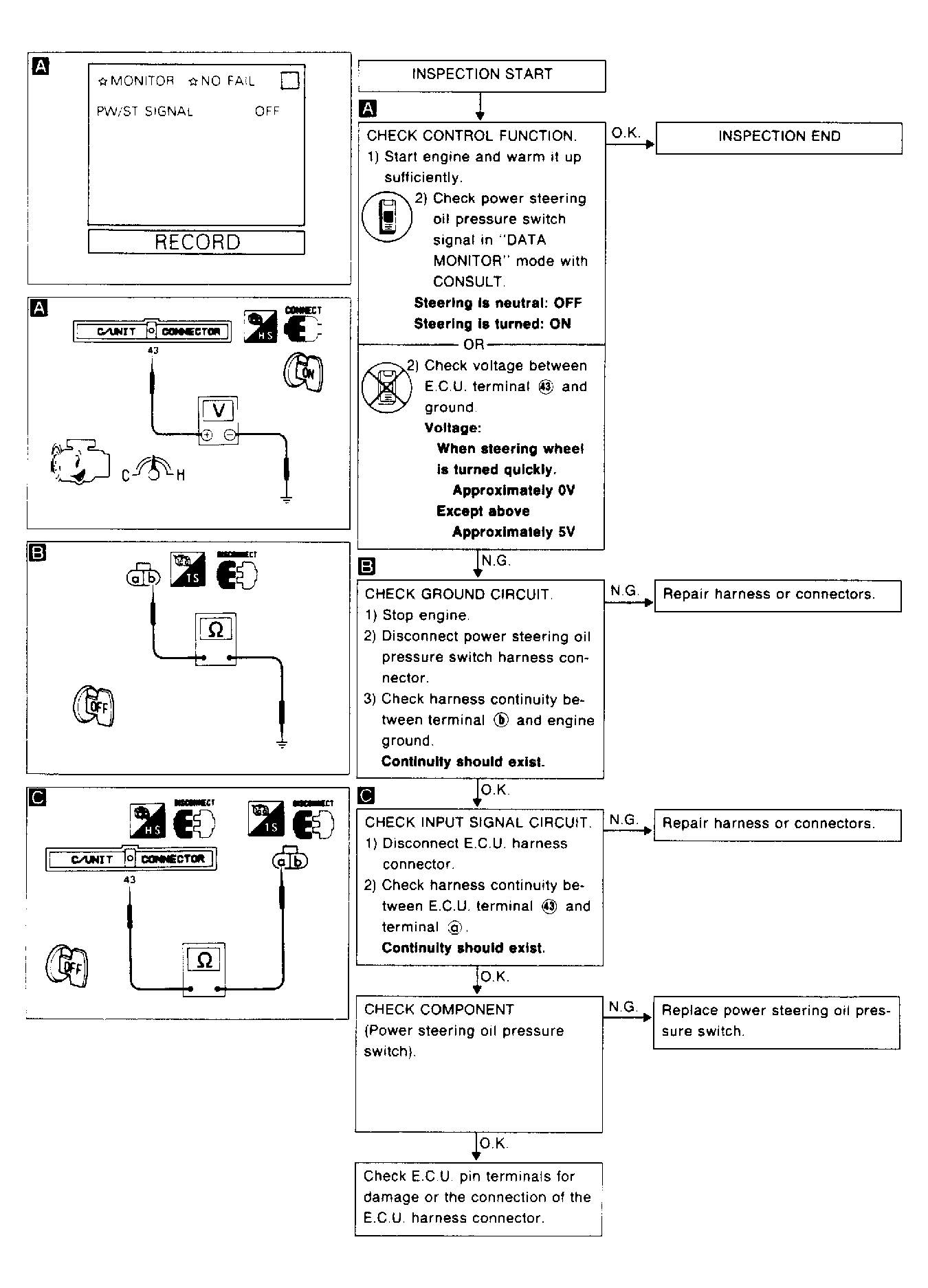

Fig 1: Power Steering Oil Pressure Switch Diagnostic Chart

G91B17203

Courtesy of NISSAN MOTOR CO., U.S.A.
