Code 12: Mass Airflow Sensor

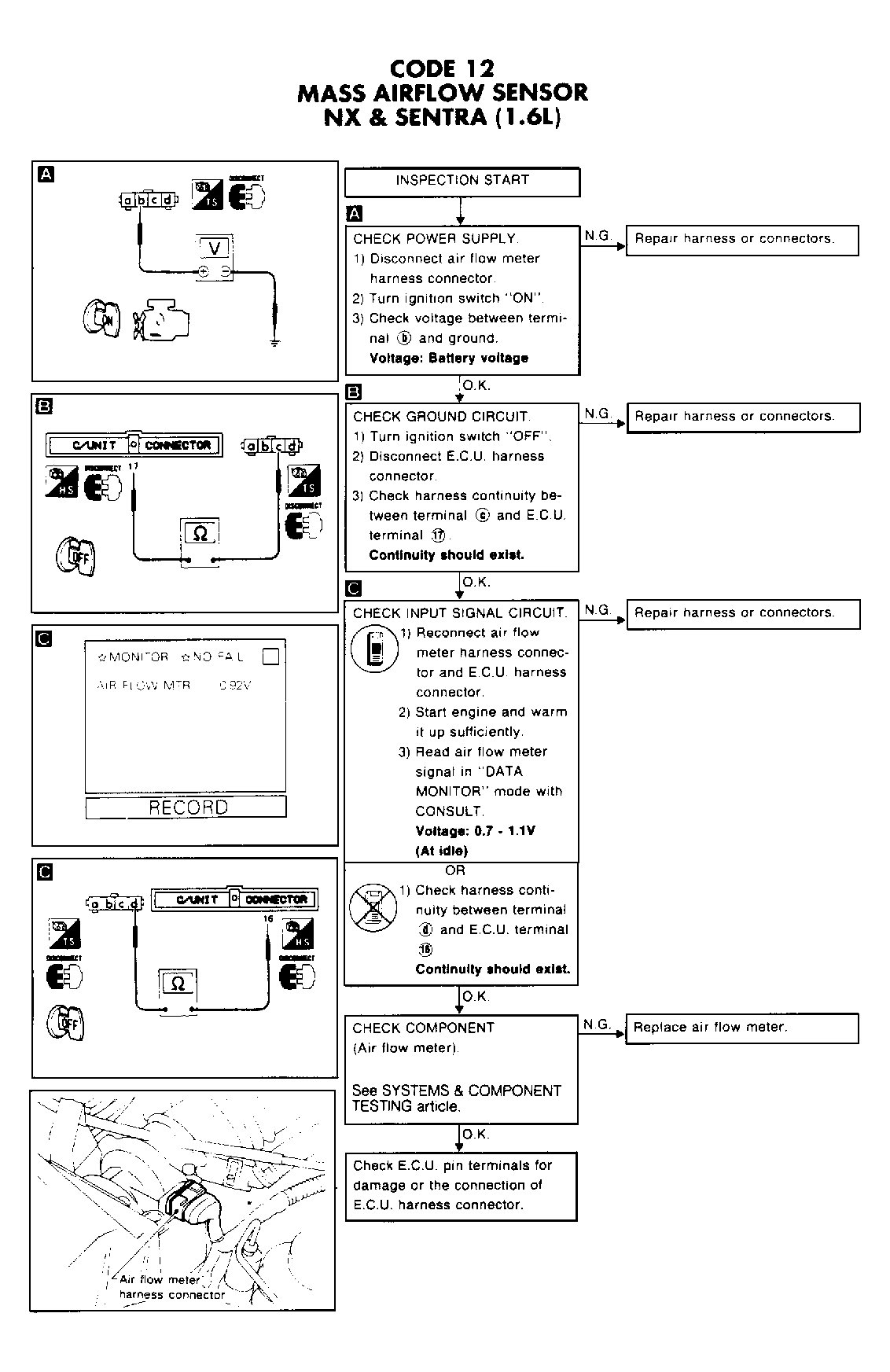

Fig 1: Code 12: Mass Airflow Sensor Test (1.6L)

G91F16571

Courtesy of NISSAN MOTOR CO., U.S.A.

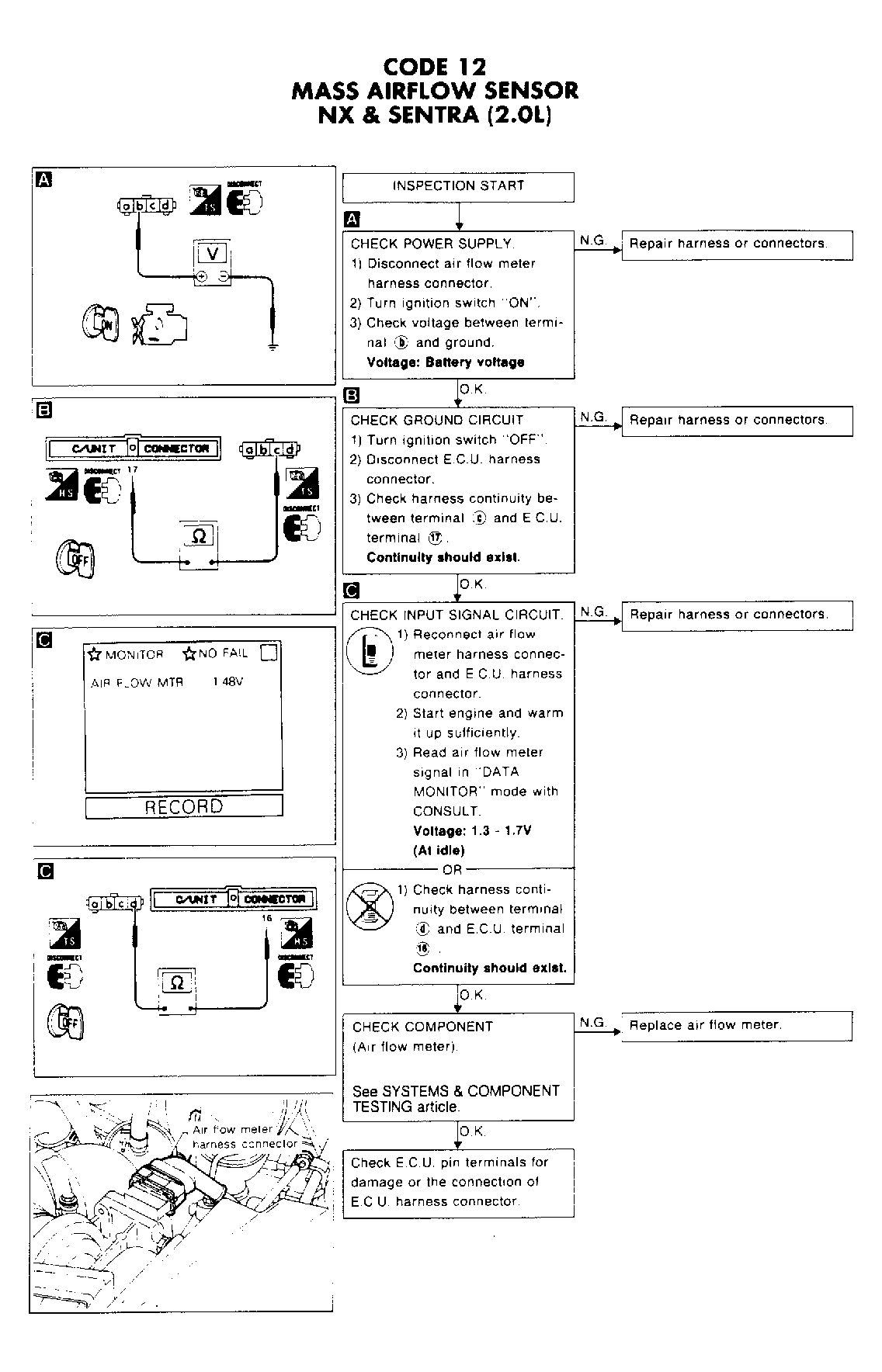

Fig 2: Code 12: Mass Airflow Sensor Test (2.0L)

G91G16572

Courtesy of NISSAN MOTOR CO., U.S.A.
