Home >> Nissan-Datsun >> 1991 >> Sentra SE-R >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes >> Code Charts >> Code 13: Coolant Temperature Sensor

Code 13: Coolant Temperature Sensor

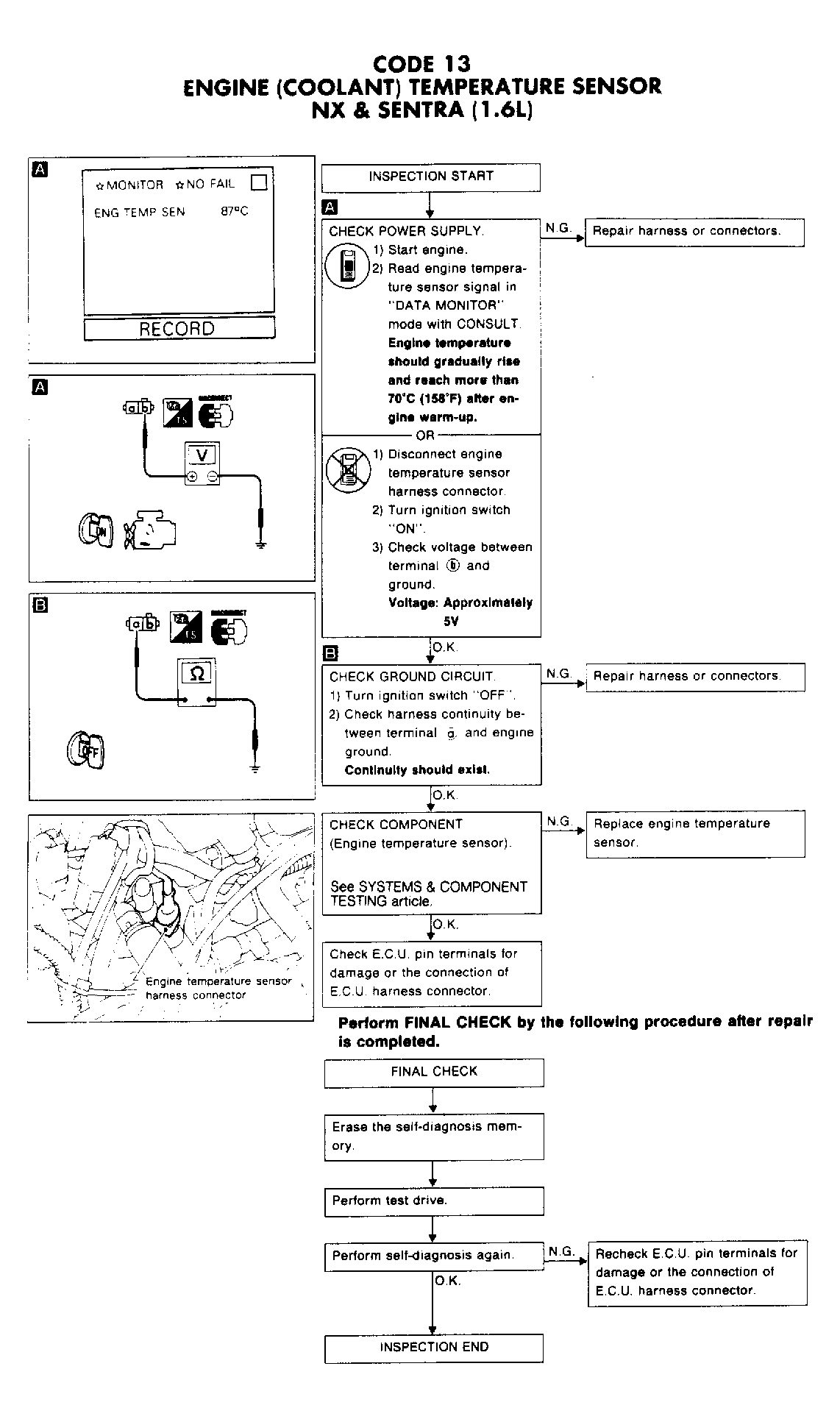

Fig 1: Code 13: Coolant Temperature Sensor Test (1.6L)
G91I16574Courtesy of NISSAN MOTOR CO., U.S.A.

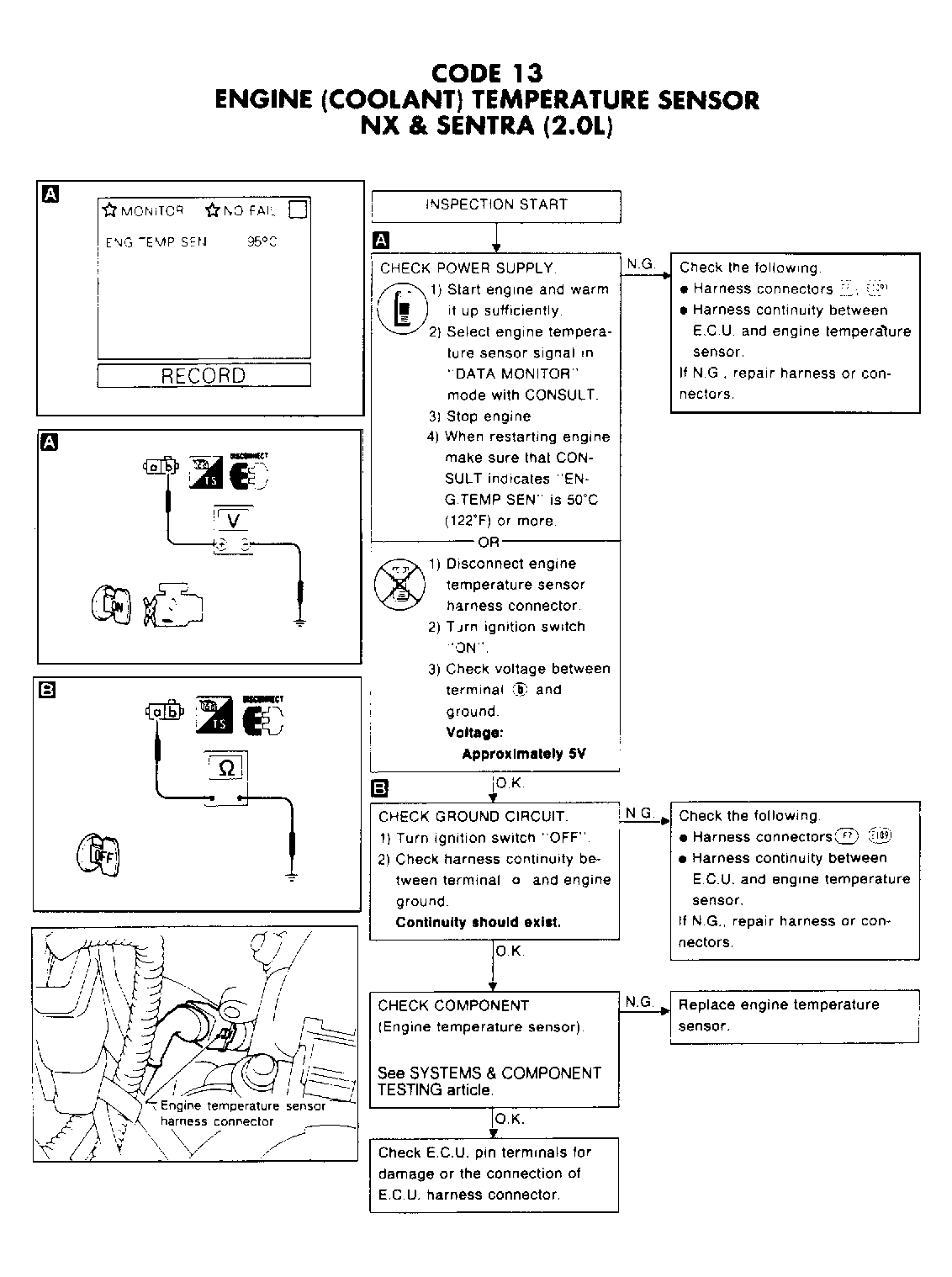

Fig 2: Code 13: Coolant Temperature Sensor Test (2.0L)
G91J16575Courtesy of NISSAN MOTOR CO., U.S.A.
