Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

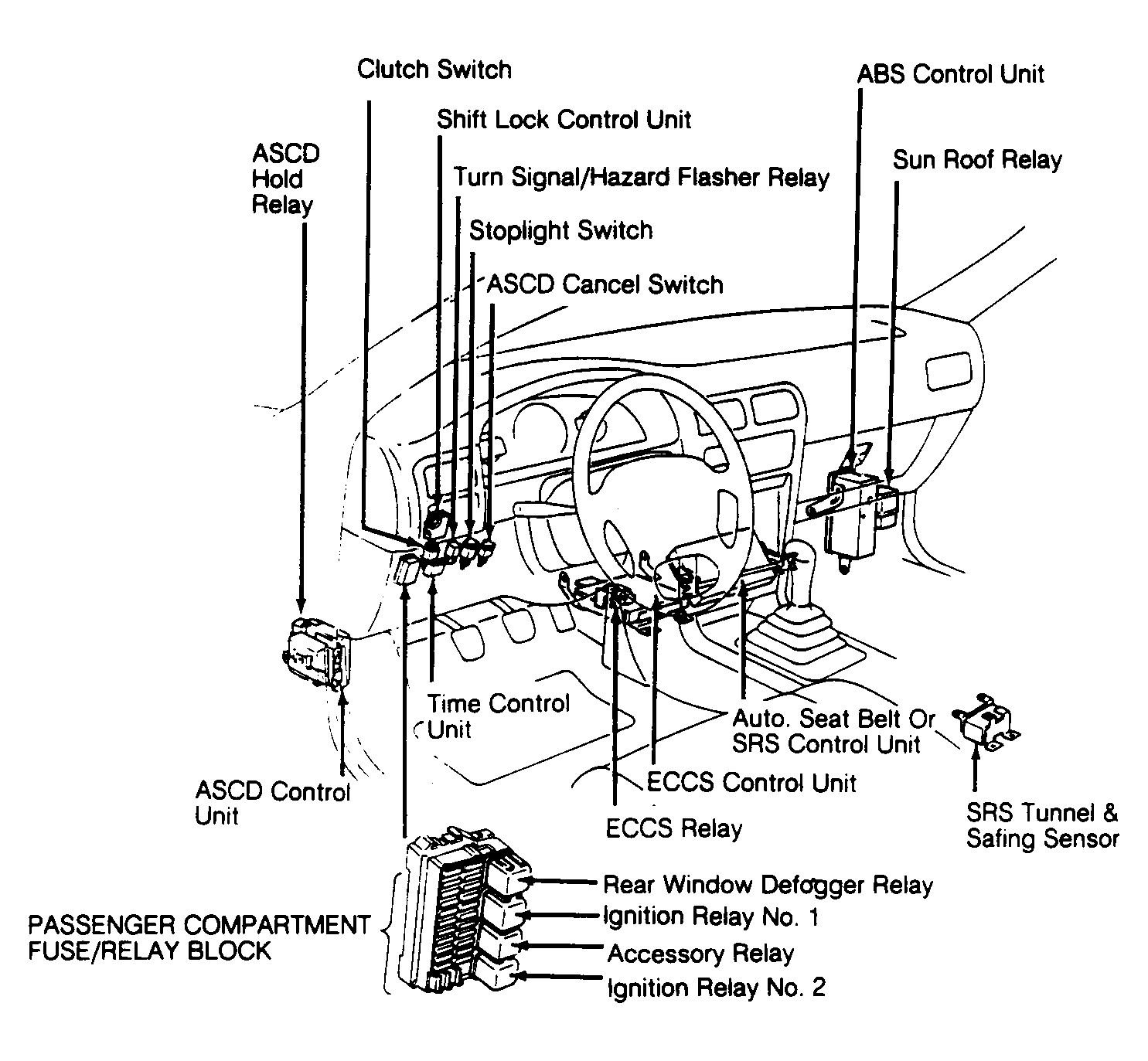

Fig 1: Component Locations (1 Of 5)
G92H16540

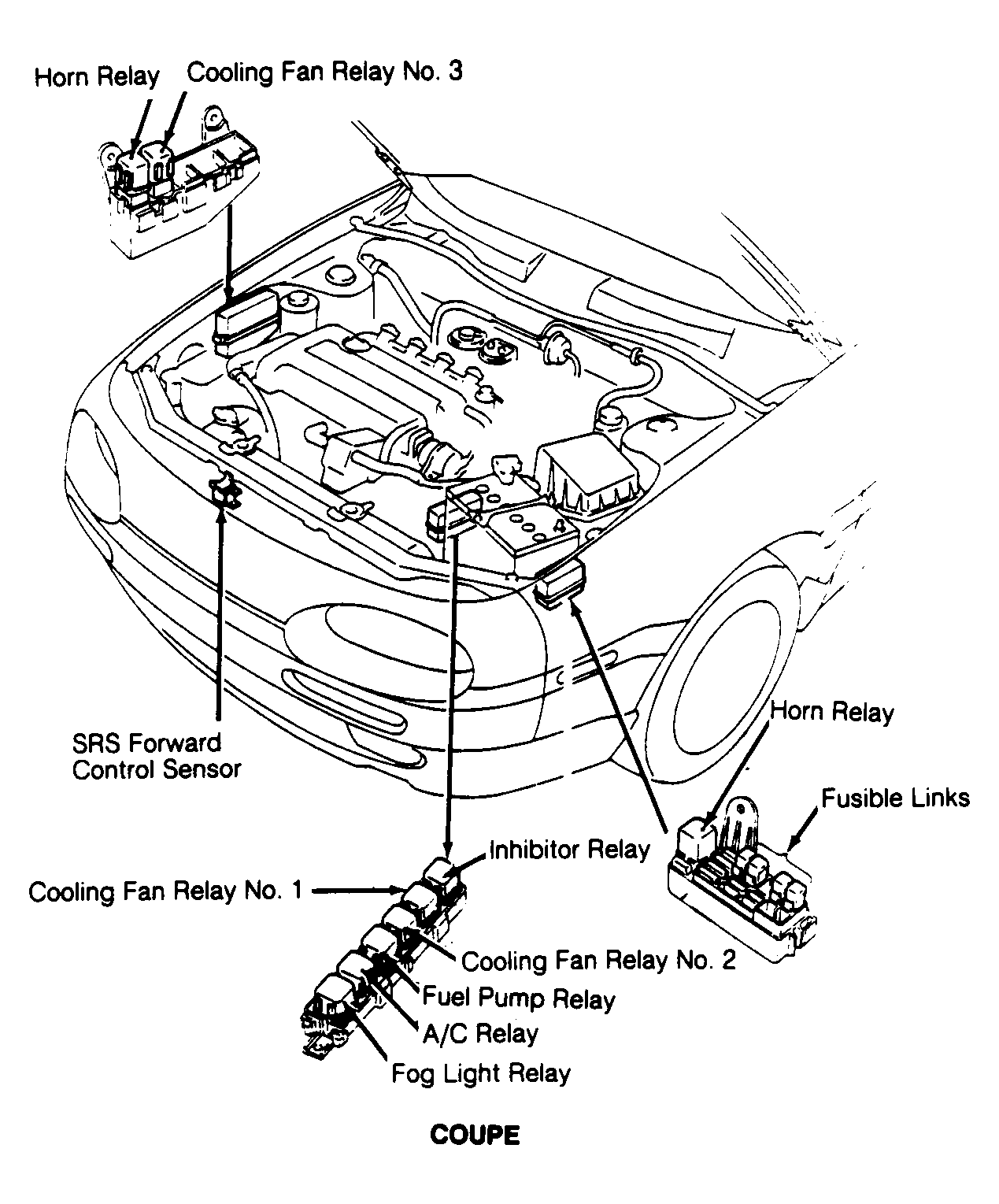

Fig 2: Component Locations (2 Of 5)
G92A16543

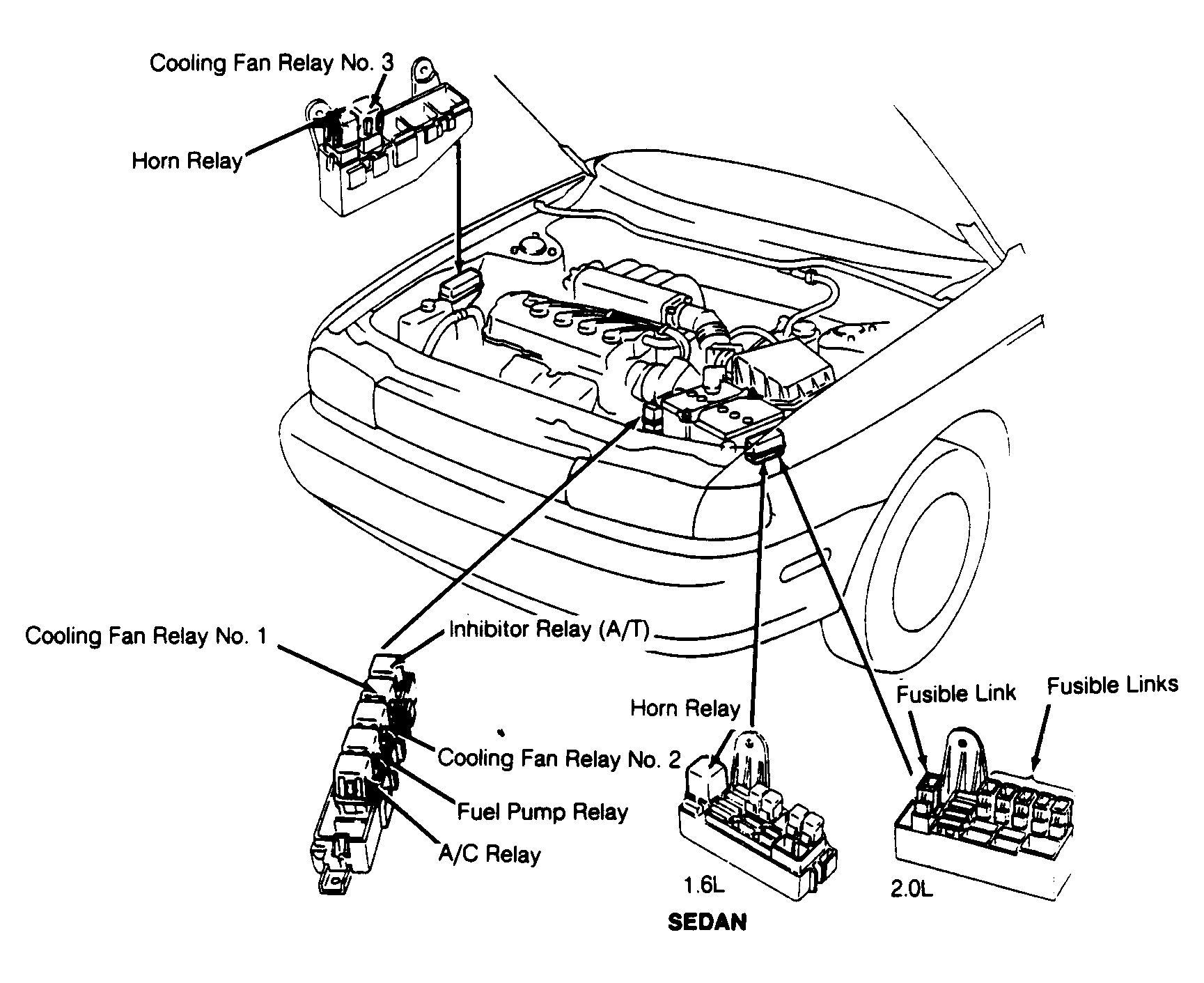

Fig 3: Component Locations (3 Of 5)
G92B16544

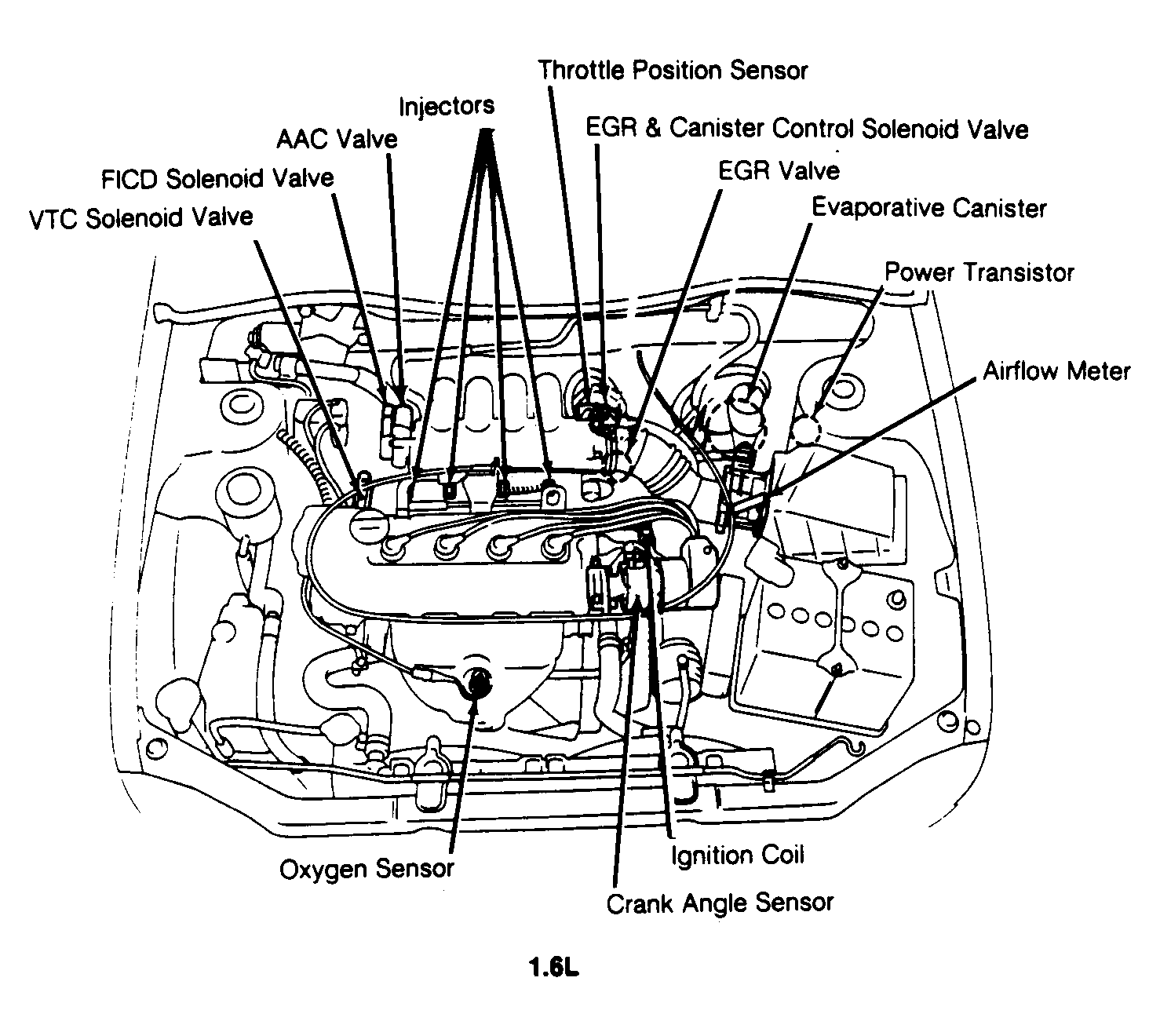

Fig 4: Component Locations (4 Of 5)
G92I16541

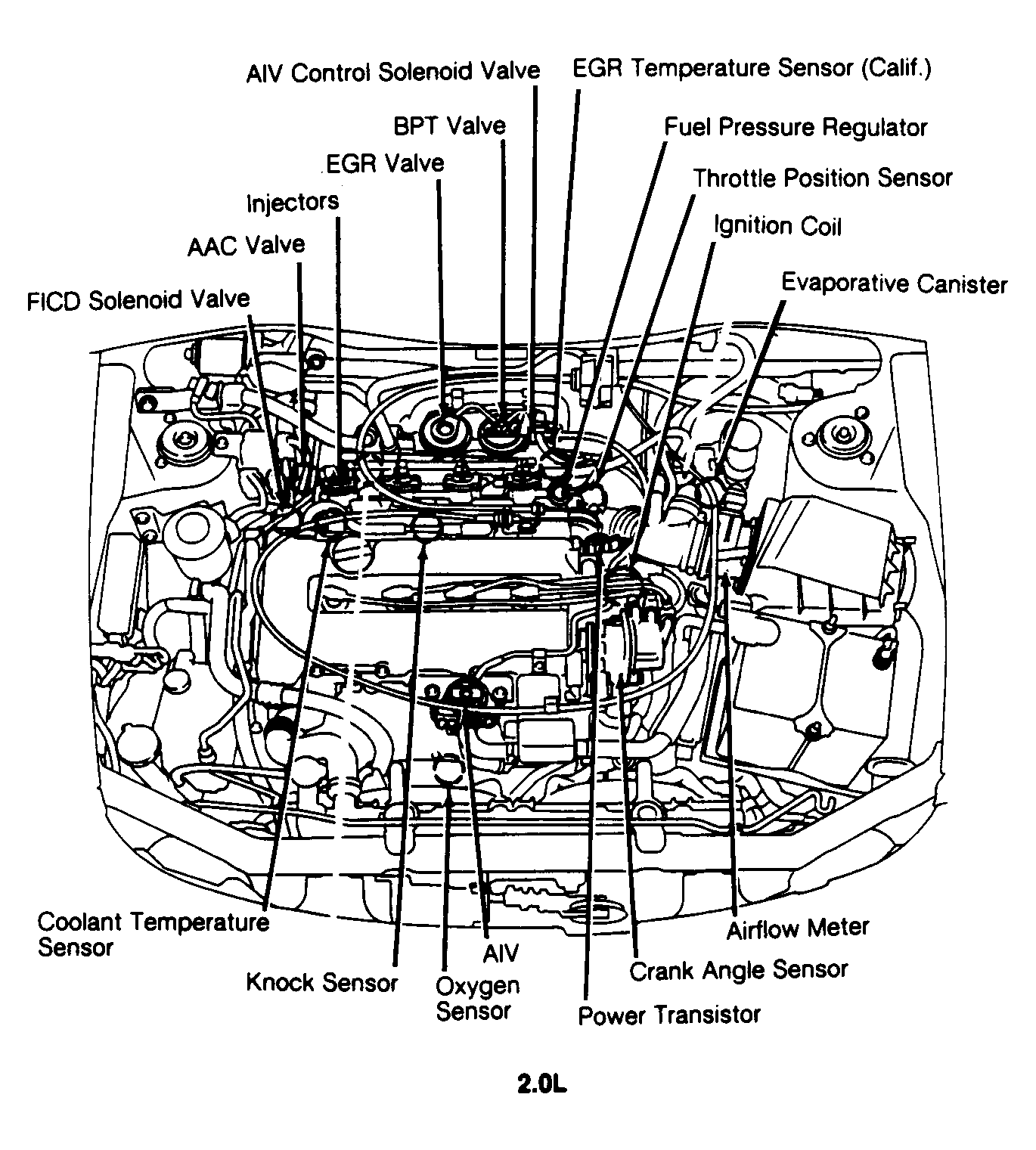

Fig 5: Component Locations (5 Of 5)
G92J16542
