Air Injection Valve Chart

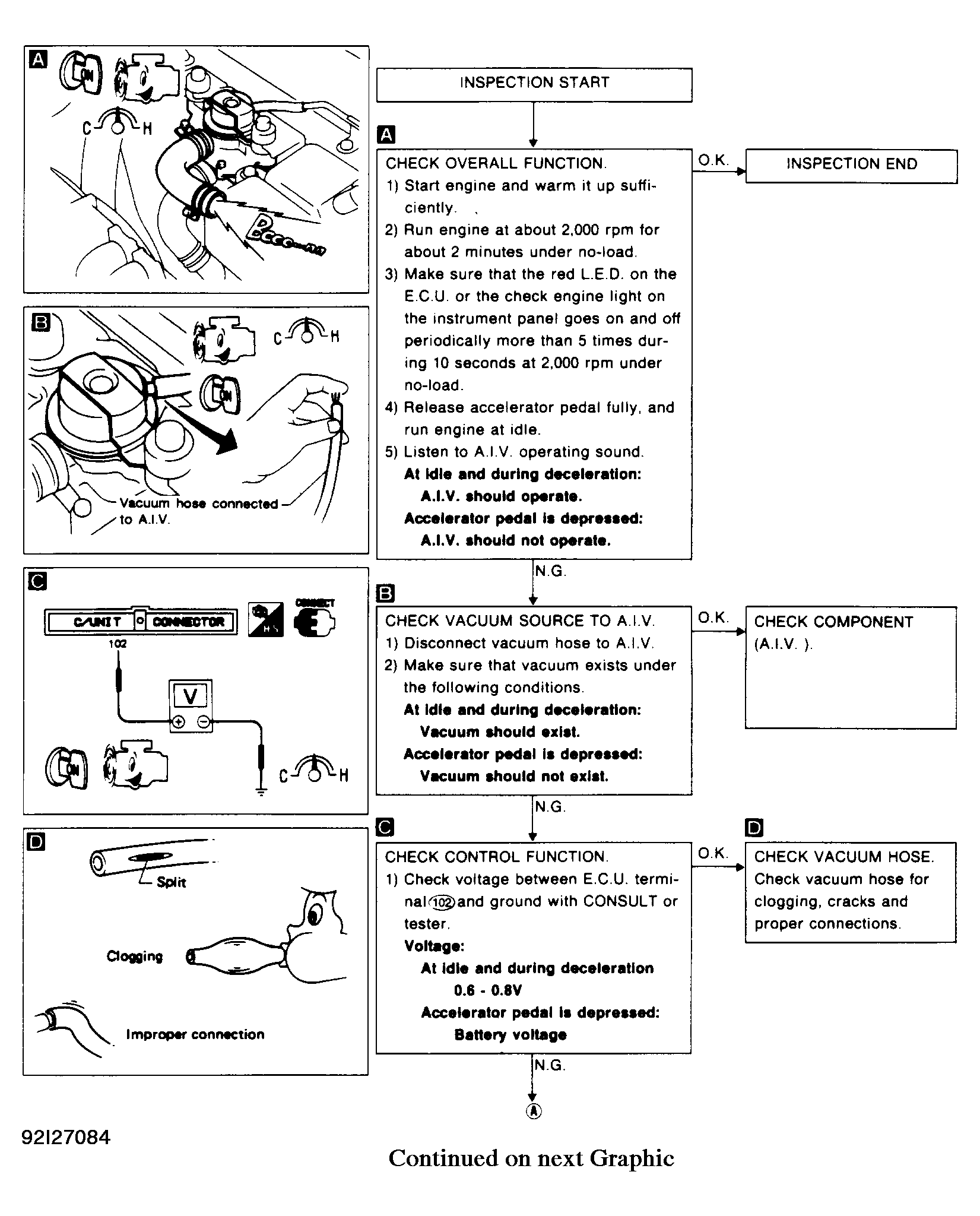

Fig 1: Air Injection Valve Flow Chart (2.0L) (1 of 2)
G92I27084Courtesy of NISSAN MOTOR CO., U.S.A.

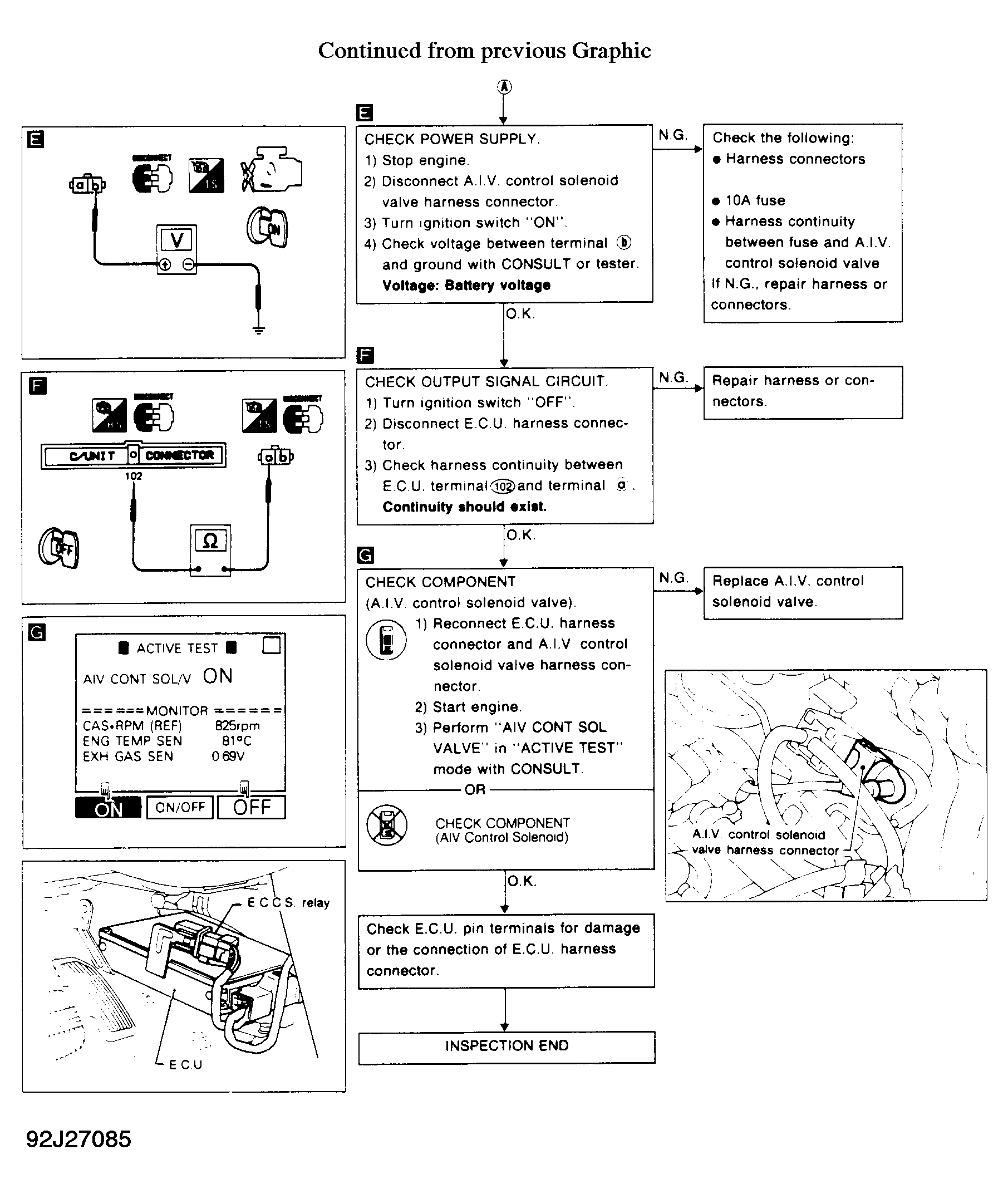

Fig 2: Air Injection Valve Flow Chart (2.0L) (2 of 2)
G92J27085Courtesy of NISSAN MOTOR CO., U.S.A.
