Air Regulator Chart
Air Regulator Chart

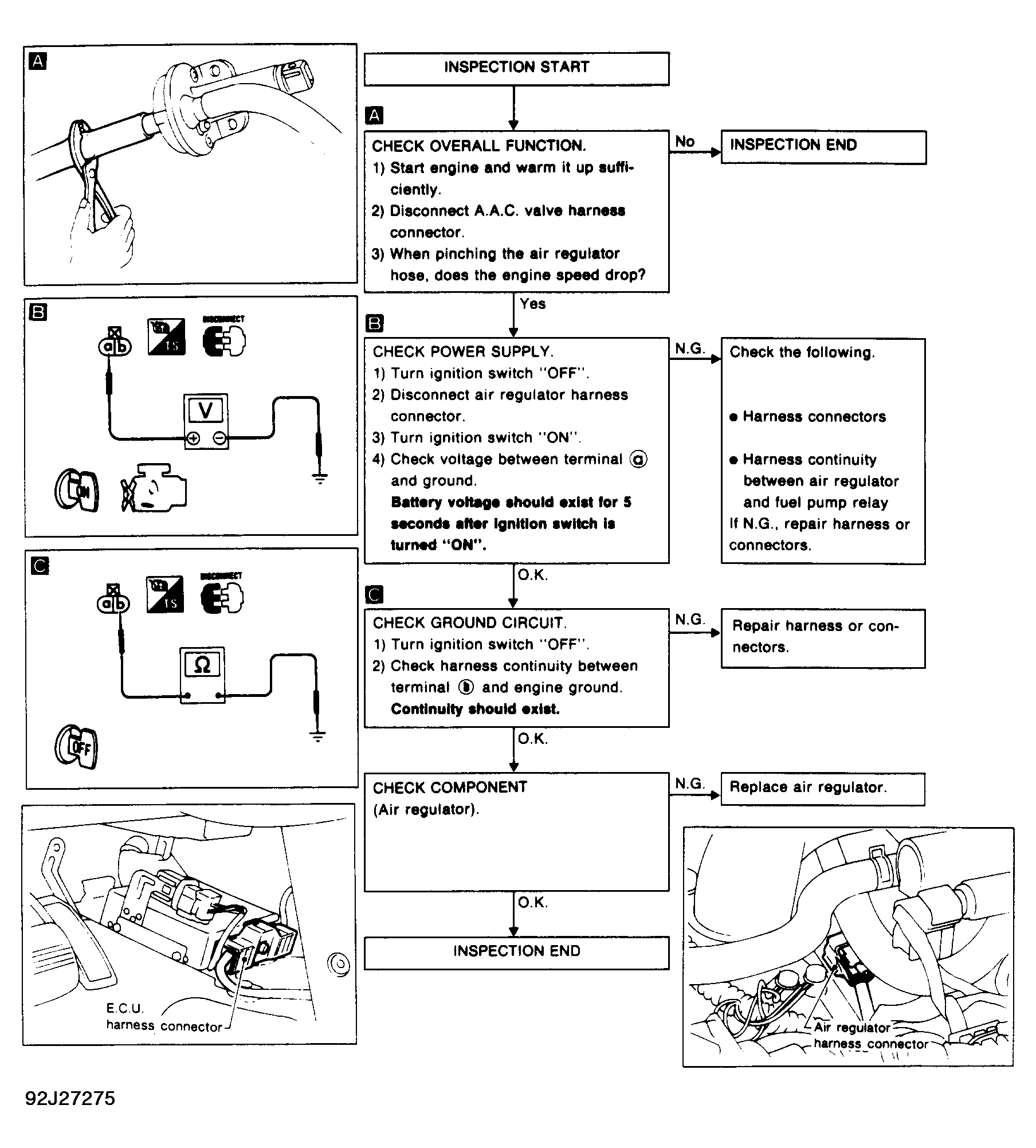

Fig 1: Air Regulator Flow Chart (1.6L)
Courtesy of NISSAN MOTOR CO., U.S.A.

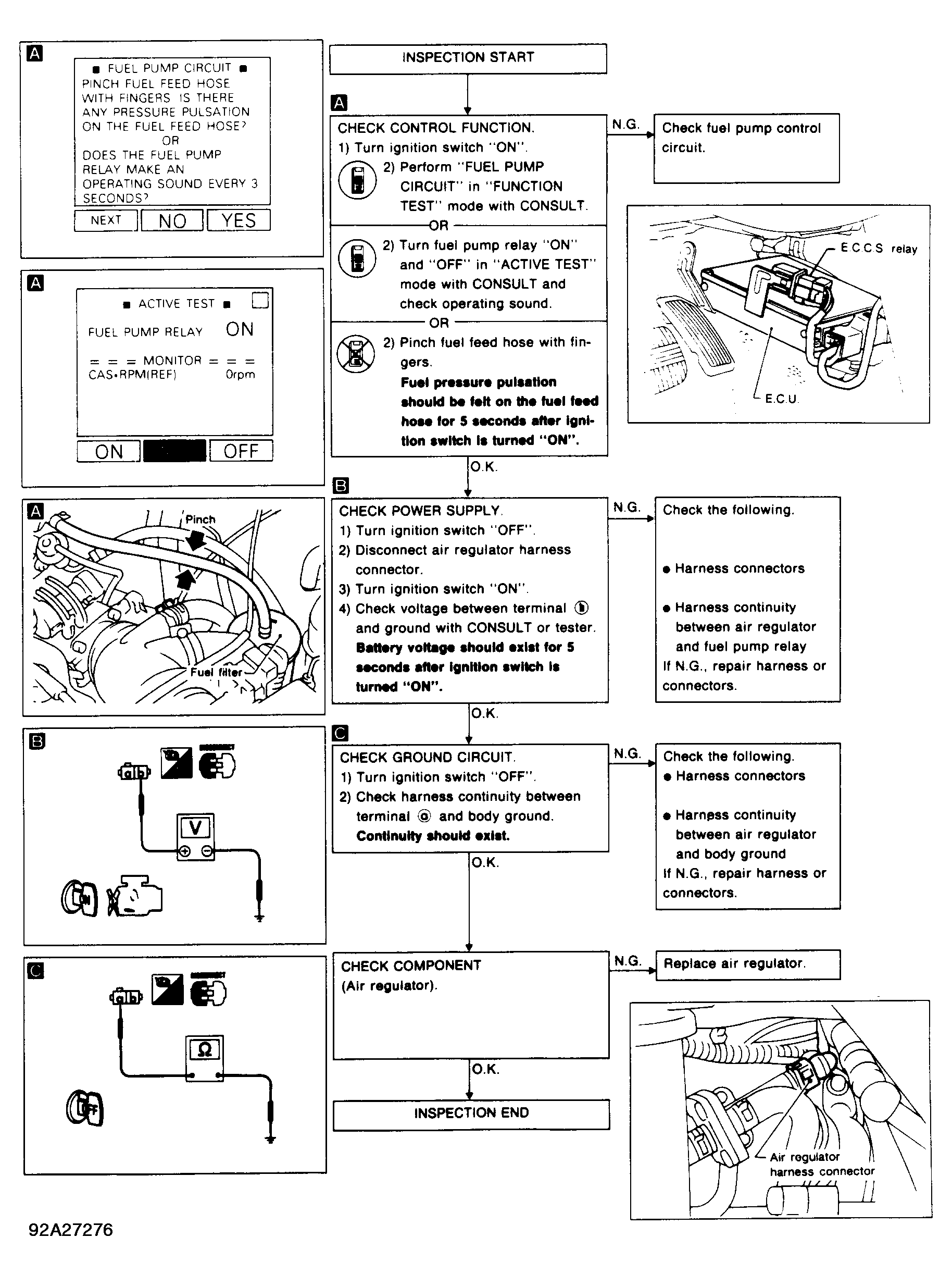

Fig 2: Air Regulator Flow Chart (2.0L)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
