Engine Controls - System/Component Tests
>>
Diagnostic Charts
>>
EGR Control Chart
EGR Control Chart

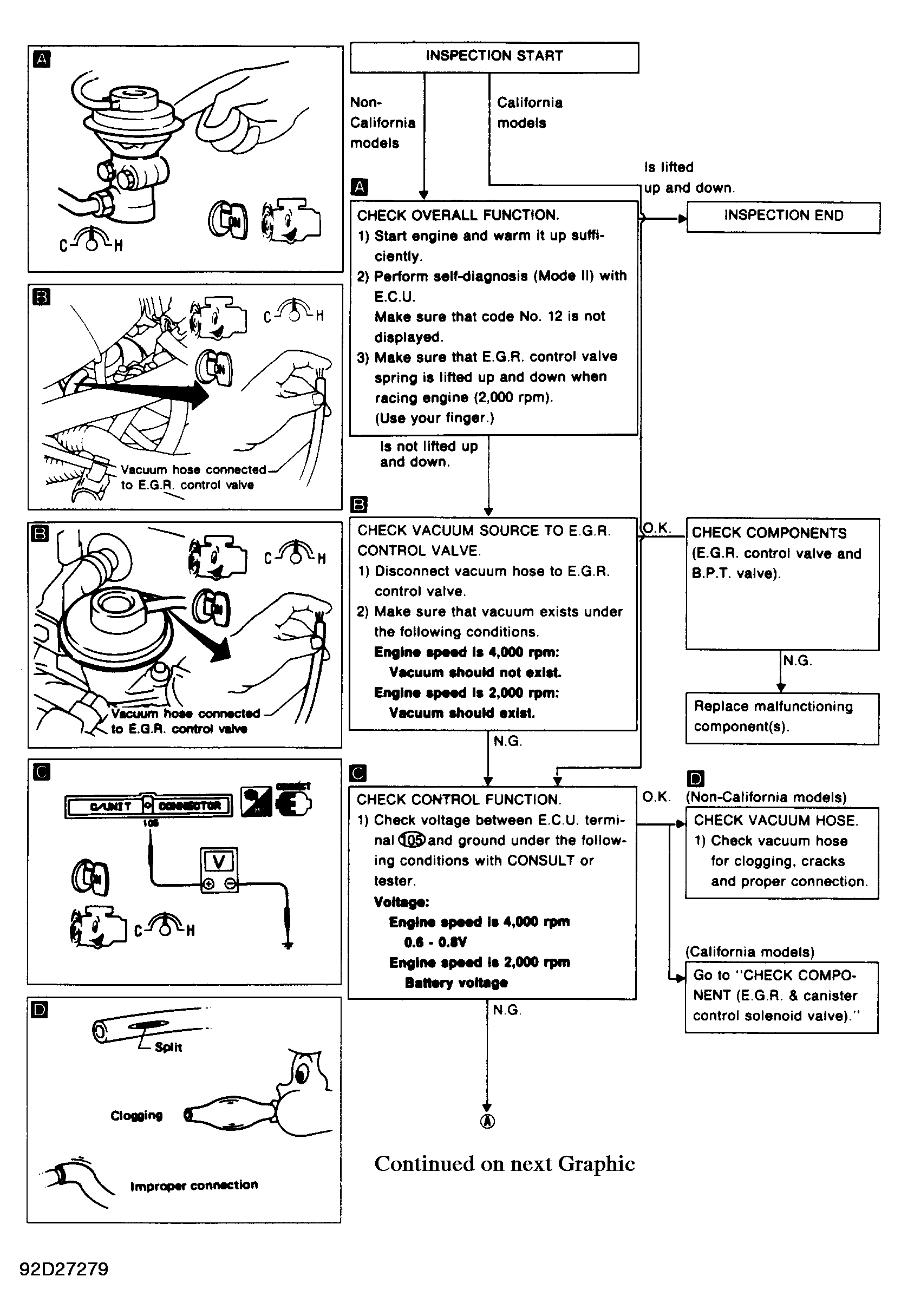

Fig 1: EGR Control Flow Chart (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

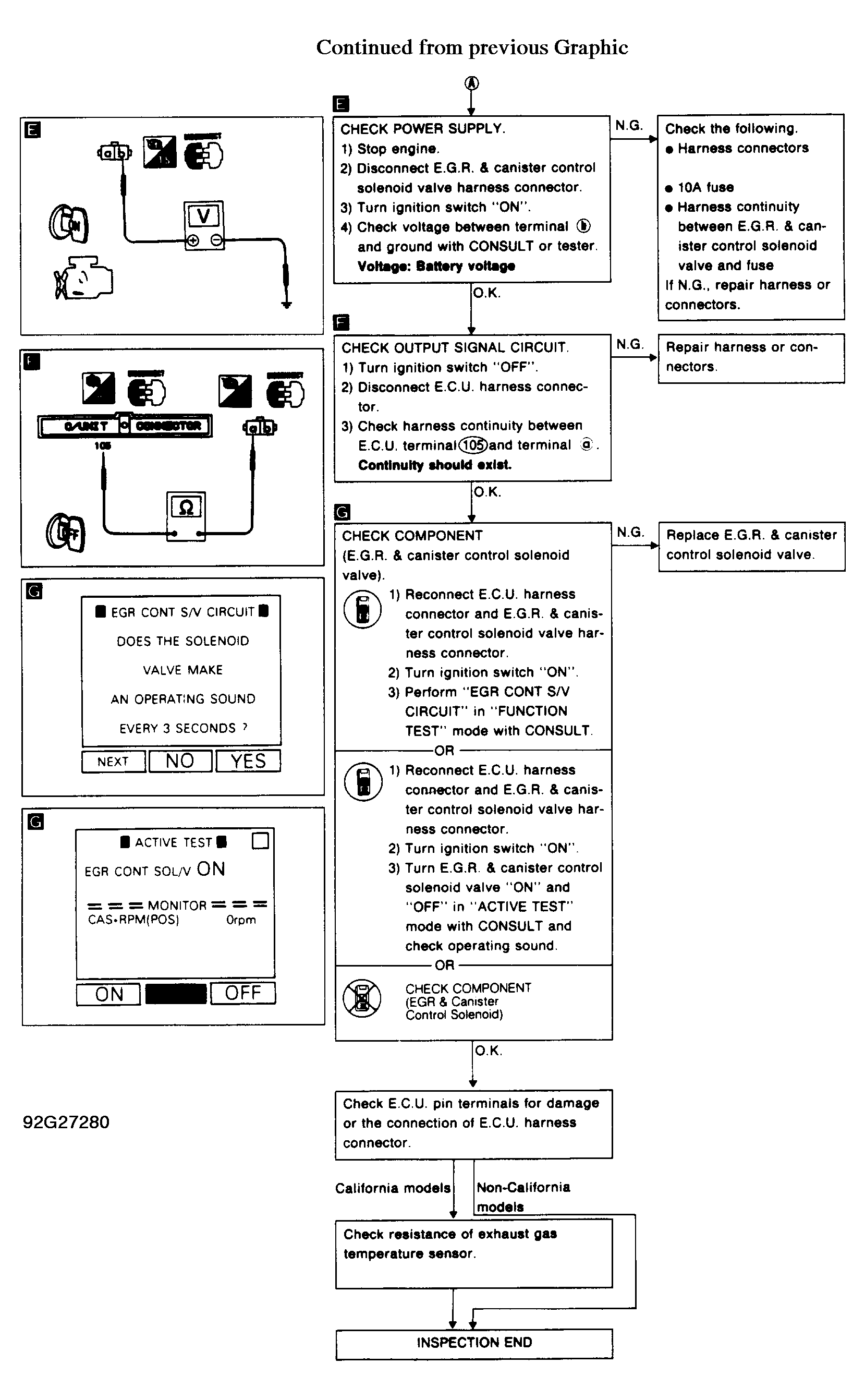

Fig 2: EGR Control Flow Chart (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
