Neutral/Inhibitor Switch Chart
Neutral/Inhibitor Switch Chart

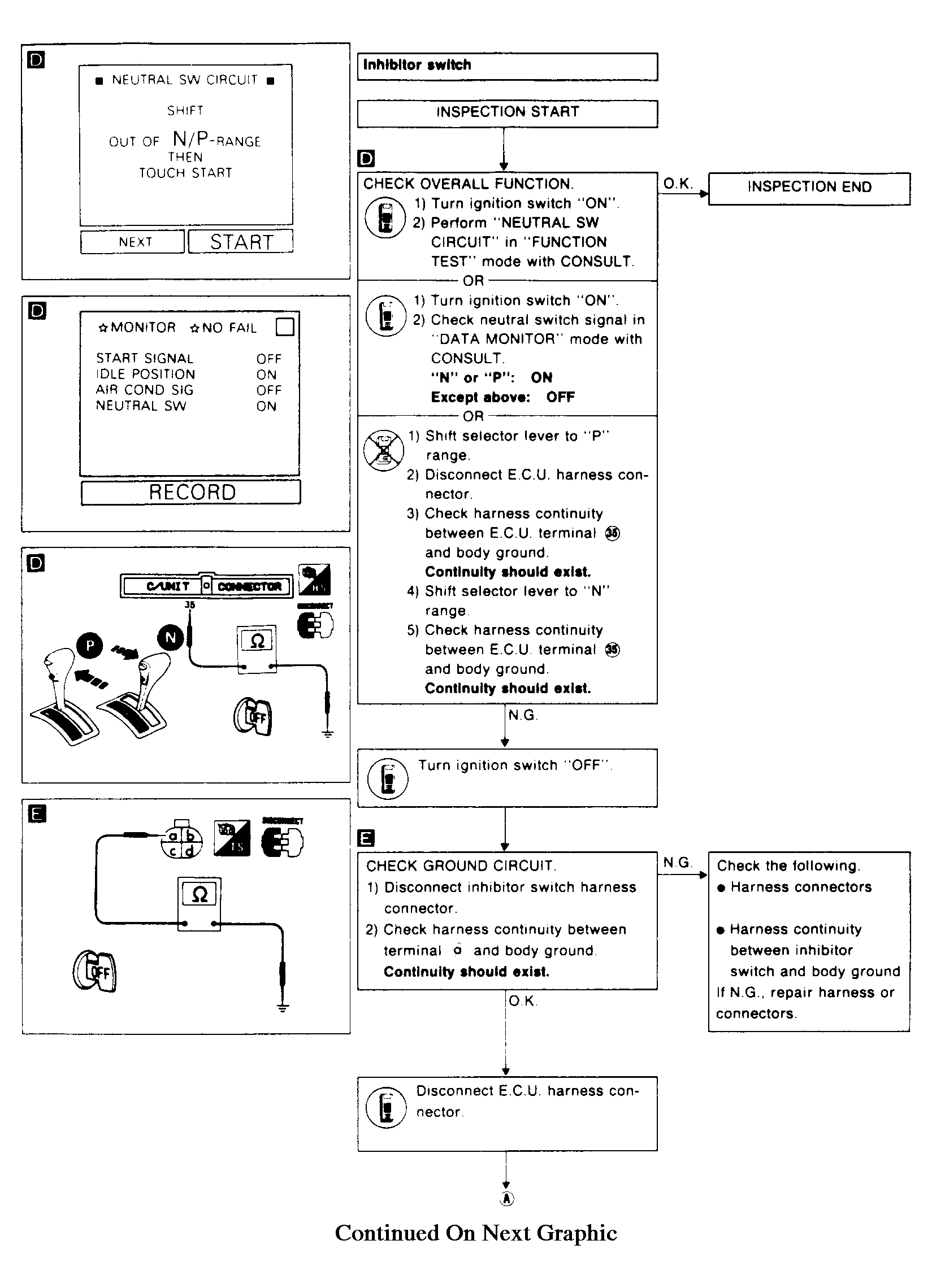

Fig 1: Neutral/Inhibitor Switch Flow Chart (1 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

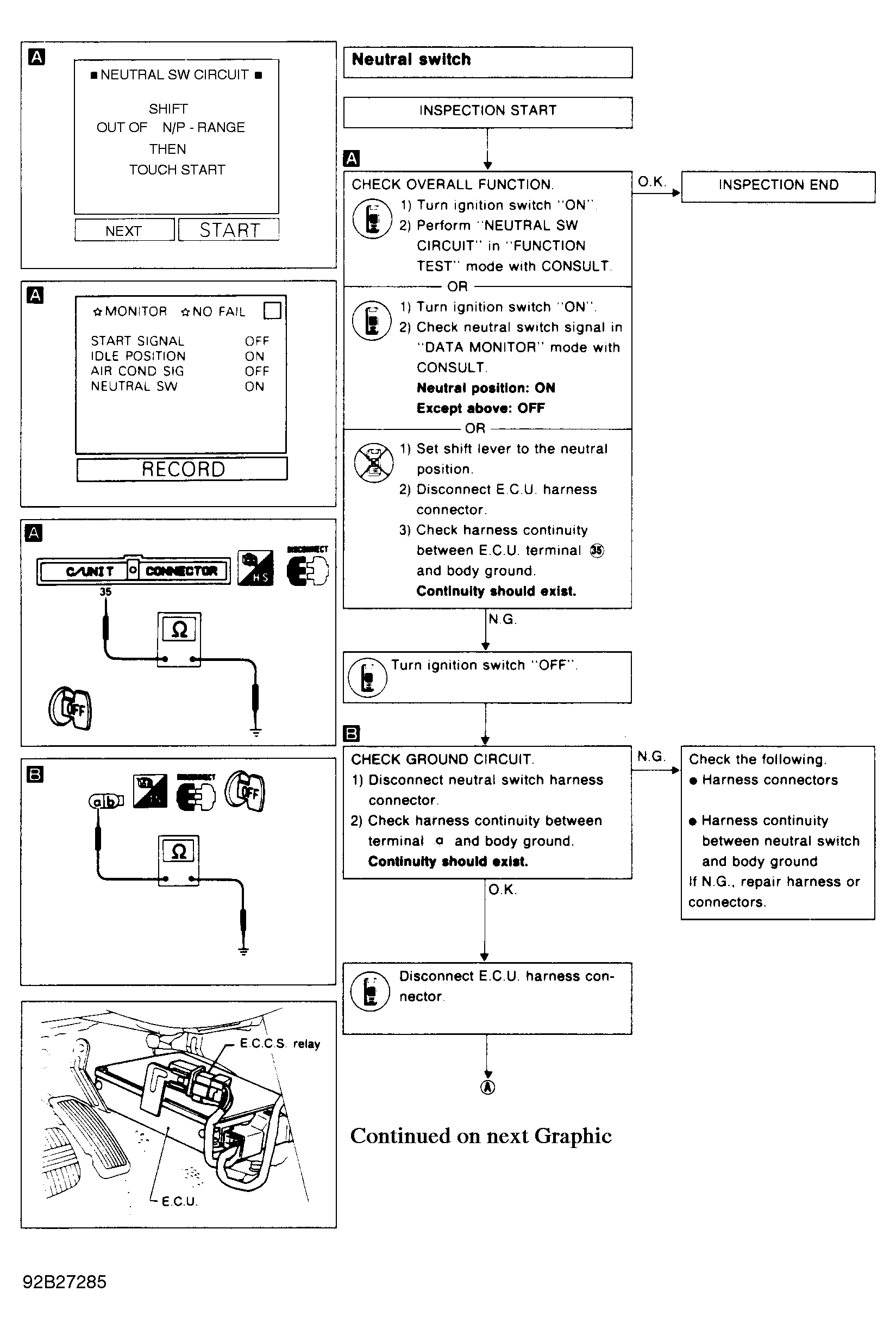

Fig 2: Neutral/Inhibitor Switch Flow Chart (2 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

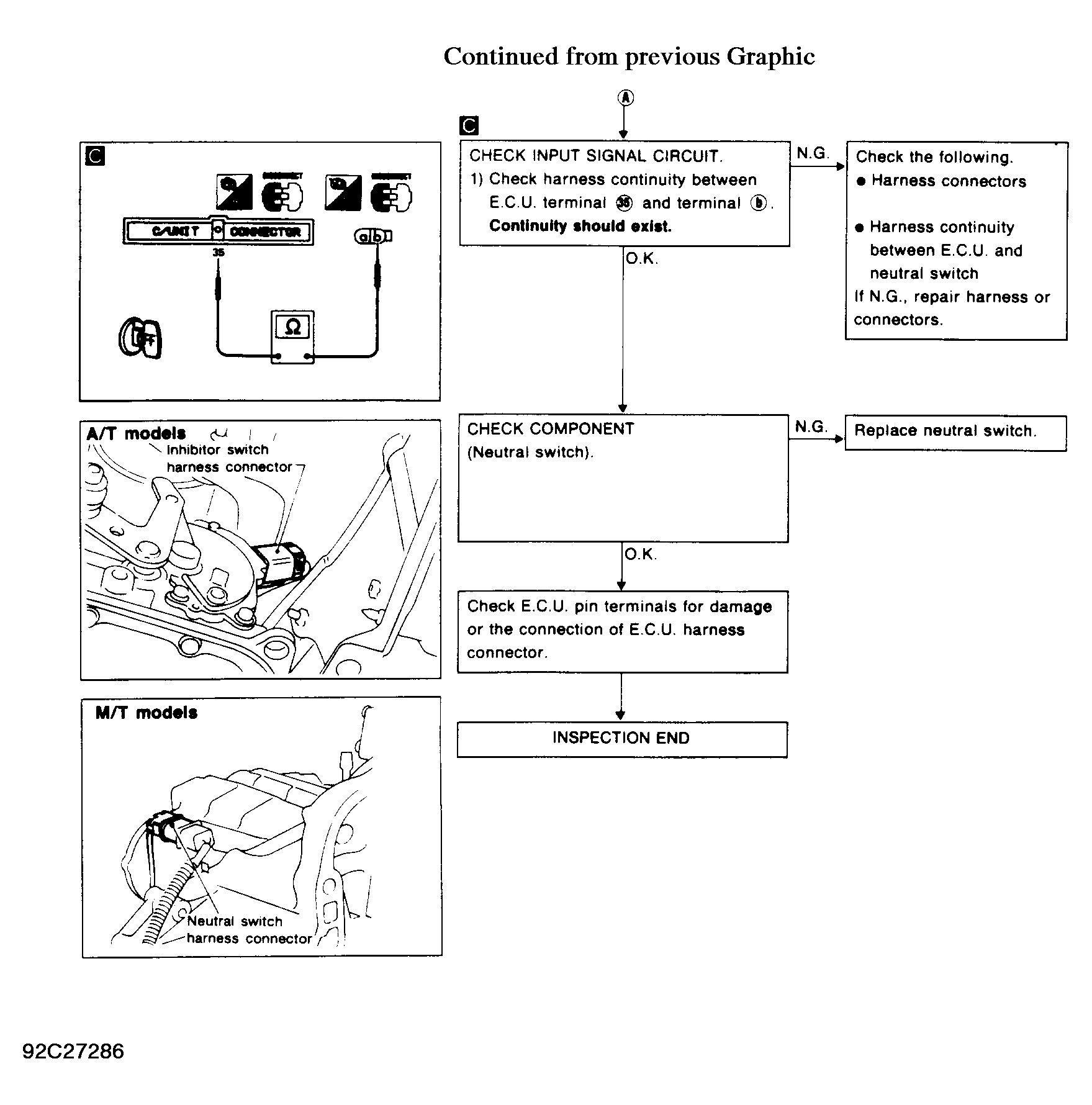

Fig 3: Neutral/Inhibitor Switch Flow Chart (3 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

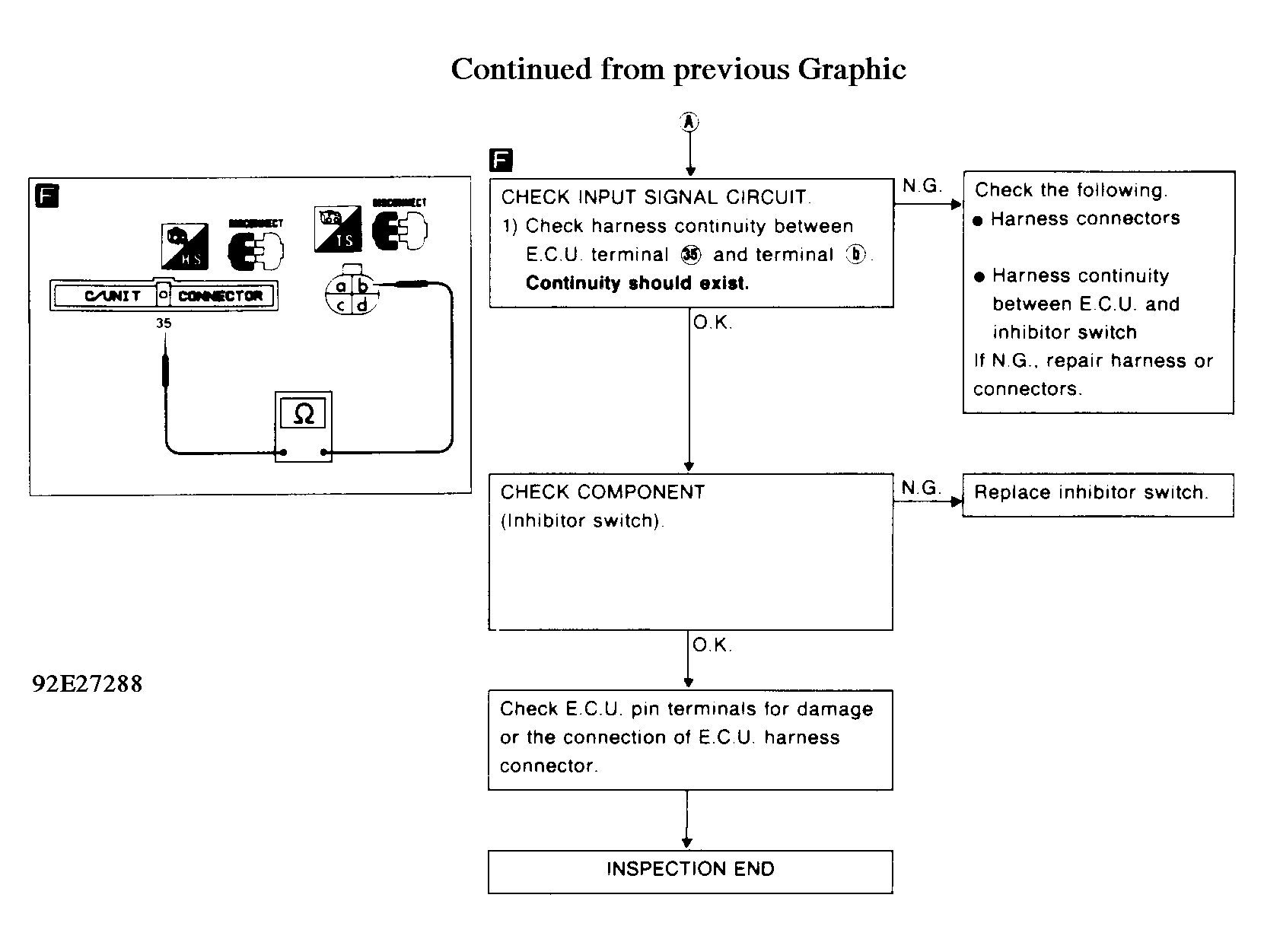

Fig 4: Neutral/Inhibitor Switch Flow Chart (3 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
