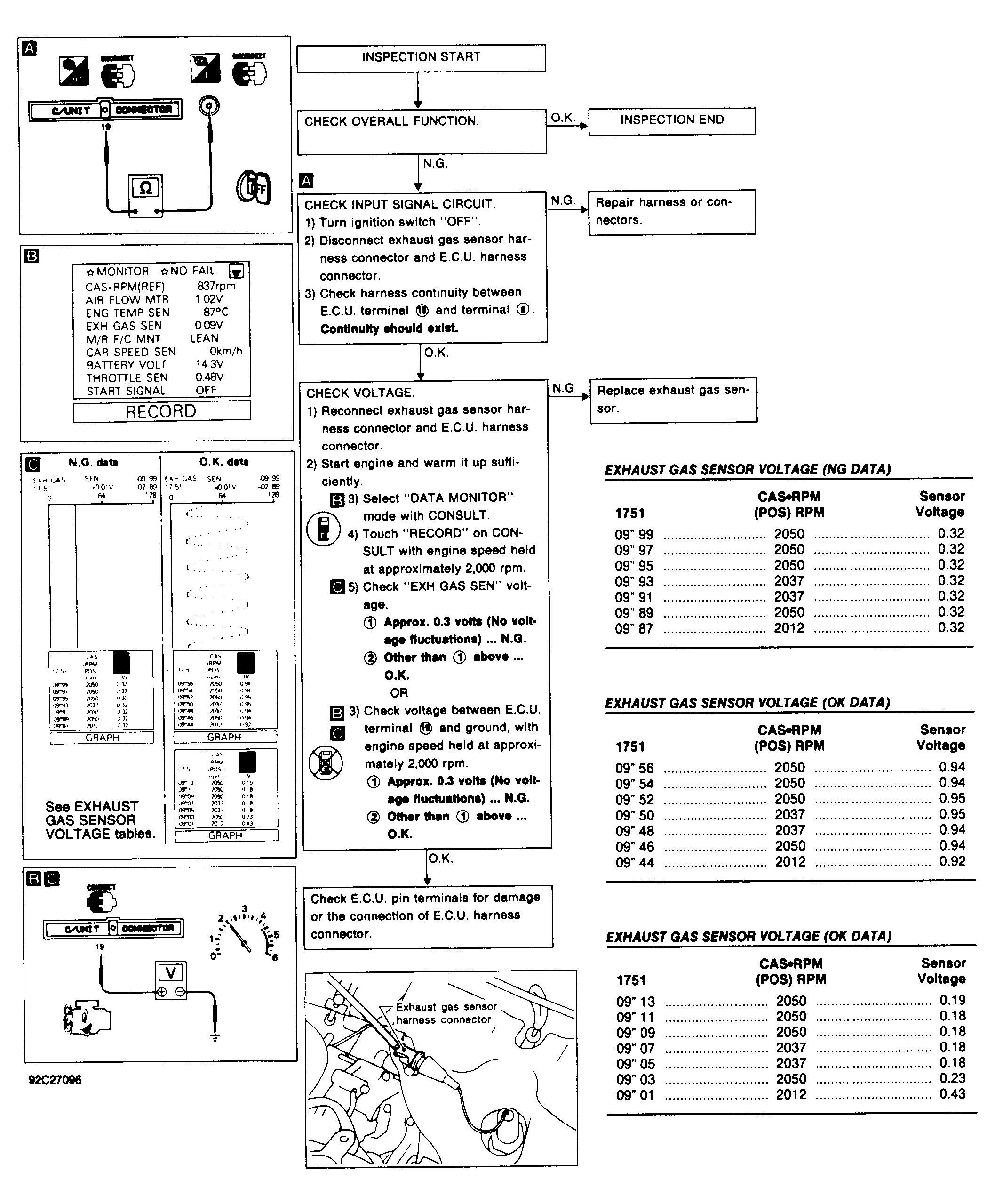

Code 33 - Oxygen Sensor (1.6L)
EXHAUST GAS SENSOR VOLTAGE (NG DATA) (1.6L)
| CAS*RPM 1751 | Sensor (POS) RPM | Voltage |
|---|---|---|
| 09" 99 | 2050 | 0.32 |
| 09" 97 | 2050 | 0.32 |
| 09" 95 | 2050 | 0.32 |
| 09" 93 | 2037 | 0.32 |
| 09" 91 | 2037 | 0.32 |
| 09" 89 | 2050 | 0.32 |
| 09" 87 | 2012 | 0.32 |
EXHAUST GAS SENSOR VOLTAGE (OK DATA) (1.6L)
| CAS*RPM 1751 | Sensor (POS) RPM | Voltage |
|---|---|---|
| 09" 56 | 2050 | 0.94 |
| 09" 54 | 2050 | 0.94 |
| 09" 52 | 2050 | 0.95 |
| 09" 50 | 2037 | 0.95 |
| 09" 48 | 2037 | 0.94 |
| 09" 46 | 2050 | 0.94 |
| 09" 44 | 2012 | 0.92 |
EXHAUST GAS SENSOR VOLTAGE (OK DATA) (1.6L)
| CAS*RPM 1751 | Sensor (POS) RPM | Voltage |
|---|---|---|
| 09" 13 | 2050 | 0.19 |
| 09" 11 | 2050 | 0.18 |
| 09" 09 | 2050 | 0.18 |
| 09" 07 | 2037 | 0.18 |
| 09" 05 | 2037 | 0.18 |
| 09" 03 | 2050 | 0.23 |
| 09" 01 | 2012 | 0.43 |
