Home >> Nissan-Datsun >> 1993 >> Sentra SE-R, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - System/Component Tests >> Computerized Engine Controls >> Notes

Computerized Engine Controls: Notes

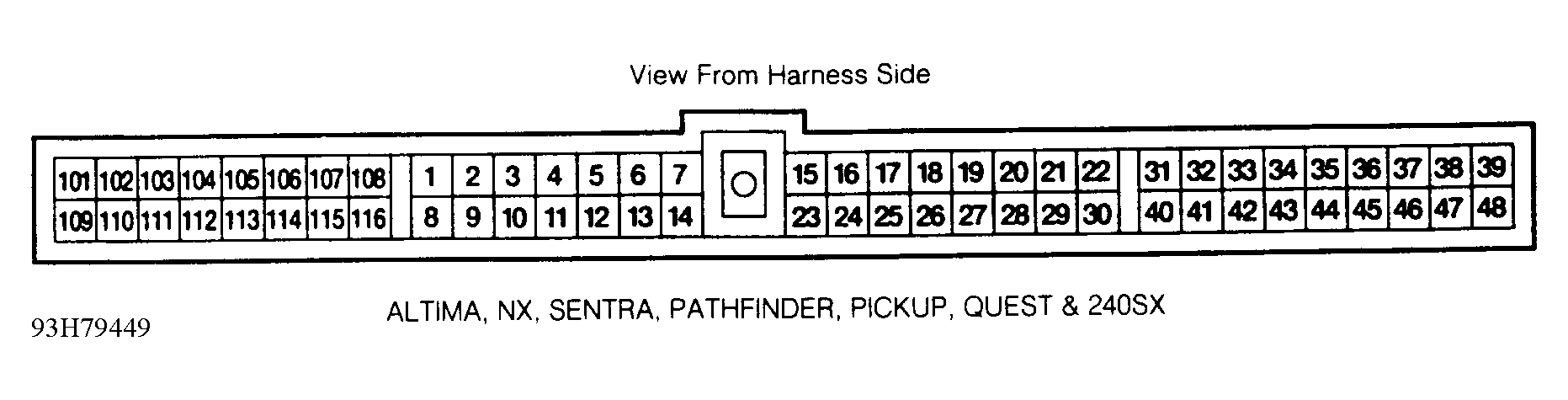

Fig 1: ECM Harness Connectors (Exc. Maxima & 300ZX)
G93H79449Courtesy of NISSAN MOTOR CO., U.S.A.

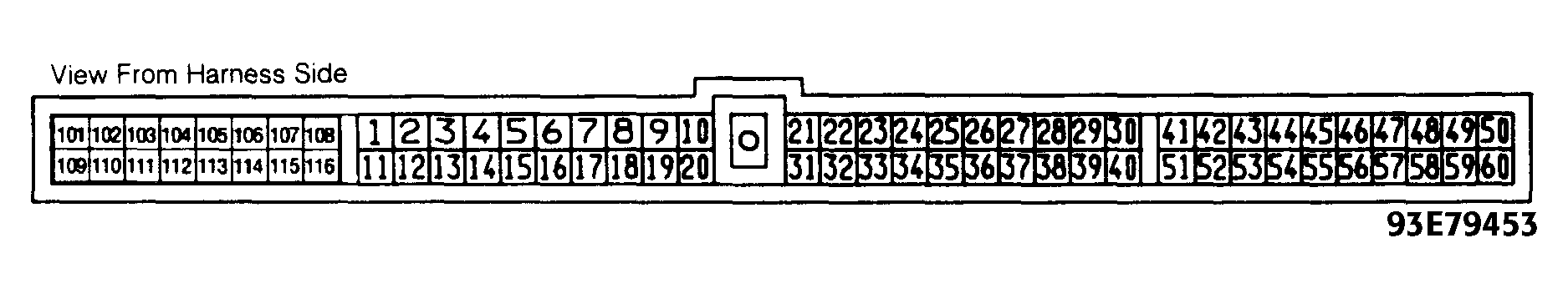

Fig 2: ECM Harness Connectors (Maxima & 300ZX)
G93E79453Courtesy of NISSAN MOTOR CO., U.S.A.
