Condenser Fan Motor Test

Apply battery voltage across fan motor connector terminals. Fan motor should operate. If fan motor does not operate, replace fan motor.

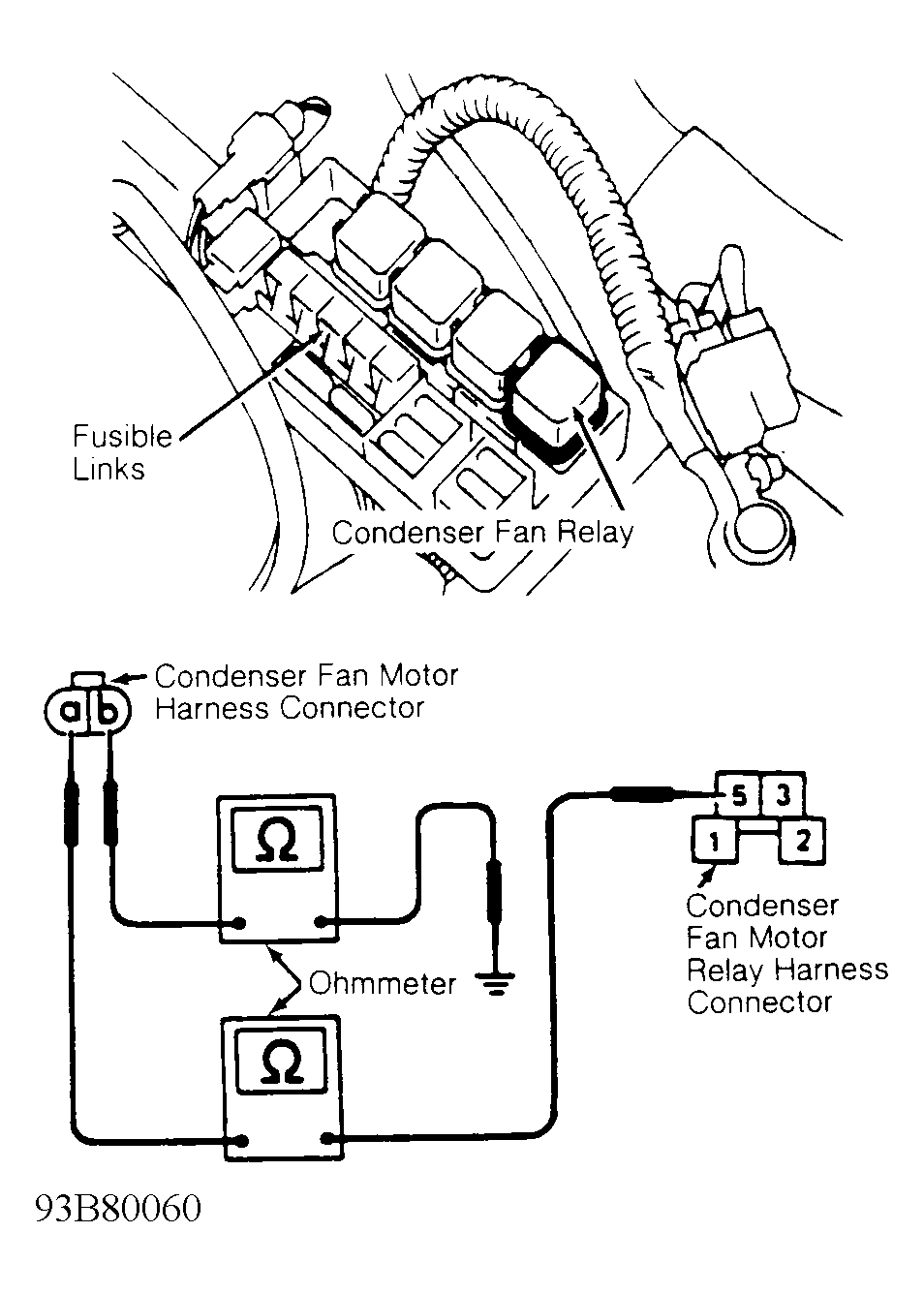

Fig 1: Location Condenser Fan Circuit (240SX)

Courtesy of NISSAN MOTOR CO., U.S.A.

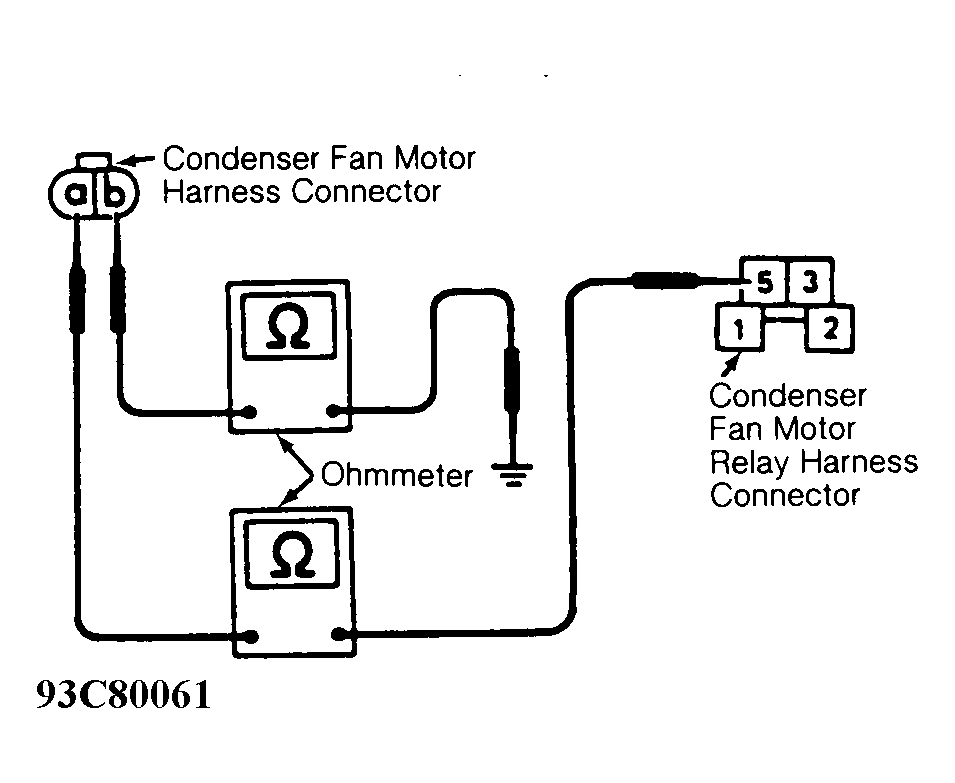

Fig 2: Testing Condenser Fan Circuit (240SX)

Courtesy of NISSAN MOTOR CO., U.S.A.
