Schematic (Without Power Door Locks)

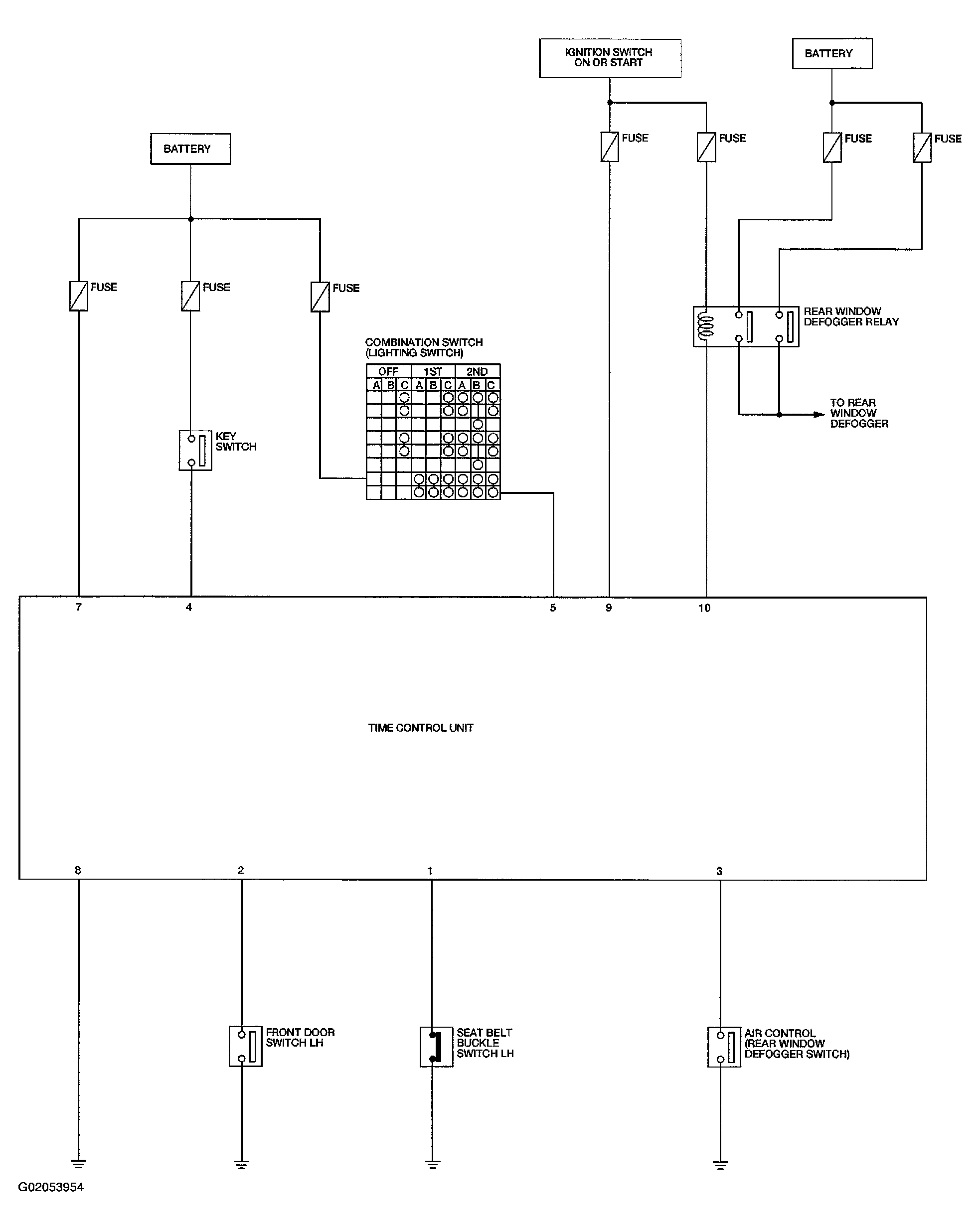

Fig 1: Time Control Unit (Without Power Door Locks)

G02053954

Courtesy of NISSAN MOTOR CO., U.S.A.
