Remote Keyless Entry System: Schematic

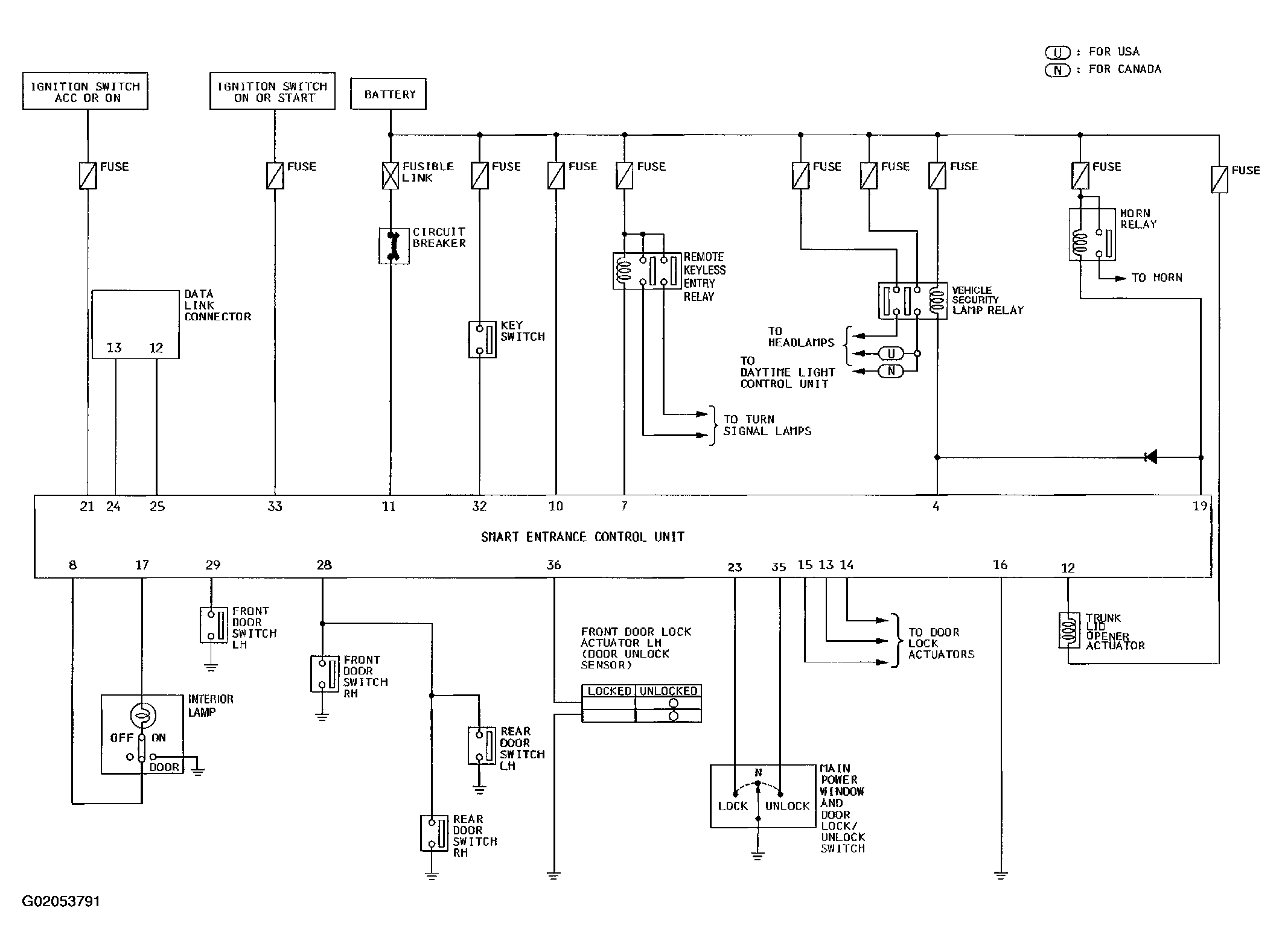

Fig 1: Identifying Remote Keyless Entry System-Schematic

G02053791

Courtesy of NISSAN MOTOR CO., U.S.A.
