Quarter Window: Removal

  1. Remove the rear door finisher. Refer to DOOR FINISHER .
  2. Lower the rear window.
  3. Remove two screws securing rear glass, then remove rear glass.

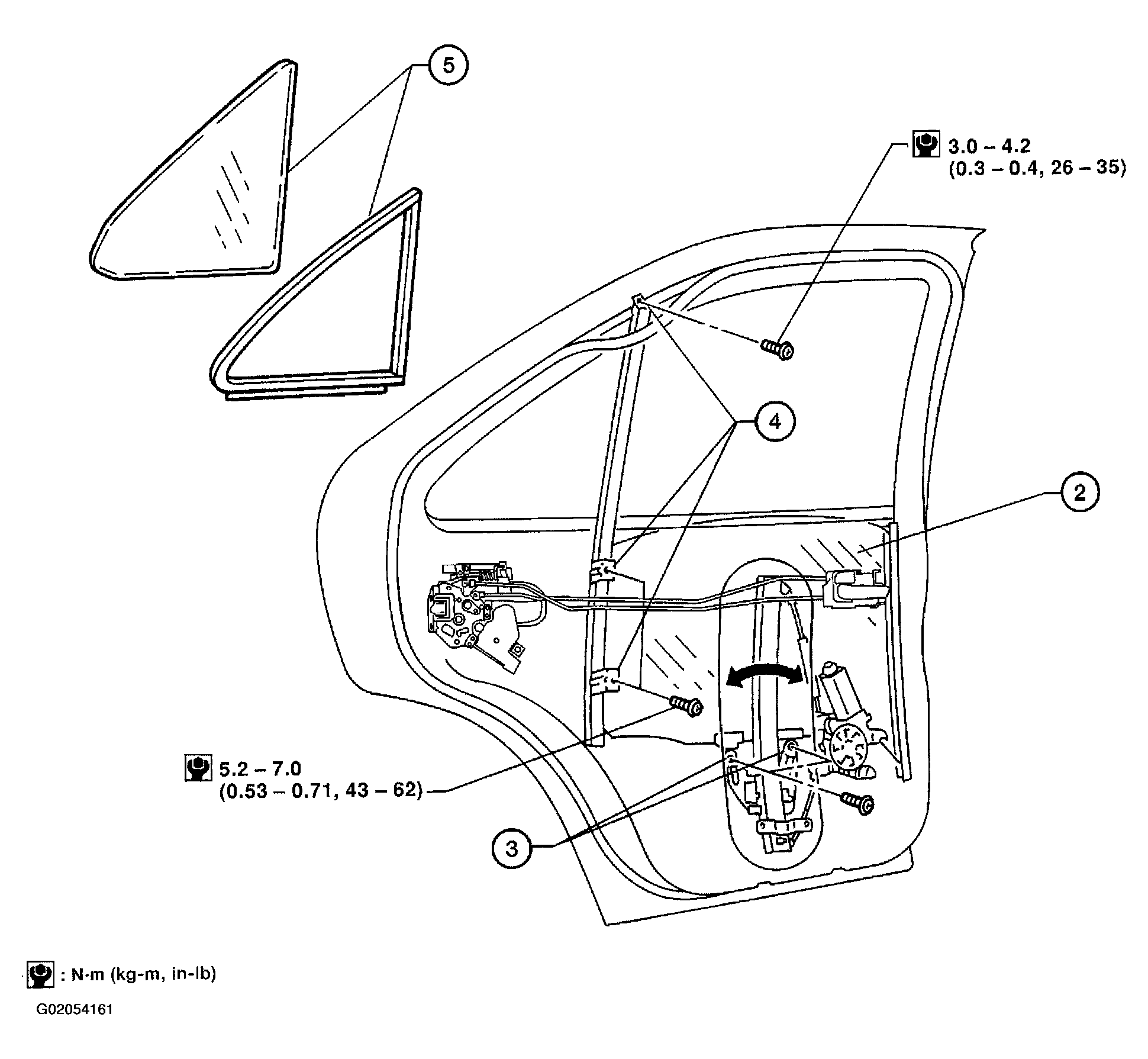

    Fig 1: Removing Quarter Glass
    G02054161Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove two bolts and one top screw securing rear door center sash, then remove rear door center sash.
  5. Remove quarter glass and rubber seal.
