Charging Systems: Generator: Construction

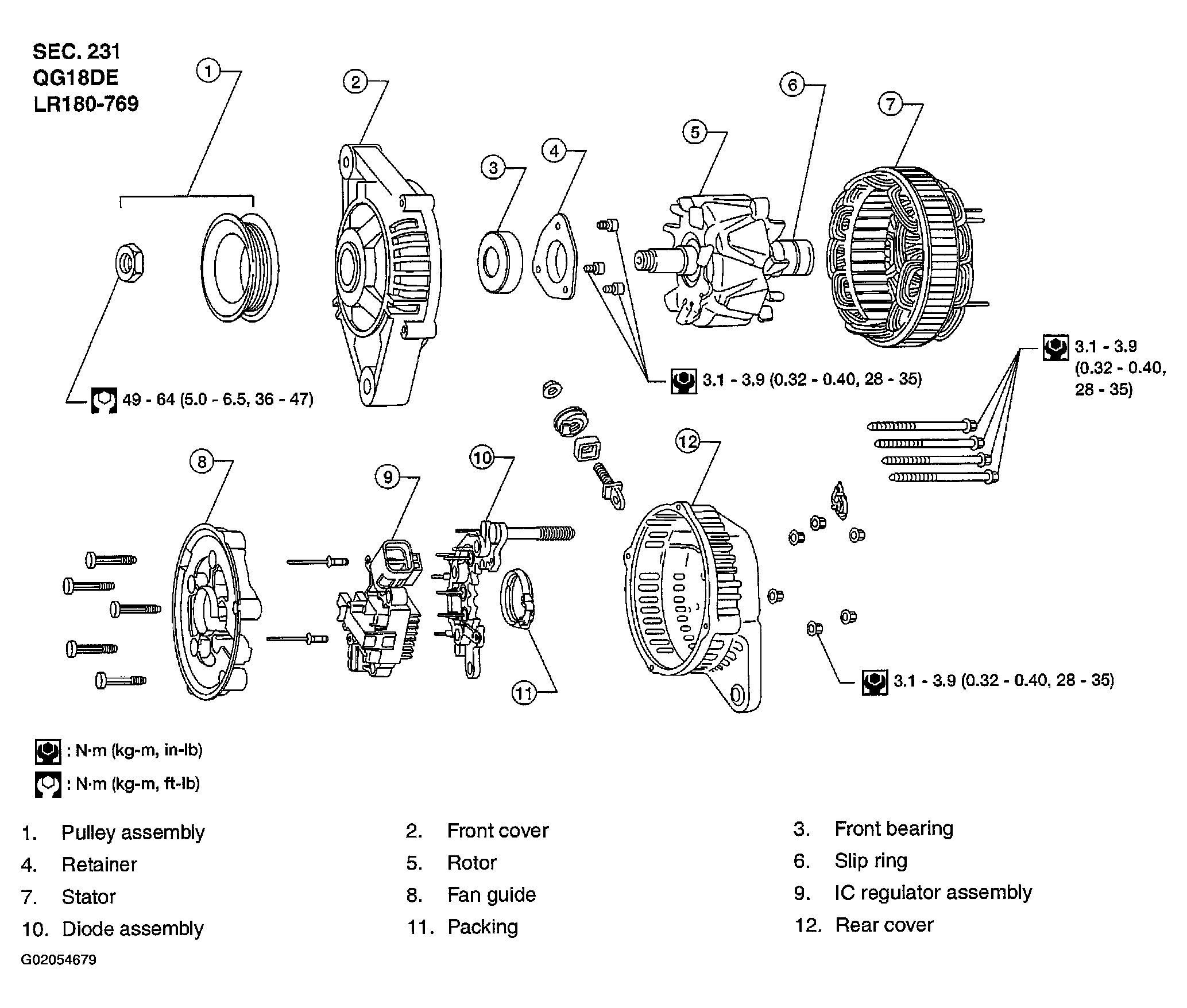

Fig 1: Exploded View of Generator (QG18DE)

G02054679

Courtesy of NISSAN MOTOR CO., U.S.A.

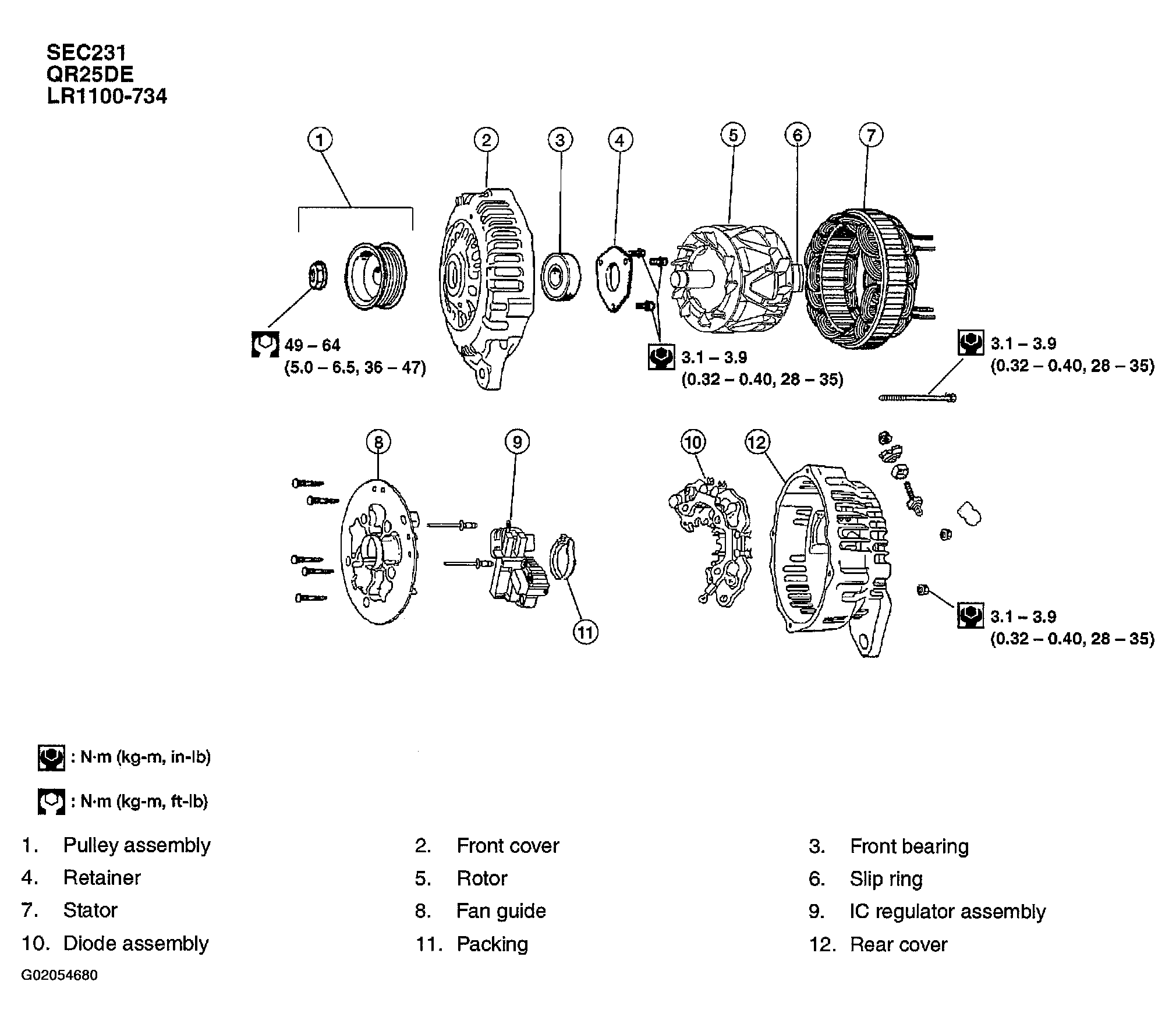

Fig 2: Exploded View of Generator (QR25DE)

G02054680

Courtesy of NISSAN MOTOR CO., U.S.A.
