Home >> Nissan-Datsun >> 2002 >> Sentra SE-R, Automatic >> Repair and Diagnosis >> Electrical >> Charging Systems >> Generator >> Removal And Installation >> Qr25DE >> Removal

Removal And Installation: Qr25DE: Removal

  1. Disconnect the negative battery cable.
  2. Remove the front/right-side engine undercover.
  3. Remove the drive belt.
  4. Disconnect the generator harness connectors.
  5. Disconnect the engine ground wire from the top mount.
  6. Remove the generator upper and lower mount bolts.
  7. Set the generator aside and remove the generator top mount.

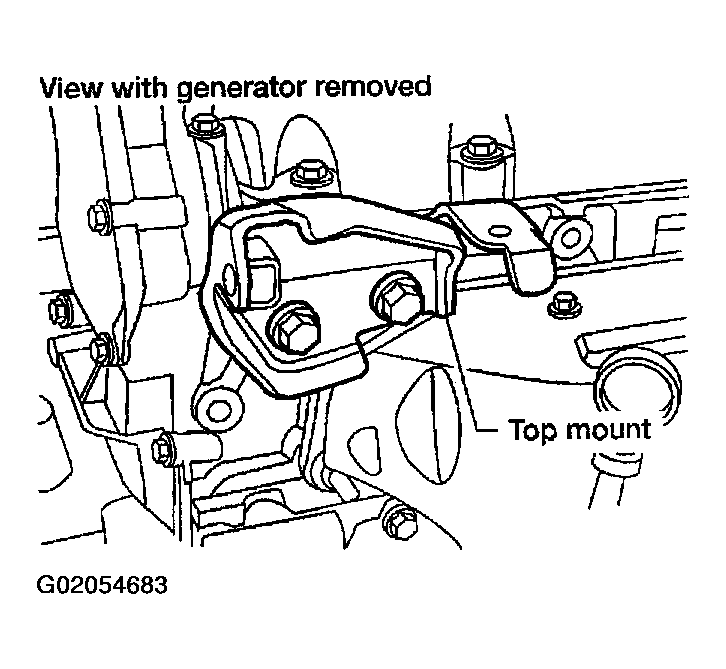

    Fig 1: Removing Generator Top Mount.
    G02054683Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Slide the generator out and remove.
