Home >> Nissan-Datsun >> 2002 >> Sentra SE-R, Automatic >> Repair and Diagnosis >> Electrical >> Charging Systems >> Generator >> Removal And Installation >> SR20DE >> Installation

Removal And Installation: SR20DE: Installation

To install, reverse the removal procedure.

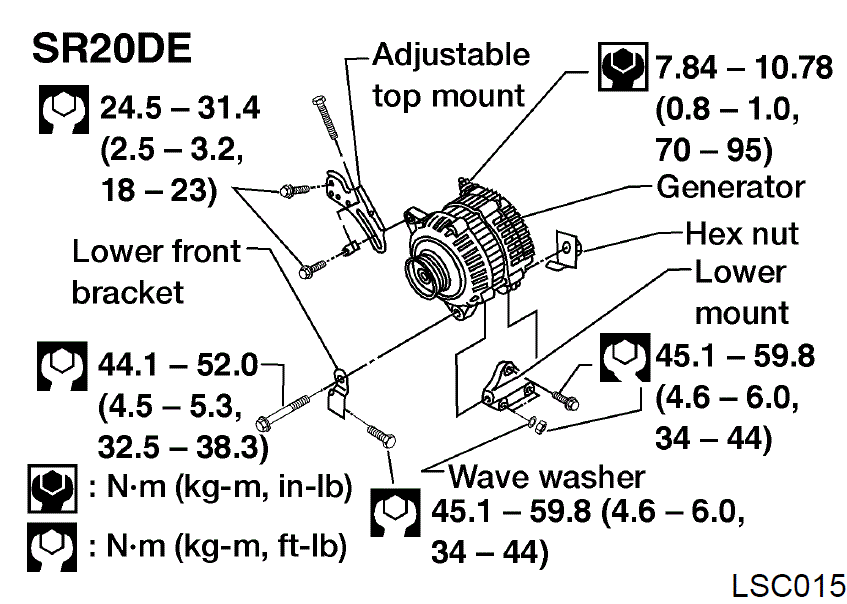

Fig 1: Installing Generator (SR20DE)

G00558871

Courtesy of NISSAN MOTOR CO., U.S.A.
